ENGINE REPAIR 6A-65
DISMANTLING AND ASSEMBLY OF THE
VACUUM PUMP (DEPRESSOR)

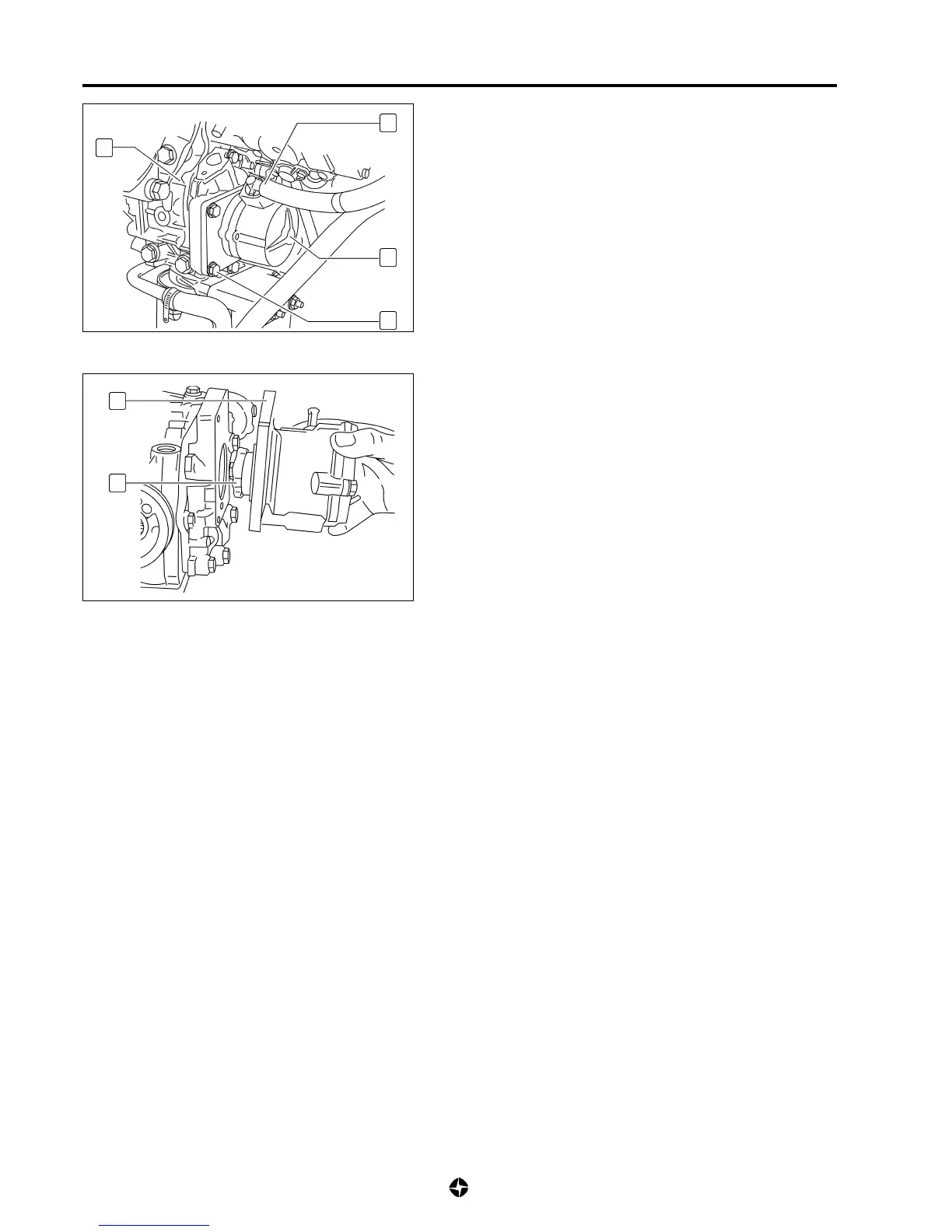

Dismantling
1) Disconnect battery.
2) Disconnect vacuum tube (1).
3) Dismantle screws (3) fixing vacuum pump (2) to body of the
auxiliary organs group.(4).
4) Withdraw vacuum pump (2) with dragging gasket (5) and
impermeability gasket.
Assembly
1) Clean the coupling contact areas between the vacuum pump
and the auxiliary organs group. Fit a new impermeabilizing
gasket on the pump lodging and place vacuum pump with
dragging gasket.
2) Assemble fixing screws and tighten them to the specified
tightening torque.
Tightening torque for screws fixing vacuum pump:
M8: 1,8 Kg-m (18 Nm)
M6: 1,2 Kg-m (12 Nm)
3) Connect firmly vacuum tube.
