6A-96 ENGINE REPAIR

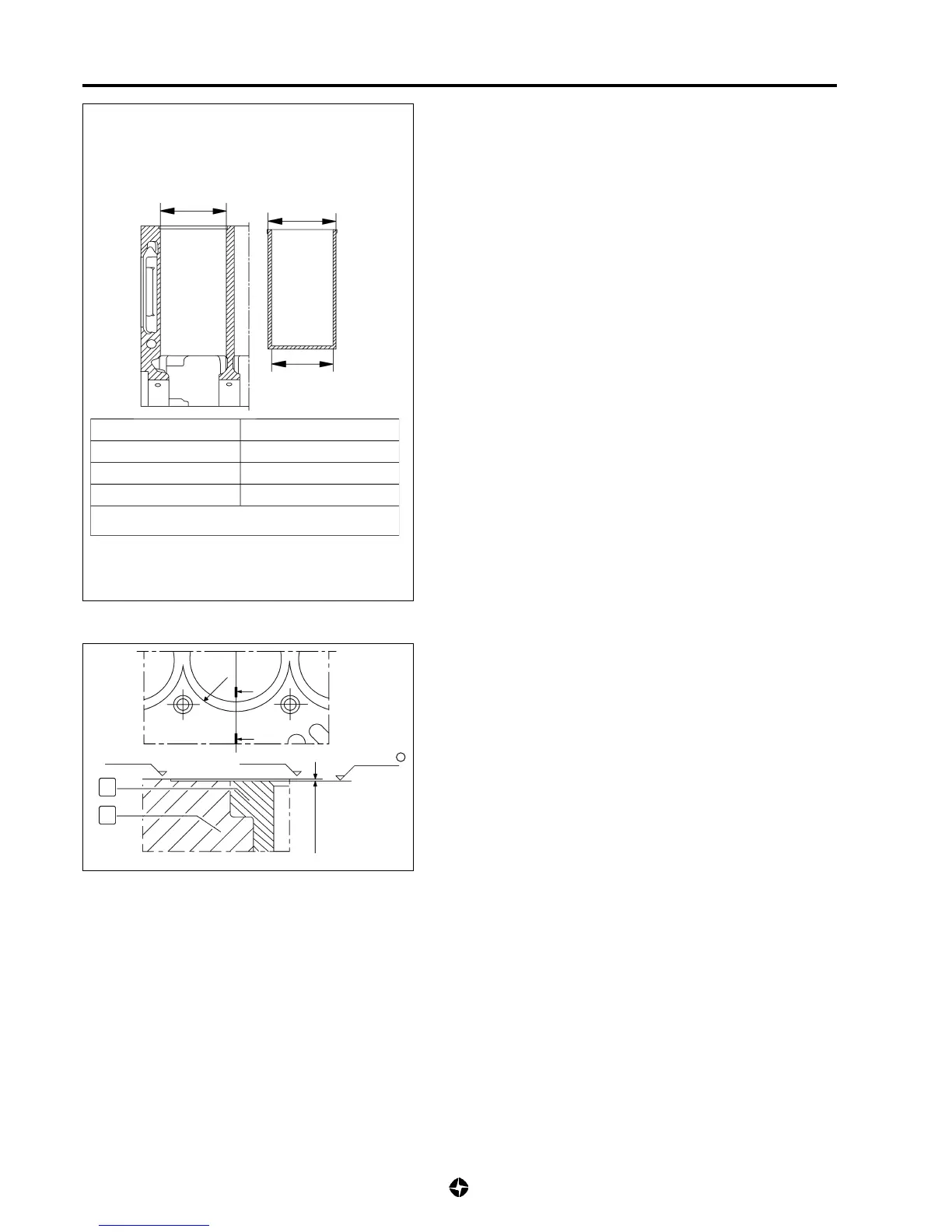

4) Install the liners over mechanized cylinders using a hydraulic
press . Noting to the following steps:
• Control values specified in the annexed table.
• Do not use grease, oil or other lubricant to get in the
sheatings.
• While putting liners notice that after 80mm fitting necessary
pressure is like 130 Kg while at the end it must be
around 500 Kg.
³
³
• Be sure of perfect support of lined borders over the
mechanized tip (8) of cylinder. The liner must not overhang
more than 0.005 mm of milling plane.
X
Y
Z
X = D
m
Y = Ø external shirt
Z = Ø internal shirt
*
97,390 ÷ 97,450
97,470 ÷ 97,500
92,700 ÷ 92,900
94,402 ÷ 94,432
* Bench mark to obtain in the diameter of shirts after the
automated one final.
* * Plane bases ** Plane milling Ø 111
7
8
WT=10 - PASSO 5
*
1,6
**
R
a
< 1,0 µm- +
A
A
0,005 max
SECTION A-A
