MANUAL TRANSMISSION 7A-7

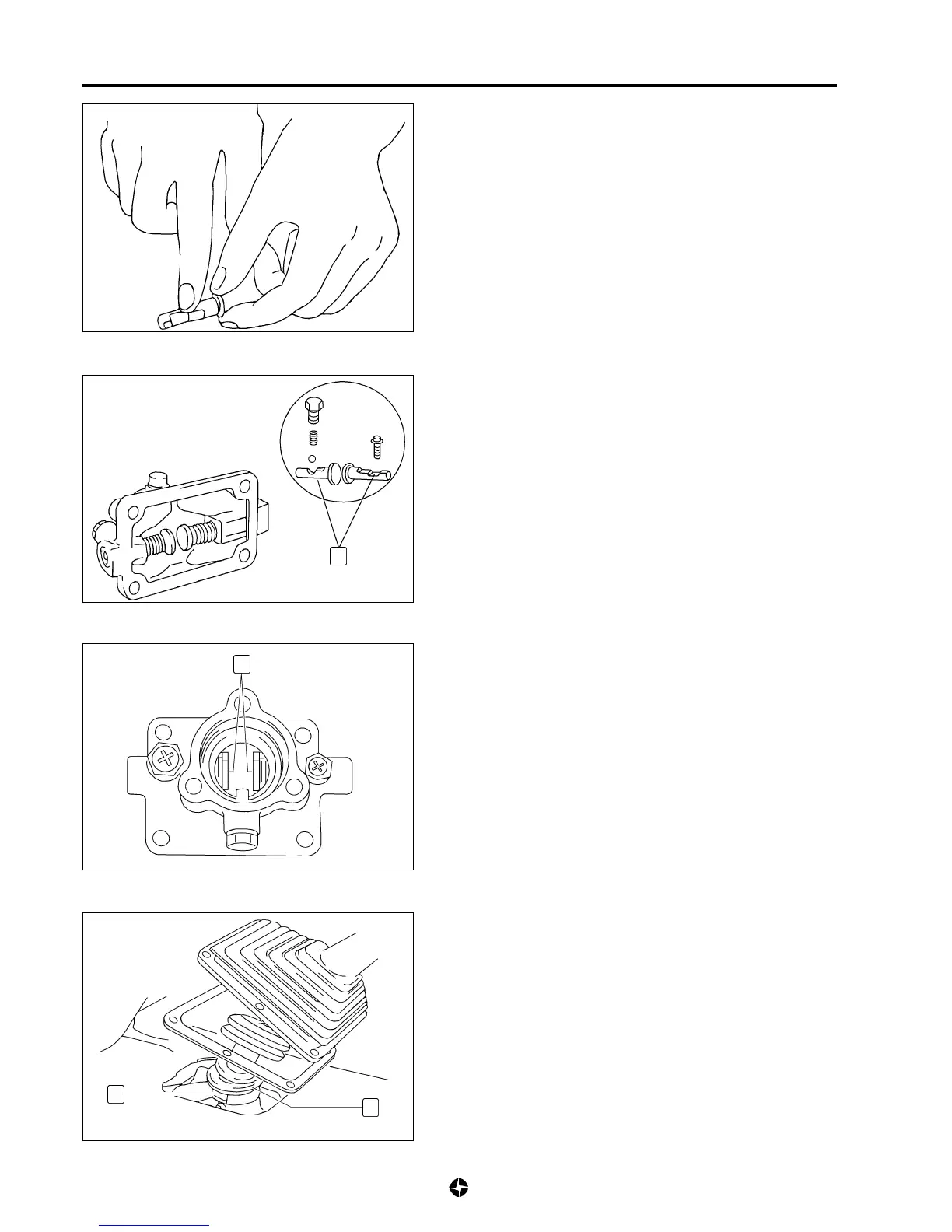

6) Fit the low speed selection spring pin in the gear box and
tighten the positioning screw while pushing the spring pin.
Install the guide pin for reverse speed in the box and fit the
positioning ball firmly on the spring pin groove.
12
NOTE:
To install each guide pin, make sure that the flat surface
(12) of the pin point faces upwards (towards the gear
lever).
5) If you replace the spring pins (11), apply grease to the surface
before installing them in the gear lever box.
Assembly
1) Apply recommended grease to the lever seating zone.
2) Install the boot fitting new belts and tightening firmly.
3) Fit the rest of the components in reverse order to dismantling,
noting the indicated torque.
Torque for plate screws:
0,6 Kg-m (6 Nm)
3
7
11
