MANUAL TRANSMISSION 7A-17
24 25
26
27

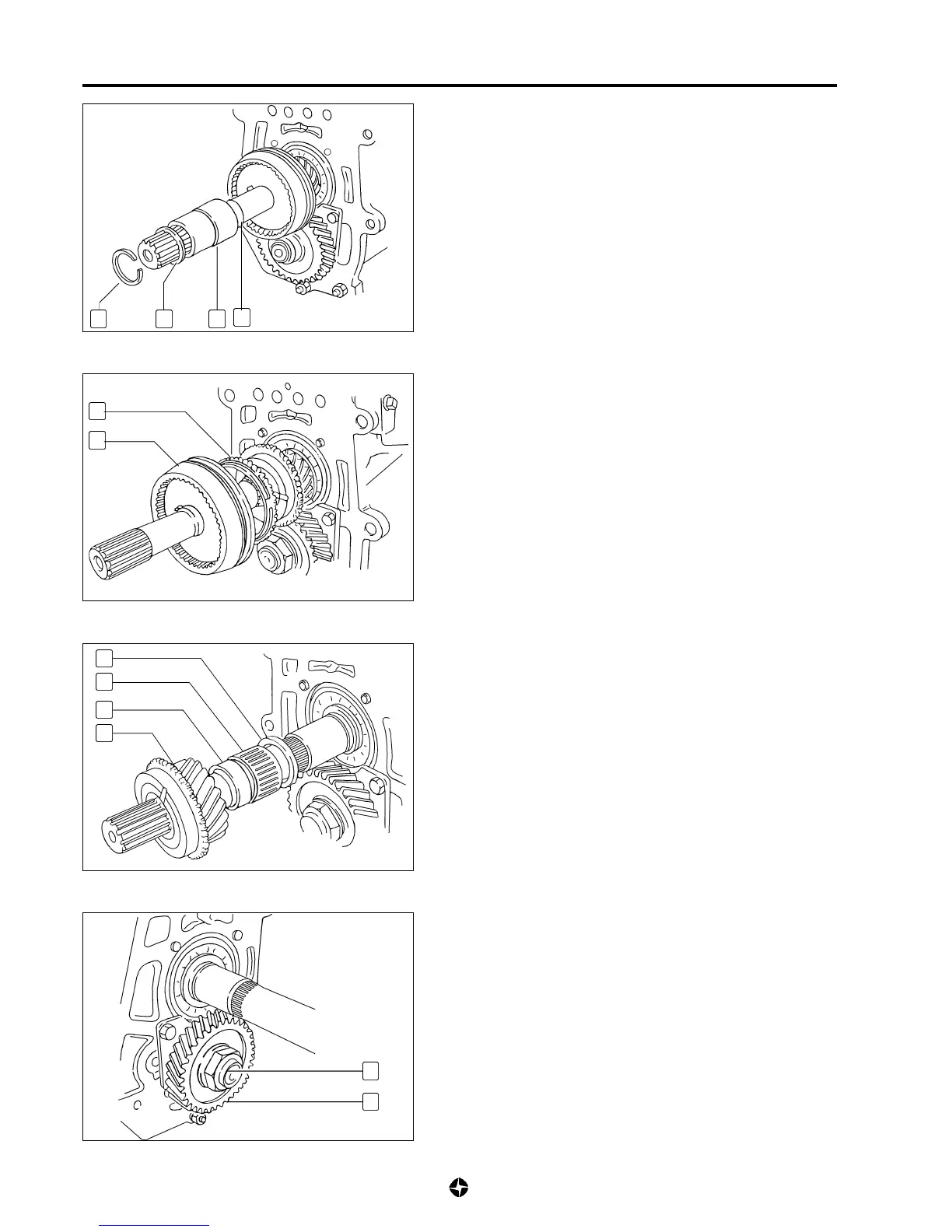

25) Remove 5th gear synchro assembly (29) and the synchro
cone (28).
28
29
26) Remove:
• 5th speed driven gear (30)
• Spacer (31)
• Bearing (32)
• Thrust washer (33)
NOTE:
To remove the nut which holds in place the 5th gear
drive gear (constant contact) , select two speeds at the
same time, this blocks the gears.
30
31
32
33
Removal 5th gear and synchro
23) Remove snap ring (24) from the rear part of the main shaft.
24) Remove shim (25), seal closing bush (26) and the inner
closing "O" ring (27).
27) Remove the nut (34), having already removed its brake, and
take out the drive gear (35).
34
35
