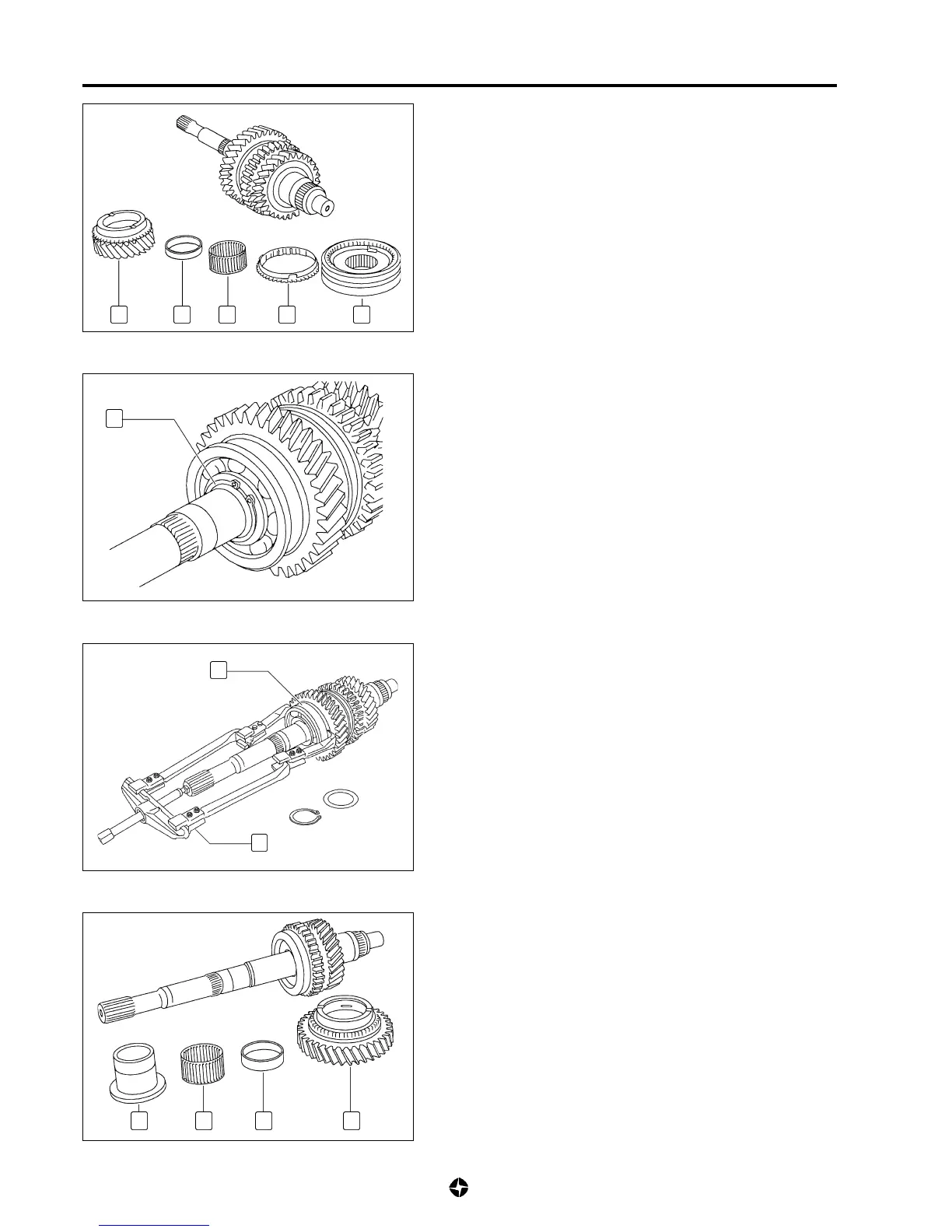

MANUAL TRANSMISSION 7A-21
47)
Remove:
• 3rd and 4th gear synchro (57).
• Synchro hub (58).
• 3rd gear (59).
• Spacer (60).
• Needle roller bearing (61).
59
60
61
58
57
By the rear
4
8
)
Remove clip (62) and fitting washer
.
62
49
)
Using a universal extractor (C) remove bearing (63) as shown.
63
C
50)
Remove:
• 1st gear (64)
• Bearing bush (65)
• Needle roller bearing (66)
• Spacer bush (67)
65
66
67
64
468
