DIFFERENTIALS 7E-15
REAR DIFFERENTIAL REPAIR
Dismantling
1) Extract the rear differential group (see 4B-3).
NOTE:
It is essential to identify with marks those pieces which
are going to work together as well as the assembly
position.
2) Proceed to dismantle the rear differential group in the same
manner you did for the front differential group, (see7E-6),
taking into account the following remarks:

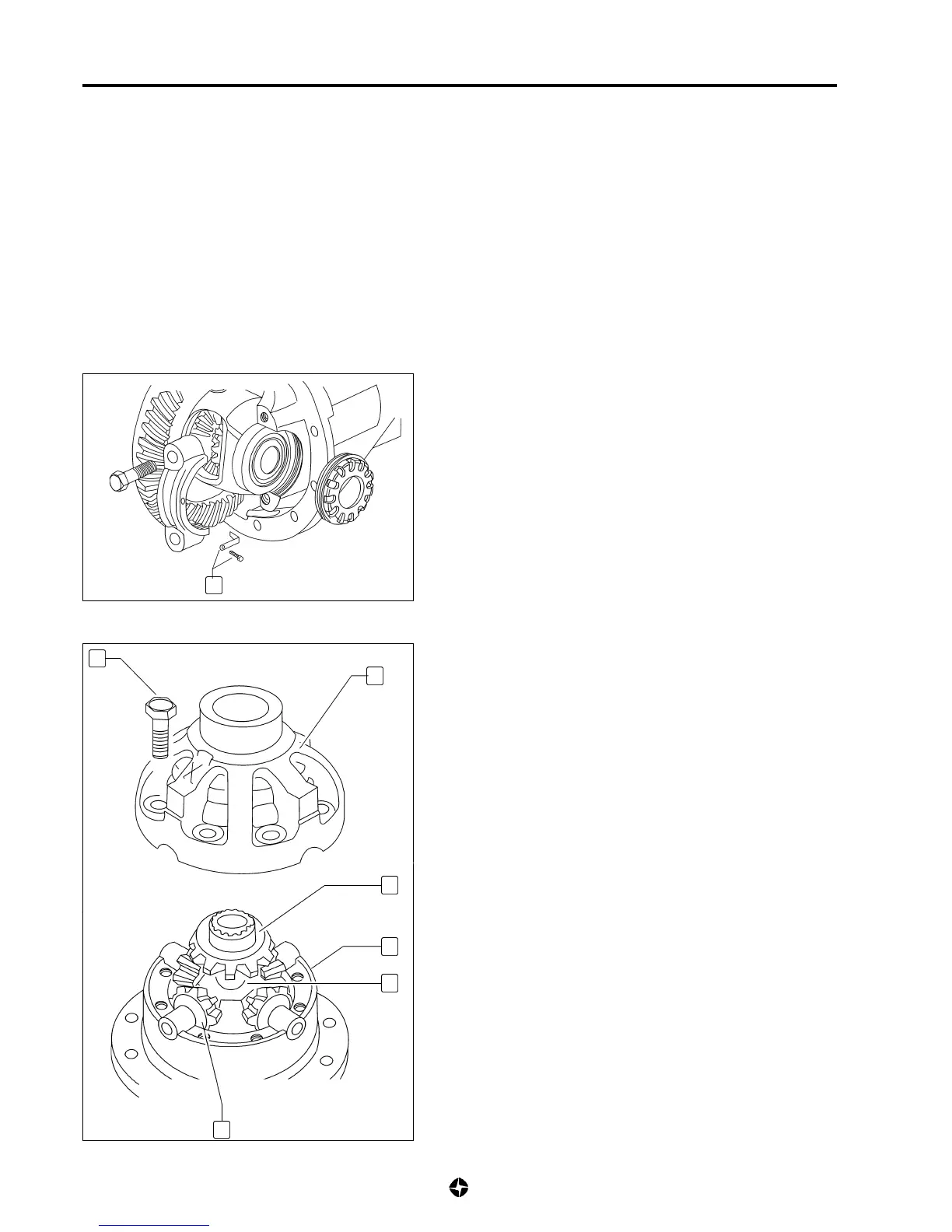

• The brake ensemble (2) consists of screw and plate as
shown in the figure.
2
4
3
6
5
7
9
• Dismantle the screws (3) joining the upper half sump (4)
and the lower half sump (5).
• Fix a reference for half sumps (4) and (5) with an aligning
mark and separate them.
• Withdraw:
• The two planetary gears (6).
• The satellite axle (7).
• The four satellite gears (8).
• The rolling washers (9).
NOTE:
Keep satellite and planetary gears by pairs with their
housings and washers.
