Hicom 100 E Version 2.1, Service manual
11-3
Plus products
Memo password list:
Customer password (VOICEMAIL / CENTRAL CONSOLE):
1 2 3 4
Technical support password (wrench):
5 9 9 1
DTMF tracer (access via Technical support menu):
# 5 9 5
11.3 Entrance telephones
11.3.1 Direct connection without door opener
Depending on the features required, the door opener is connected directly (only in exceptional
cases).
Voice call to the entrance telephone can be set up from each telephone.
●
No direct door opener feature (via actuator only)
●
No doorbell signal at Hicom 100 E
●
No amplifier trigger contact (via actuator only)

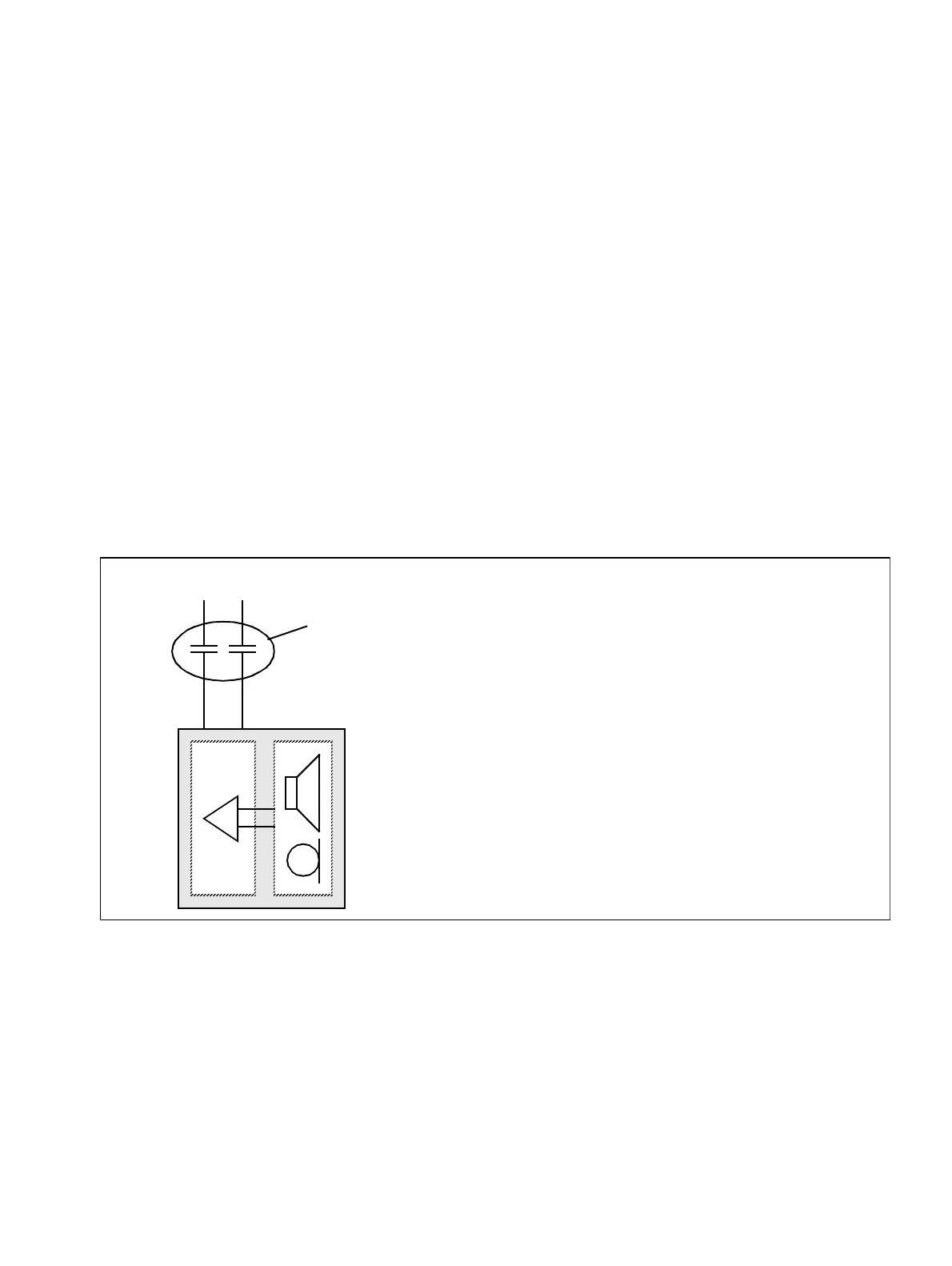

Figure 11-1 Entrance telephone, direct door opener connection
a
Hicom108/112/118
b
Entrance
telephone
In certain entrance telephones it may be necessary to insert a
1
µ
F/250V capacitor for each line (not required in the case of
door opener adapter box).
Individual power supply on a/b of the amplifier.
