Siemens Hicom 112 User Manual

Entrance telephone
s
A31003-K16-X001-3-7620, 07/99
Hicom 100 E Version 2.1, Service manual
11-13
Plus products
11.3.4 Connection via TFE/V adapter box
Depending on the features required, the door opener can be connected via an entrance tele-
phone adapter box with amplifier (TFE/V) (S30817-Q936-A313, with make contact).
In the case of the a/b interface, the a-wire is always to be connected to minus and the b-
wire to plus
.

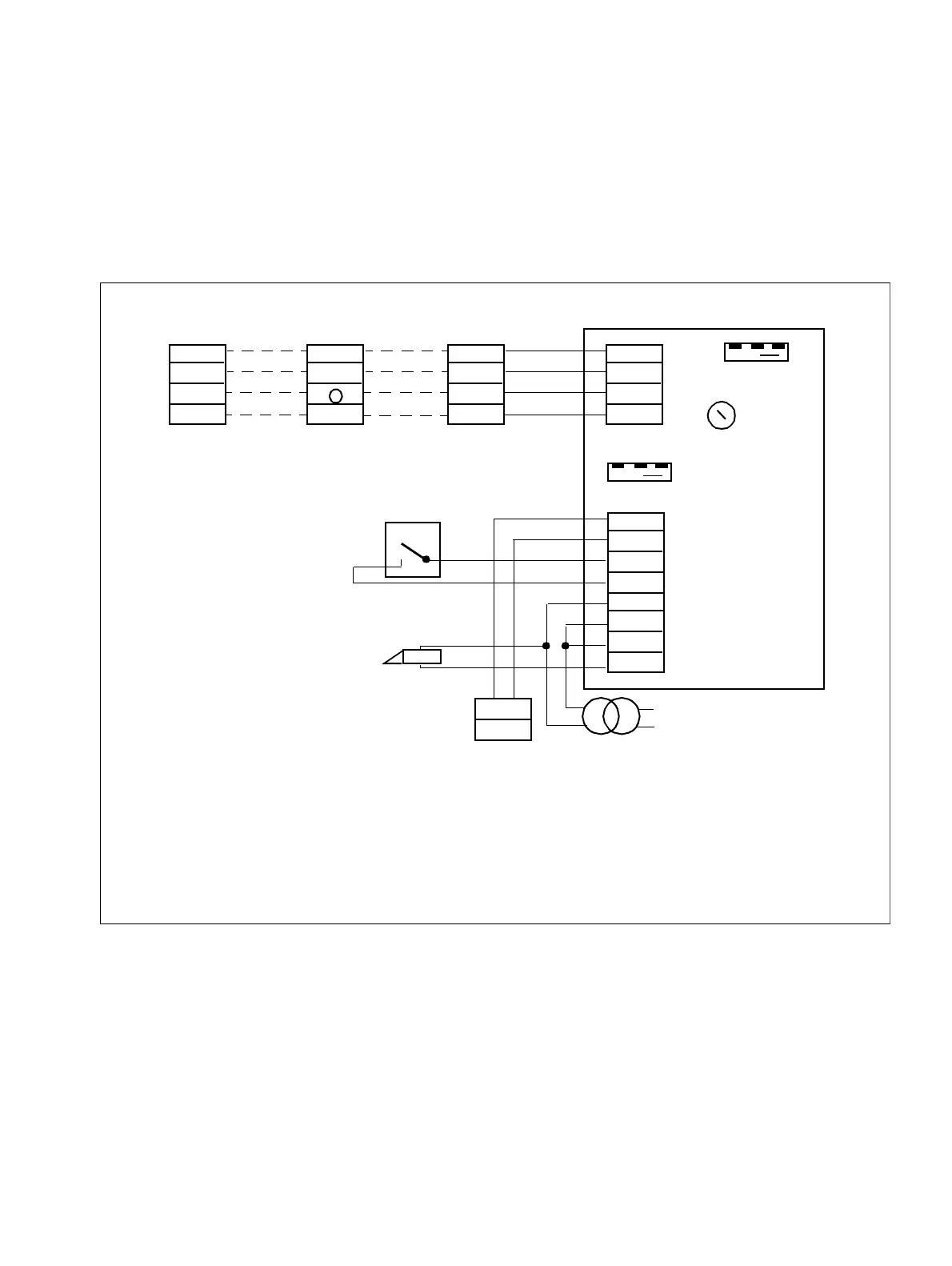

Figure 11-12Connection to Siedle TLM 511-01, Ritto 5760 or Grothe TS 6216 entrance
telephone
X5 terminal
RiTTO
5760
Grothe
TS 6216
Siedle
TLM 511-01
TFE/V
X1 jumper
X4 terminal
Potentiometer
X2 jumper
X3 terminal
8 x 12 V doorbell
transformer
b
a
2
+
+
6
Doorbell
Power supply
Door opener
relay
Hicom 100E
L
B
O
U
AC
TOEI
AC
TOEI
A
KLI
B
KLI
12
14
13
11
LSI
MIC+
LSI
MIC-
LS1/LS2 = Loudspeaker
MIC +/MIC- = Microphone
a/b = Subscriber line circuit
KLI/KLI = Doorbell contact
AC/AC = Doorbell transformer
TOE/TOE = Door opener relay
- The potentiometer for setting the volume should, if possible, be set to the max. volume (turn as far right as
possible).
- Do not change jumper X1 (GER)
- Door opener contact load: 2A max.
