System dat
A31003-K16-X001-3-7620, 07/99
Hicom 100 E Version 2.1, Service manual
12-3
Euroset line 36/Hicom 118-2
12.1.3 Important notes
As regards configuration options, the Euroset line 36/Hicom 118-2 corresponds to the Hicom
100 E. No digital trunk modules or digital expansion modules, however, are used in the Euroset
line 36.
As in the case of Hicom 118, all modules in Hicom 118-2 are put into operation in the basic box.
In the expansion box, however, only the analogue modules can be put into operation.
12.2 System data
The configuration of the Euroset line 36 corresponds extensively to that of the Hicom 100 E.
The only difference is that an additional (third) expansion level (6 slots in total) is provided in
SW version 2.0.1+ for analogue add-on modules (SLAS/TLA). In SW version 2.0.2, only 2 ex-
pansion levels (4 slots in total) are provided for analogue modules up to SLAS16 and TLA8.
For Hicom 118-2 , two expansion levels (4 slots in total) are provided in the basic box for ana-
logue and digital modules.
Four slots, however, are also provided for analogue modules in the Hicom 118-2 optional ex-
pansion box.
12.2.1 Two-box system assembly

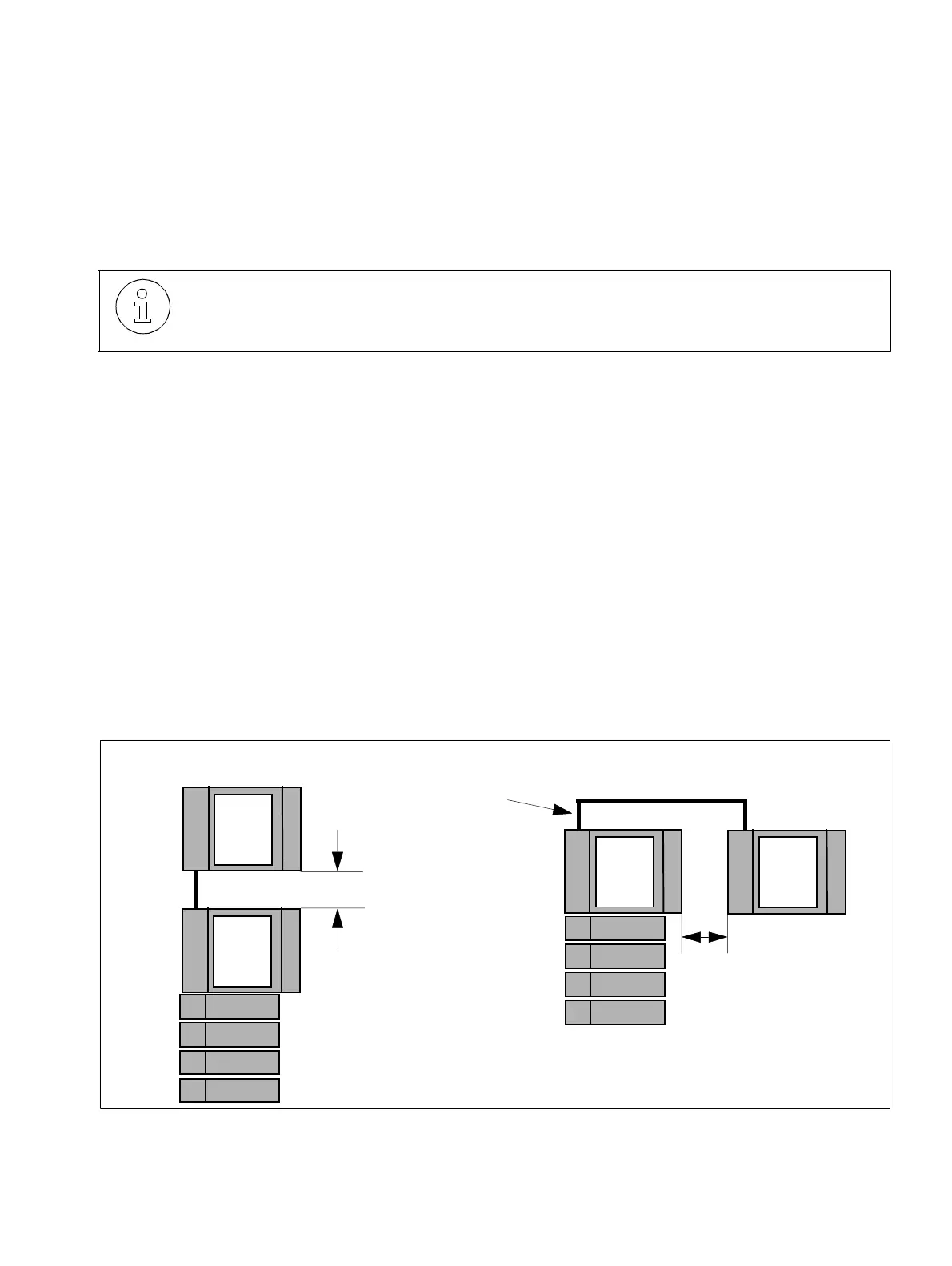

Figure 12-3 Two-box system assembly (minimum/maximum clearances)
The Euroset line 36 does
not
conform to CE guidelines in SW version 2.0.1+.
EB
BB
EB
BB= Basic box
EB= Expansion box
min. 20cm
max. 16cm
Boxes stacked
Boxes side-by-side
Connecting cable
approx. 100cm
BB
