Hicom 100 E Version 2.1, Service manual
11.4.1 Installing Caracas Desk
●
V.24 line lengths (10m in each case) must be observed.
●
Insert the polarized lithium battery in the module slot provided (housing must be open).
●
Attach to wall at 2 fixing points (suspend from above, screw in below).
●
Cabling to Hicom 118, to printer, connection to plug-in PSU.

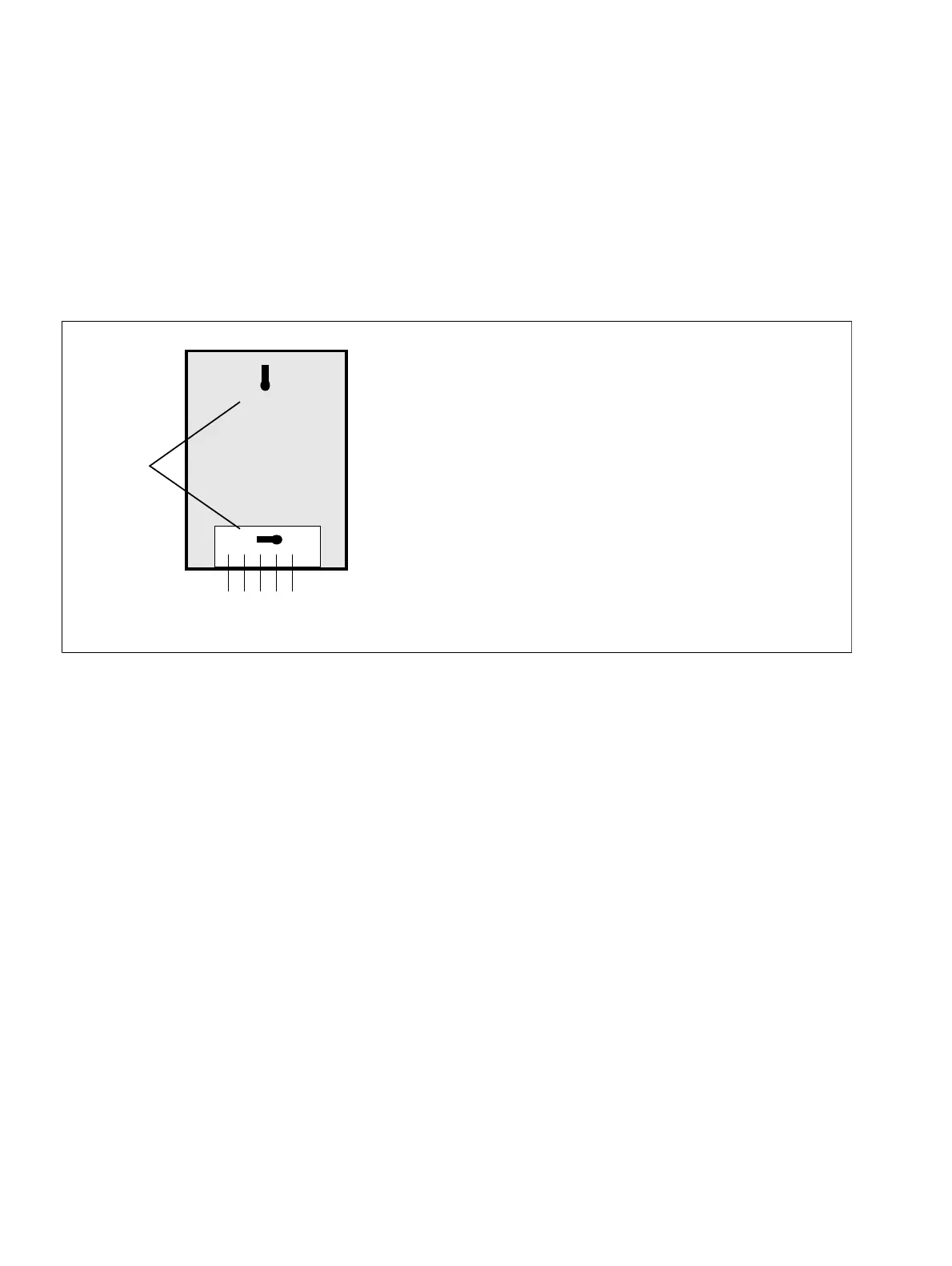

Figure 11-14Wall mounting with closed housing and opened hinged cover
11.4.2 Setting up and initial operation of Caracas Desk
●
The U
P0/E
to the system must be connected to the 1st Hicom 118 U
P0/E
.
●
Up to three add-on devices (min. one) can be connected to the reception telephone, the
1st for hotel features, the 2nd and 3rd mainly for room keys.
●
The printer is to be set to 2400 baud, no parity, 1 stop bit and 8 data bits.
●
The Hicom 118 V.24 interface is to be set to 9600 baud.
●
Select "Port assignment" 1 for CDRC port under the code 21 32 in the "System settings"
menu.
●
Central call detail recording in Hicom 118 is to be set to compressed output format, without
recording incoming calls and without a On ringing.
●
Only use the original plug-in power supply unit.
●
The following sequence is recommended when putting the Caracas Desk into operation:
Slots in
rear of
housing
12345Connections:
Connections:
1 = V.24 cable to the printer
2 = V.24 cable to Hicom 118*
3 = Plug-in power supply unit
4 = Reception telephone
5 = 1st Hicom 118 UP0/E interface
* V.24 adapter cable (2m) + accompanying V.24 cable (8m)
