Hicom 100 E Version 2.1, Service manual
12-13
Euroset line 36/Hicom 118-2

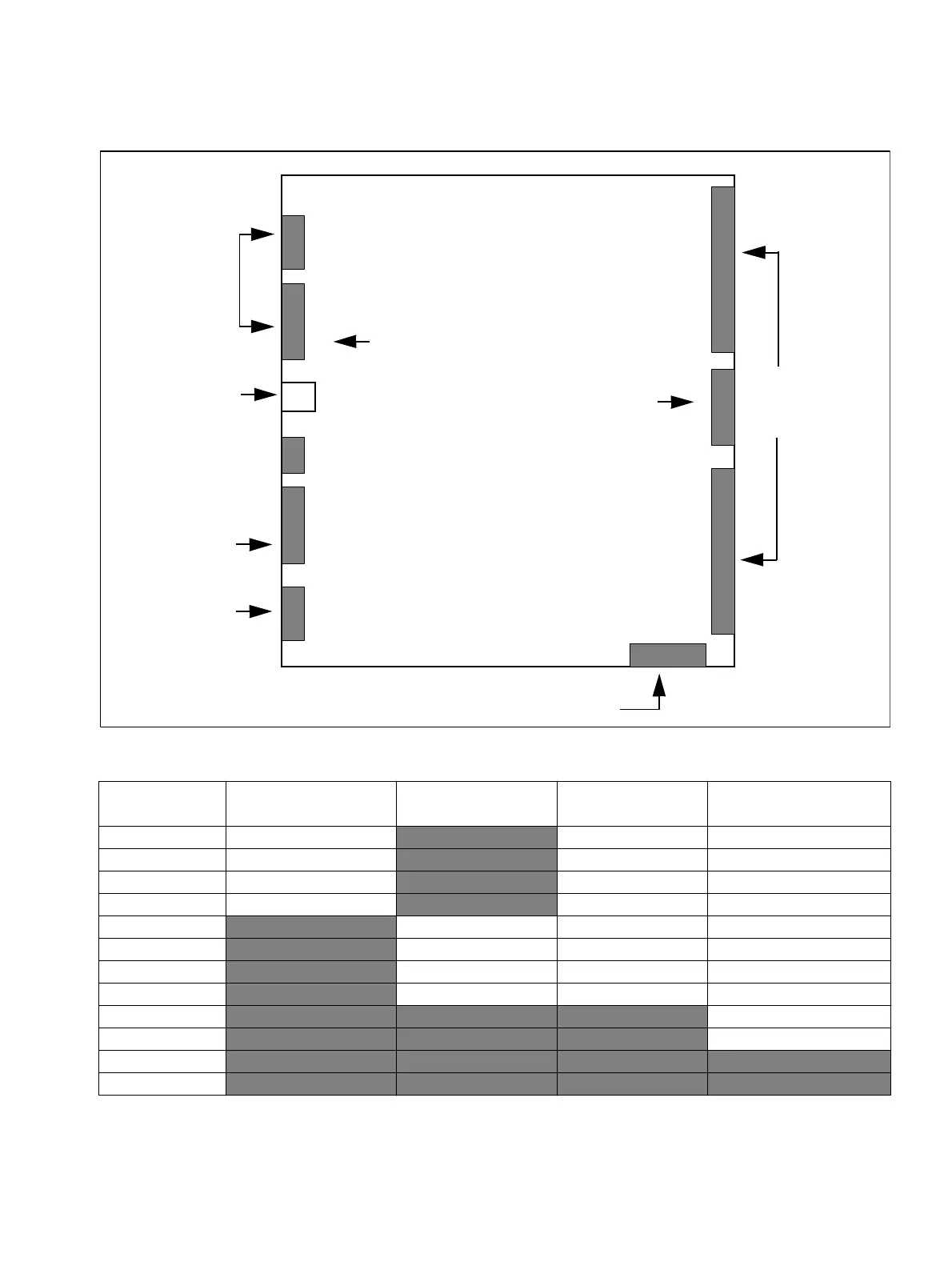

Figure 12-8 Motherboard interfaces – Euroset line 36
Contact Port X1
UP0/E
Port X2
UP0/E
Port X3
a/b
Port X4
1 a1 - port 1 a 1 - port 1 GND
2 b1 - port 1 b 1 - port 1 not assigned
3 a2 - port 2 a 2 - port 2 not assigned
4 b2 - port 2 b 2 - port 2 EXMCL
5 a3 - port 3 a 3 - port 3 EXMDIR
6 b3 - port 3 b 3 - port 3 HRES
7 a4 - port 4 a 4 - port 4 EXMD
8 b4 - port 4 b 4 - port 4 EXMDET
9 +5V
10 not assigned
11
12
Table 12-7 Contact assignment of the MB interfaces - Euroset line 36
X1
X2
SIC
X3
X4
Options bus
MB
U
P0/E
ports
1...4
X10
a/b ports
1...4
EXM / MPPI
3, 4, (6)
1, 2, (5)
PSU/UPS
1
8
1
4
5
12
1
10
V. 24 adapter
X11
MDF side
PSU/UPS side
GND
Plug connector as
of SW 2.0.2
System
expansion
9 -12 not assigned
for MB4/4
