System data
Euroset line 36/Hicom 118-2
A31003-K16-X001-3-7620
,
07/99
12-8
Hicom 100 E Version 2.1, Service manual
12.2.7 Hicom 118-2 system overview (expansion box)

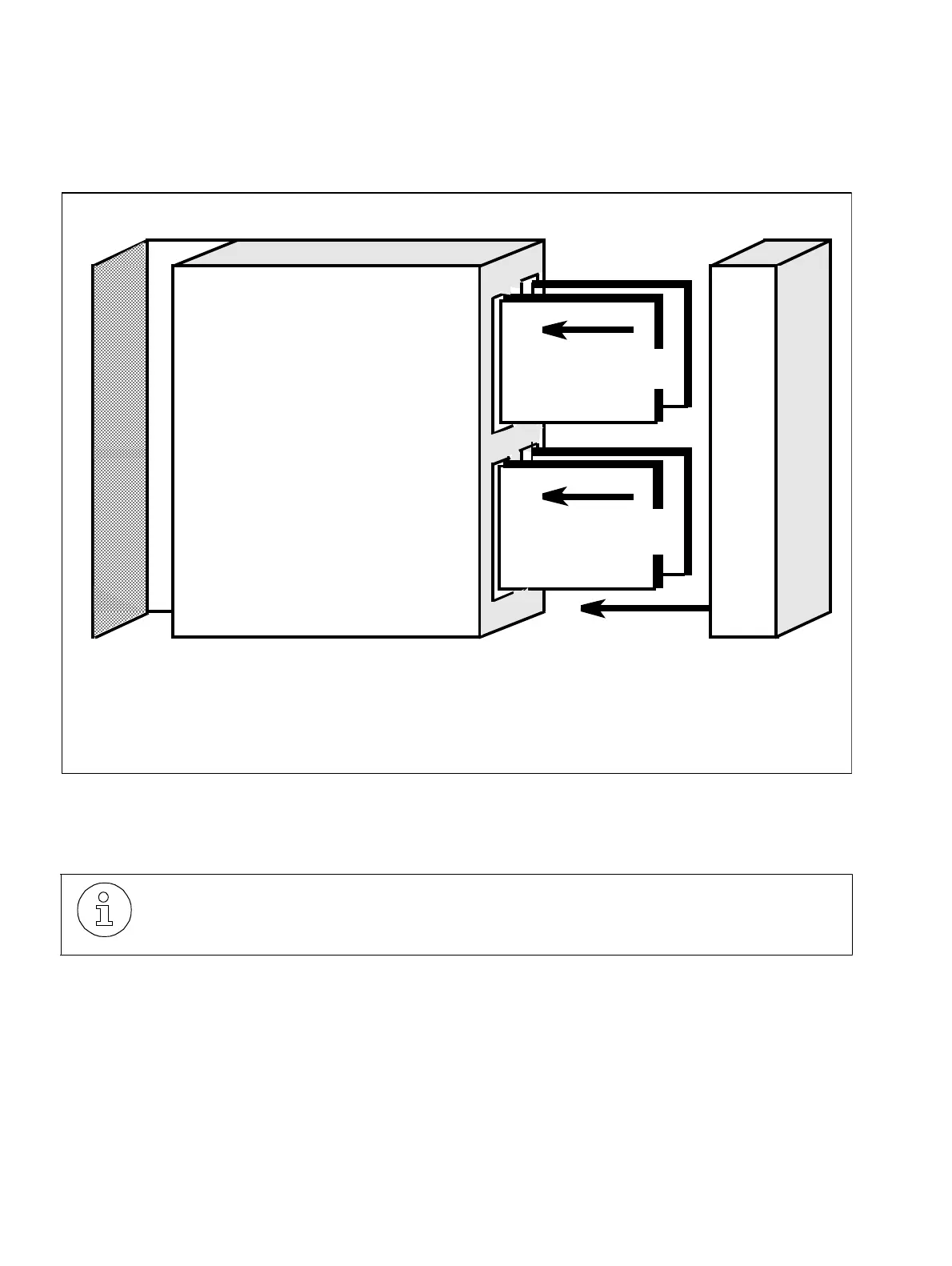

Figure 12-7 Hicom 118-2 expansion box structural concept
Freely assignable with analogue and/or subscriber modules.
Slots 5 with 8-port modules, slots 6, 7 and 8 with 16-port modules.
The TLA module is to be incorporated preferably in the basic box in order to simplify
the GEE module wiring.
8
7
6
5
Cover/MDF
Expansion box
Hicom 118-2
PSU2/UPS2
Plug in and
secure (screw)
System expansion
System expansion
