A
dd-on modules for system expansions
Overview of modules
A31003-K16-X001-3-7620
,
07/99
3-16
Hicom 100 E Version 2.1, Service manual
3.5.2 SLAS16 (subscriber line analogue)
The SLAS16 subscriber line module for 16 analogue a/b interfaces is used for connecting stan-
dard telephones and for additional devices (such as group 3 fax machines and door opener
adapters) (see Section 5.13).

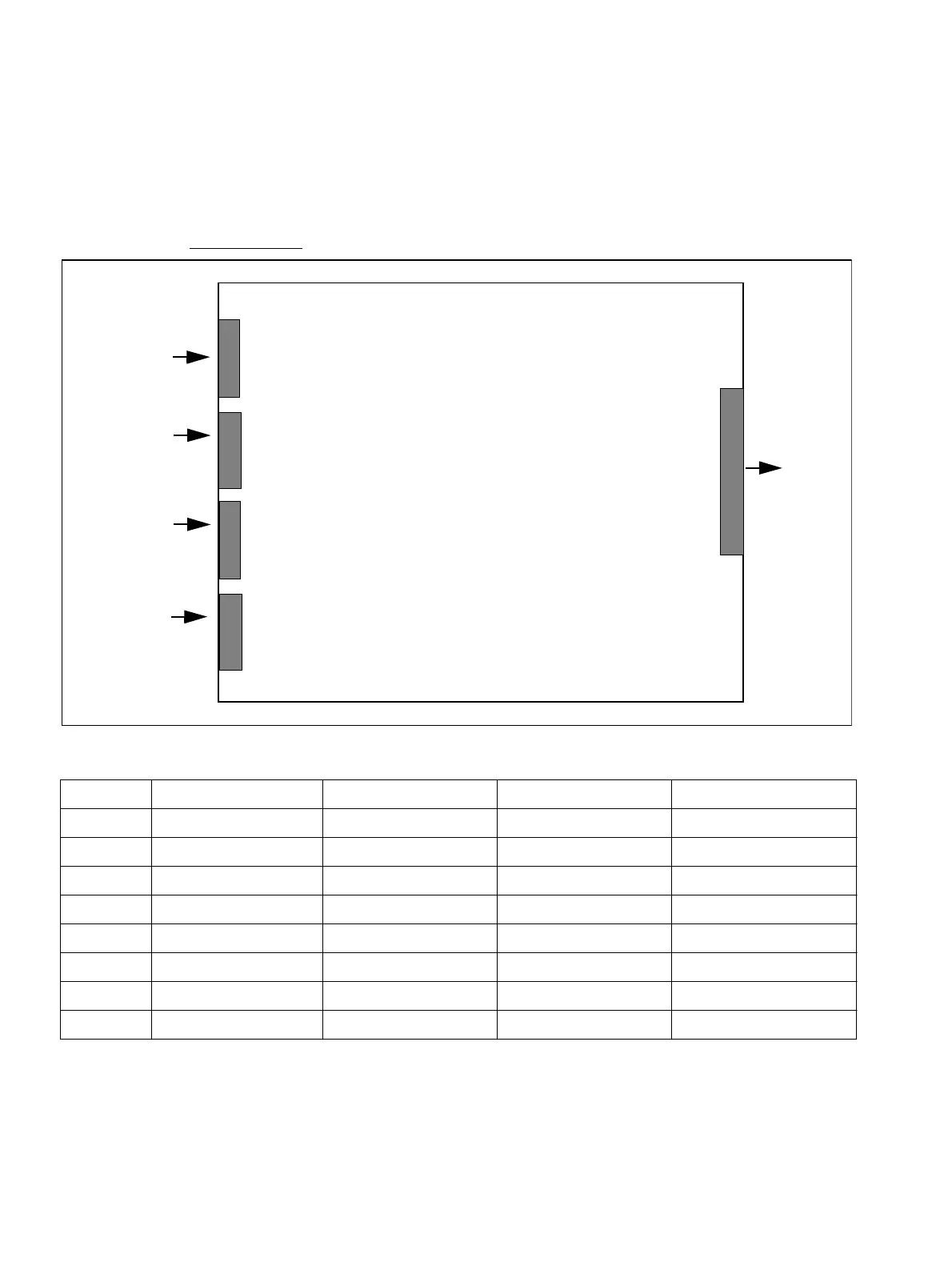

Figure 3-6 SLAS interfaces
Contact X2 (a/b ports 1-4) X3 (a/b ports 5-8) X4 (a/b ports 9-12) X5 (a/b ports 13-16)
1a 1a 5a 9a 13
2b 1b 5b 9b 13
3 a 2 a 6 a 10 a 14
4 b 2 b 6 b 10 b 14
5 a 3 a 7 a 11 a 15
6 b 3 b 7 b 11 b 15
7 a 4 a 8 a 12 a 16
8 b 4 b 8 b 12 b 16
Table 3-14 Contact assignment of the SLAS interfaces
a/b ports 1-4
a/b ports 5-8
X1
50
2
X2
X3
to MB
SLAS16
1
8
1
8
X4
X5
1
8
1
8
a/b ports 5-8
a/b ports 5-8
