Function expansions with options bus
Overview of modules
A31003-K16-X001-3-7620
,
07/99
3-28
Hicom 100 E Version 2.1, Service manual

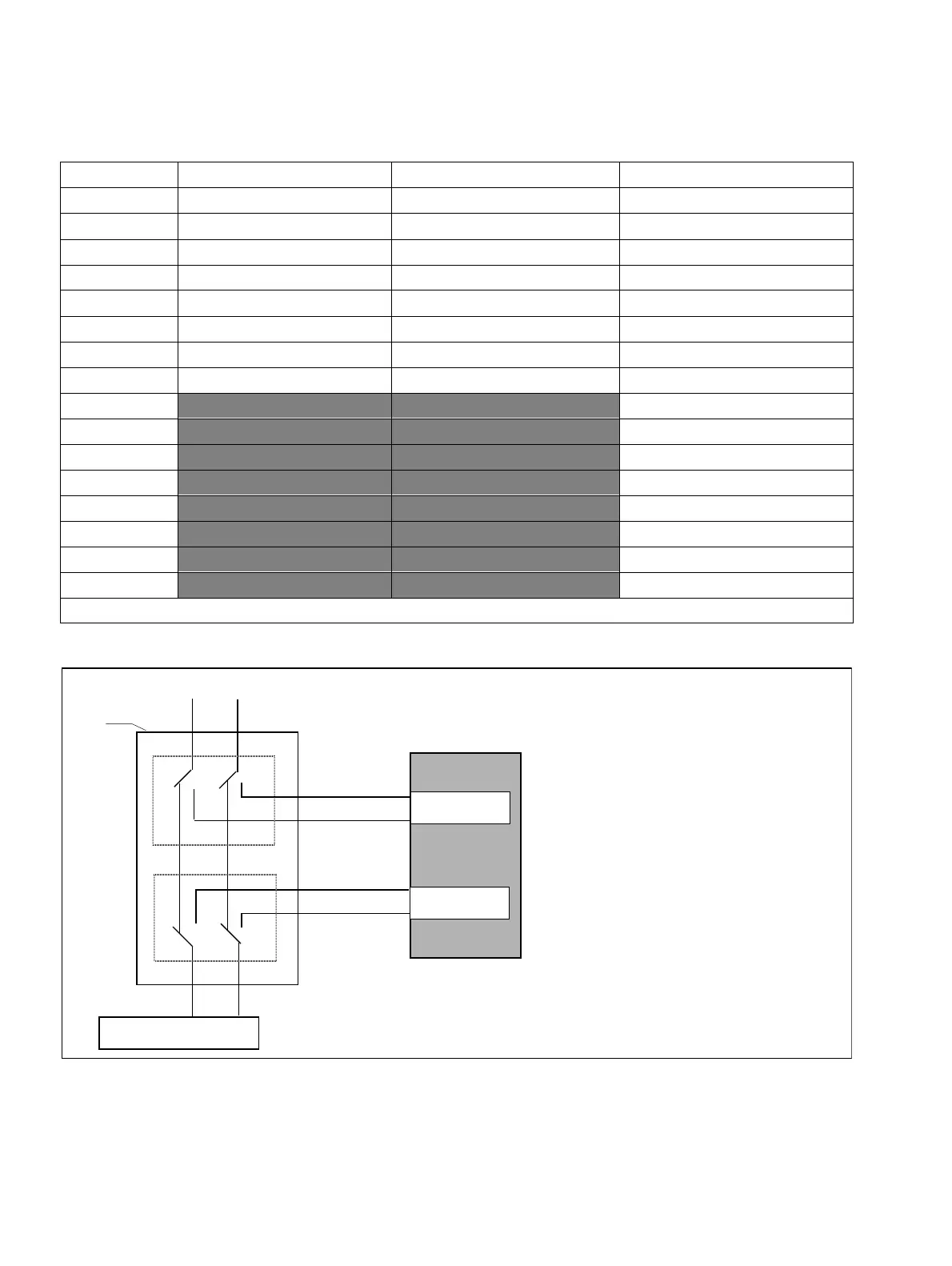

Figure 3-17 Basic layout of the ALUM module
Contact Port X3 Port X4 Port X6
1 R1 from trunk 1a AE1 to ext. 1a AT1 to TLA a
2 T1 from trunk 1b BE1 to ext. 1b BT1 to TLA b
3 R2 from trunk 2a AE2 to ext. 2a AT2 to TLA a
4 T2 from trunk 2b BE2 to ext. 2b BT2 to TLA b
5 R3 from trunk 3a AE3 to ext. 3a AT3 to TLA a
6 T3 from trunk 3b BE3 to ext. 3b BT3 to TLA b
7 R4 from trunk 4a AE4 to ext. 4a AT4 to TLA a
8 T4 from trunk 4b BE4 to ext. 4b BT4 to TLA b
9 TA1 to SLA* a
10 TB1 to SLA* b
11 TA2 to SLA* a
12 TB2 to SLA* b
13 TA3 to SLA* a
14 TB3 to SLA* b
15 TA4 to SLA* a
16 TB4 to SLA* b
* = or to the free analogue port
Table 3-23 Contact assignment of the ALUM module
Subscr. module
Trunk module
HICOM 100 E
BT1
AT 1
TA1
TB1
Relay
Relay
TRUNK
ALUM
R1
T1
K2-B
K1-B
AE1
BE1
K1-C
K2-C
Port X3
Port X4
Port X6
Normal telephone
