System dat
A31003-K16-X001-3-7620, 07/99
Hicom 100 E Version 2.1, Service manual
12-7
Euroset line 36/Hicom 118-2
12.2.6 Hicom 118-2 system overview (basic box)

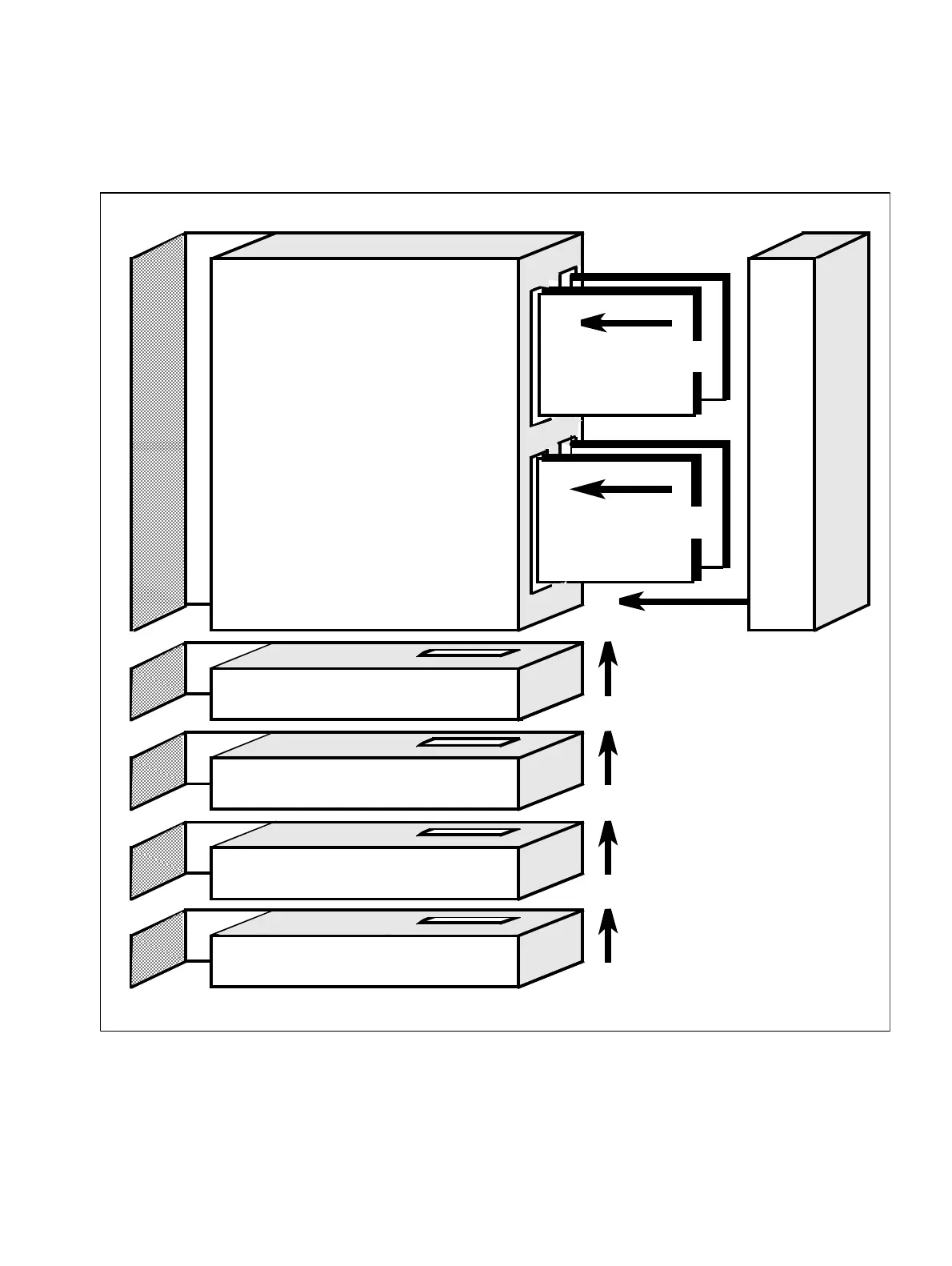

Figure 12-6 Hicom 118-2 basic system structural concept
Freely assignable with analogue and digital line and/or subscriber modules.
Slots 1 and 2 with 8-port modules, slots 3 and 4 with 16-port modules.
4
3
2
1
Cover/MDF
Basic system
Function expansion
System expansion
Hicom 118-2
1
2
3
4
System expansion
PSU2/UPS2
Plug in and
secure (screw)
Plug in
