Hicom 100 E Version 2.1, Service manual
12.2.5 Euroset line 36 system overview (version 2.0.2)

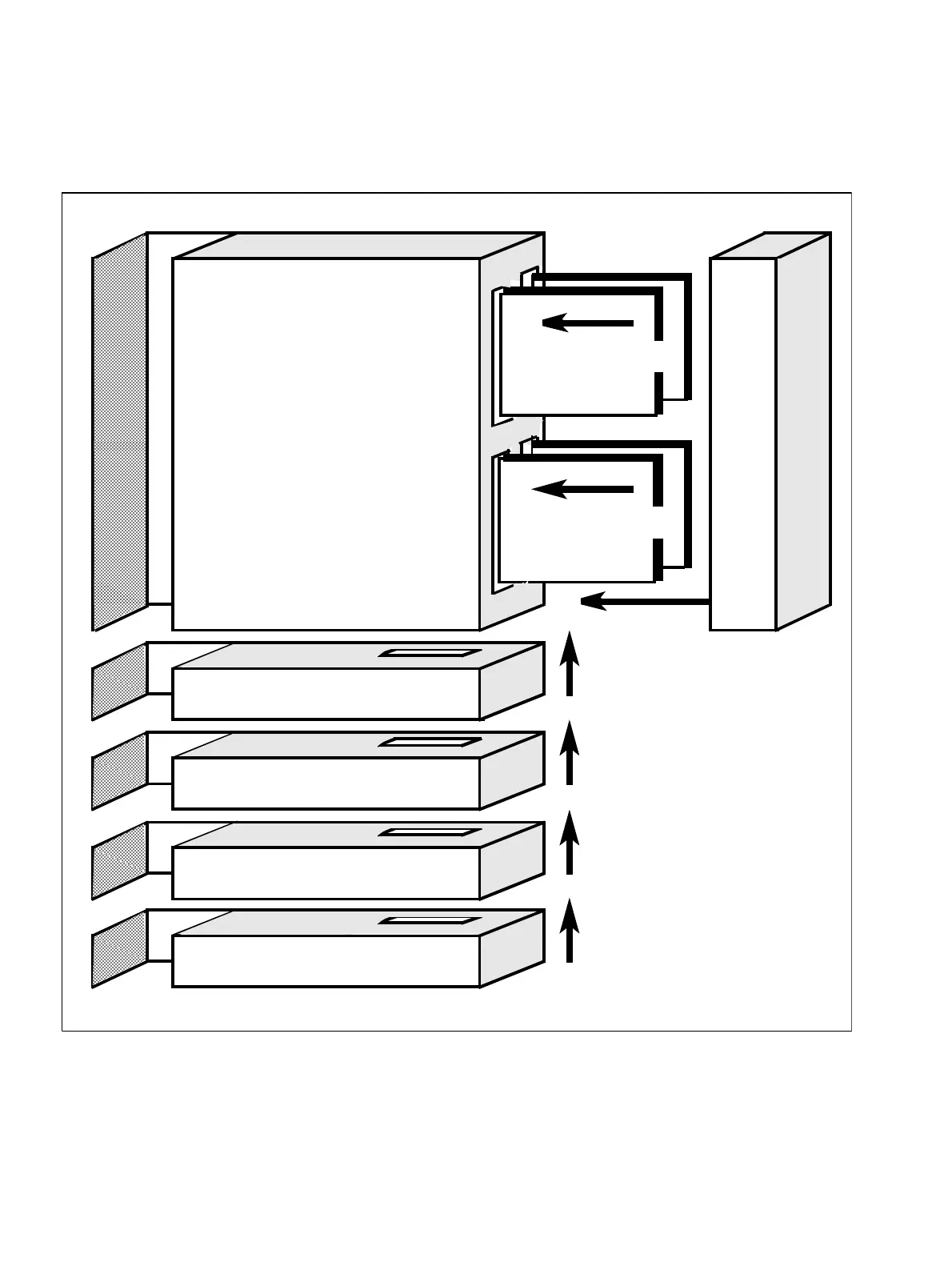

Figure 12-5 Euroset line 36 structural concept (SW 2.0.2)
Freely assignable with analogue line and/or subscriber modules.
Slots 1 and 2 with 8-port modules, slots 3 and 4 with 16-port modules.
4
3
2
1
Cover/MDF
Basic system
Function expansion
System expansion
Euroset line 36
1
2
3
4
System expansion
PSU2/UPS2
Plug in and
secure (screw)
Plug in
