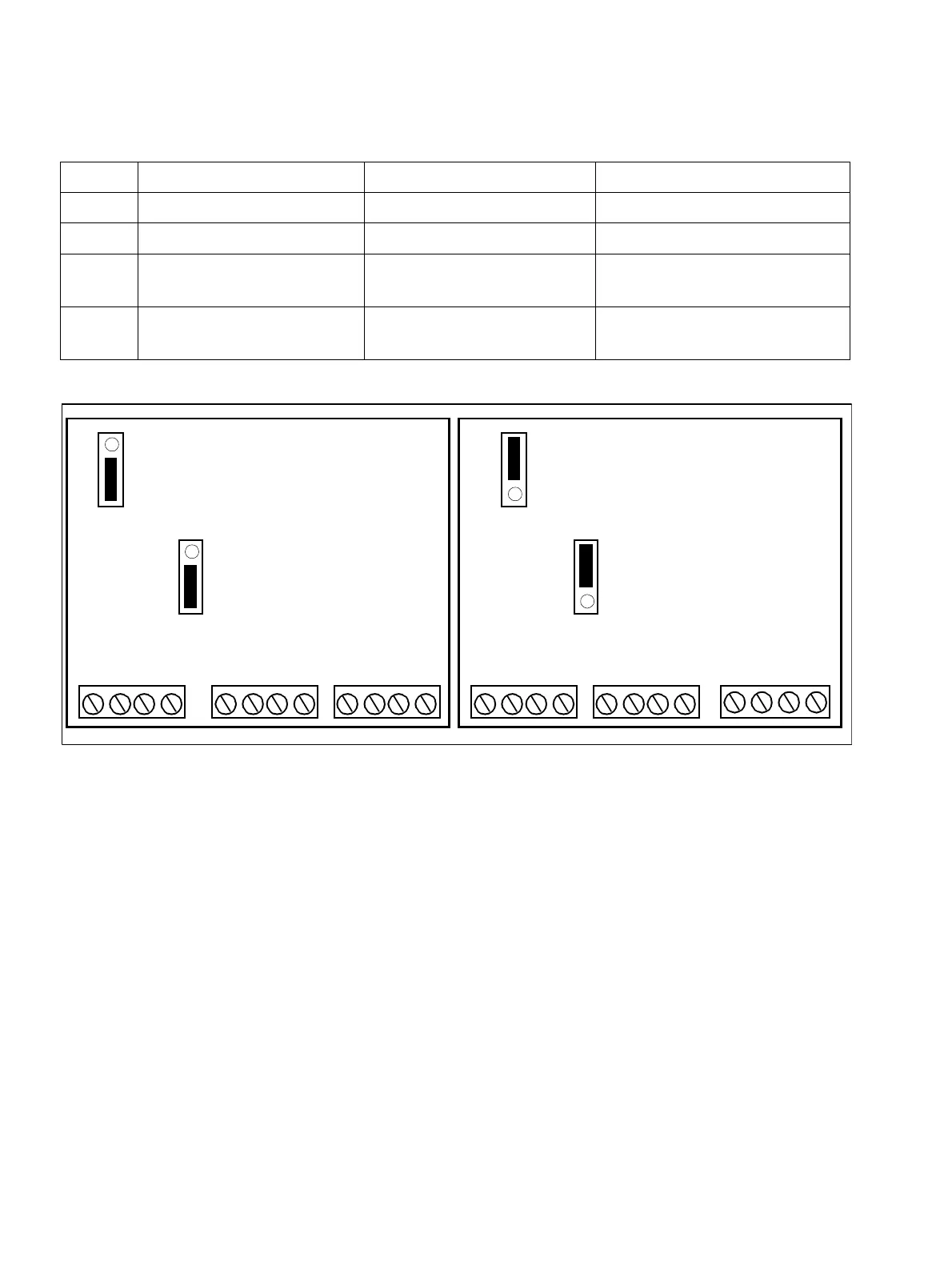

Figure 11-11Contact assignment for possible voice modules
Pin no. X3 terminal X4 terminal X5 terminal
1 AC (a-wire)
-
Loudspeaker (LS1)
2 AC (b-wire)
+
Loudspeaker (LS2)
3 Door opener contact (DO) Doorbell contact (DB) Microphone connection
(MIC+)
4 Door opener contact (DO) Doorbell contact (DB) Microphone connection
(MIC-)
Table 11-1 TFE/V contact assignment
X2
X1
X2
X5 X4 X3 X5 X4
X3
X1
1234 1 234 1234 12341234
1234
Voice module
RITTO 5760
Voice module
Siedle TLM 511-
01
Connection at:
Connection at:
