Hicom 100 E Version 2.1, Service manual
12-5
Euroset line 36/Hicom 118-2
12.2.4 Euroset line 36 system overview (version 2.0.1+)

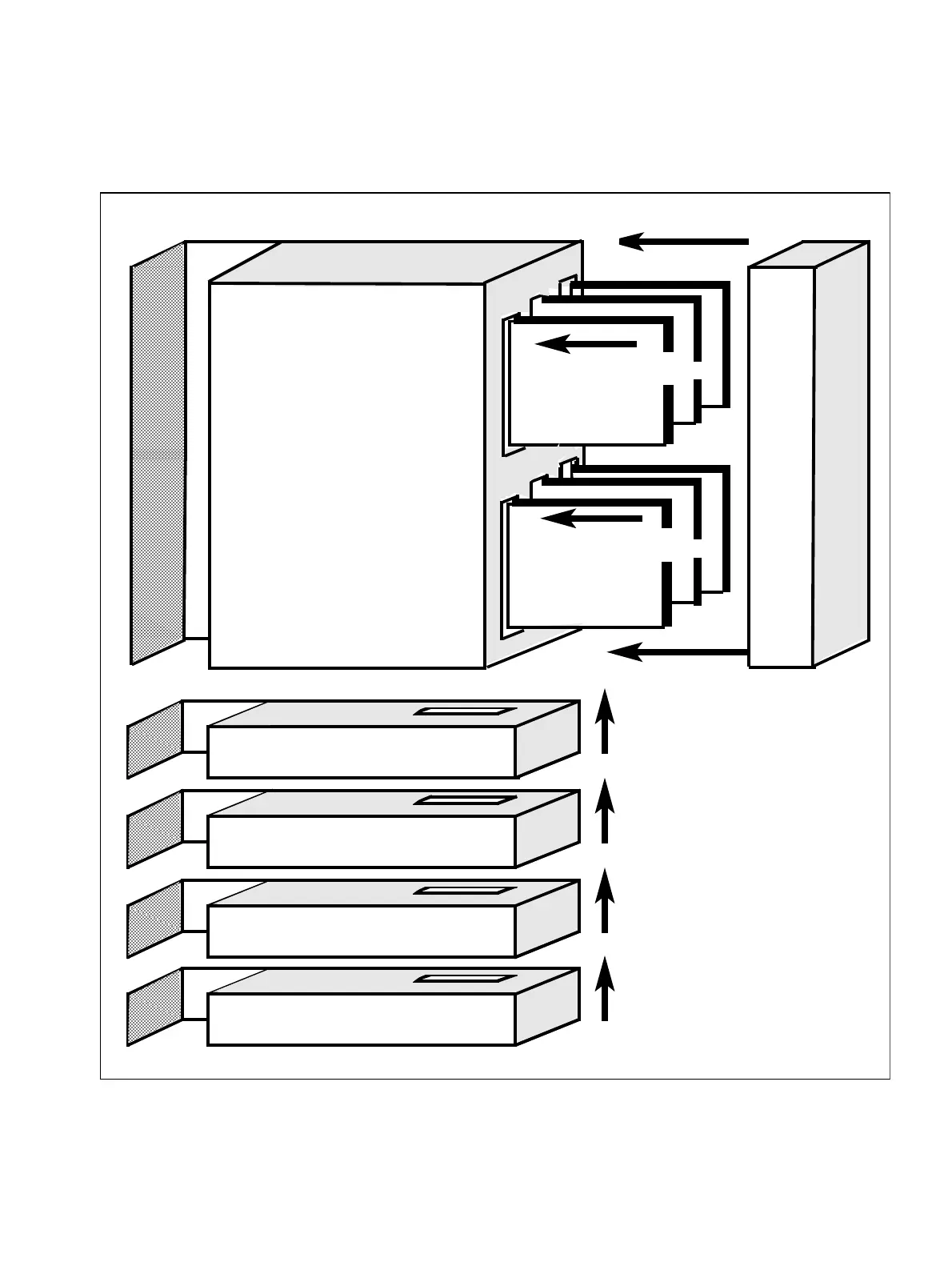

Figure 12-4 Euroset line 36 structural concept (SW 2.0.1+)
All mounting locations can be assigned analogue 8-port modules (max.).
4
3
2
1
Cover/MDF
Basic system
Function expansions
euroset line 36
1
2
3
4
PSU3/UPS3
5
6
Plug in
Plug in and
secure (screw)
System expansion
System expansion
