Entrance telephone
s
A31003-K16-X001-3-7620, 07/99
Hicom 100 E Version 2.1, Service manual
11-9
Plus products

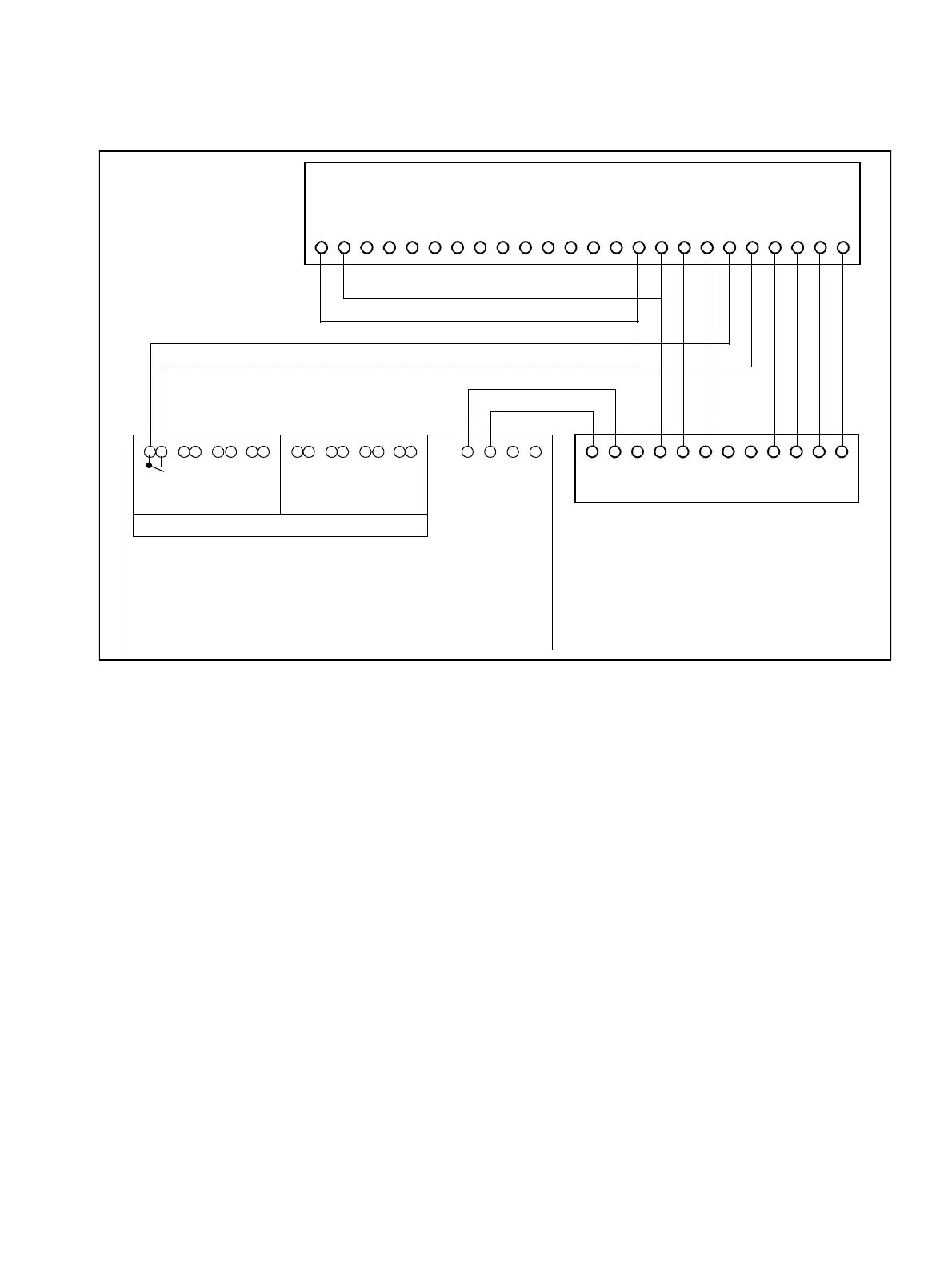

Figure 11-8 Doorline M02 entrance telephone
12 V AC 12 V AC 48 V AC 48 V AC K1 K1´ K2 K2´ K3 K3´ K4 K4´ TFE a TFE b TOSP1 TOSP2 TO1 TO2 TS1 TS2 La Lb ME1 ME2
a1 b1
UB1 UB2
TO1 TO2
TS1 TS2
a2 b2
KL1 KL2
K1 K2 K3 K4
Actuators Sensors
O.1 O.2 O.3 O.4
STRB
Actuator 1 = Extension of door opener
Type = Entrance telephone
Hicom 100 E
analogue line
b a
Door opener adapter box
Doorline M02
circuit
(as of SW 2.1)
Actuator 1 is to be set up as an entrance
telephone. The extension of the TFE (door open-
er) adapter is to be entered as the extension for
the actuator.
The doorbell follows the programmed configura-
tion. (Receiving extension for doorbell)
