A31003-K16-X001-3-7620, 07/99
Hicom 100 E Version 2.1, Service manual
3-5
Overview of modules
3.2 Overview of configurations

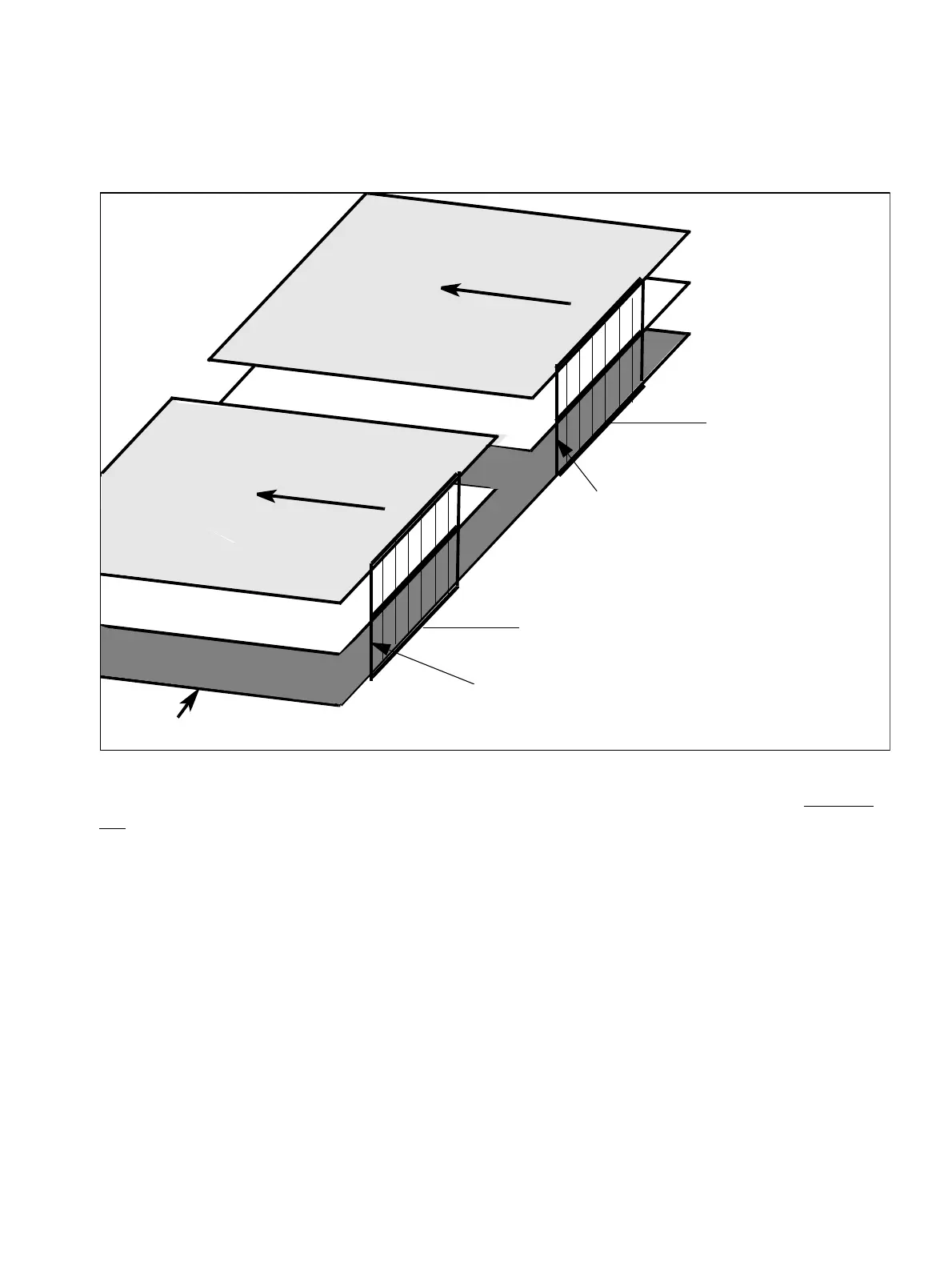

Figure 3-1 System expansions - slot numbers
The overview shows the variety of possible combinations for the systems (see also Section
3.5).
Hicom 108 has one slot that is used only for line modules (analogue trunk or S
o
). A combination
of ISDN and analogue trunk connections is not possible.
Hicom 112 has two slots that are used for line modules (analogue trunk, S
o
). A combination of
ISDN and analogue trunk connections is possible.
Slot 3
PSU/UPS side
Slot 4
Slot 1
MDF side
Ribbon cable
Ribbon cable colour coding (red)
Ribbon cable colour coding (red)
Ribbon cable
Slot 2
MB
Max. 4 function expansions
