PLC device configuration
6.1 Configuring the operation of the PLC system
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
131
You select whether to enable or disable the following alarms for the selected channel of the
selected module:
● Upper limit exceeded (value > 32511)
● Lower limit exceeded (value < -32512)

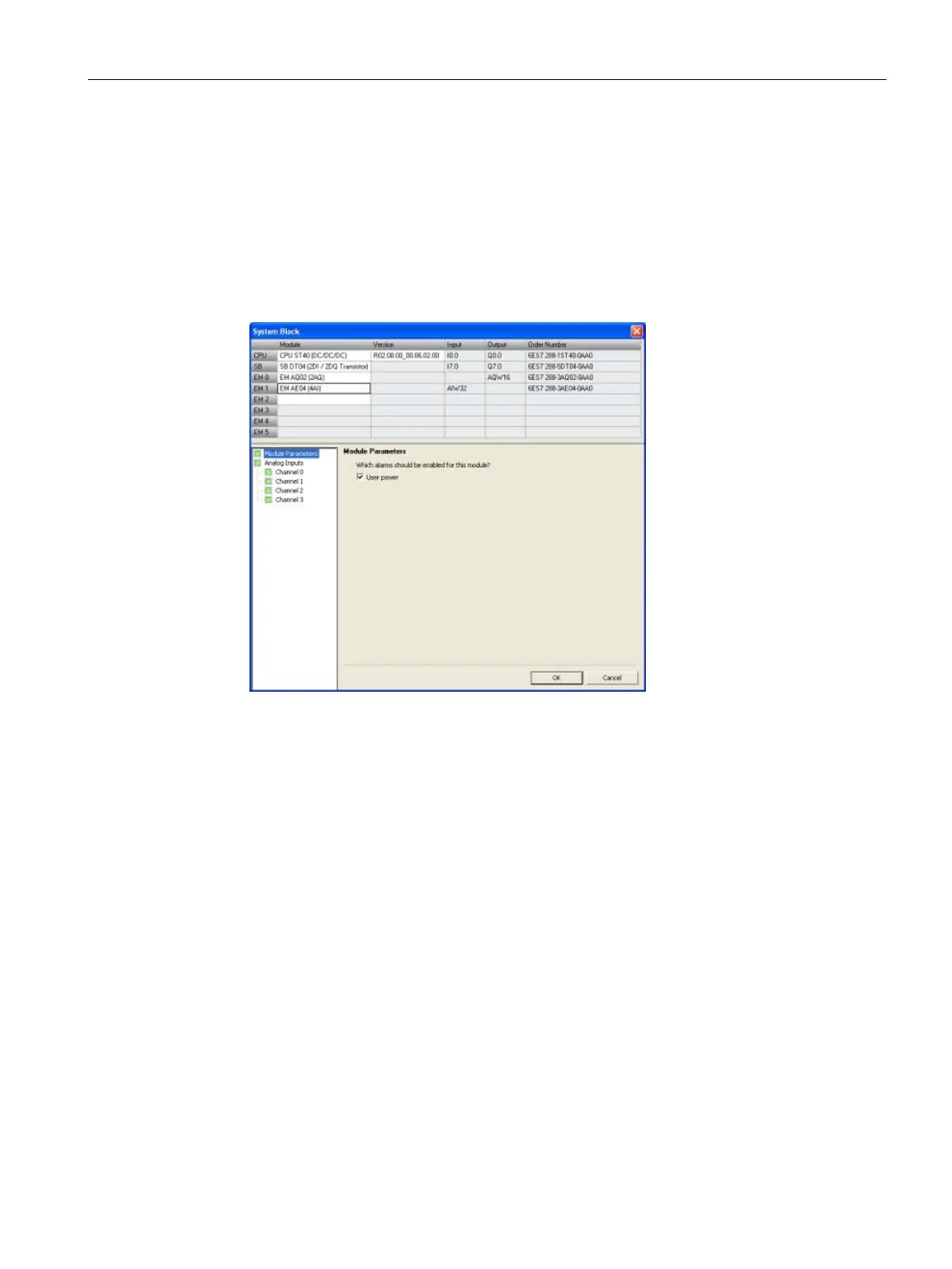

● User power (Configured in the system block "Module Parameters" node; see the figure
below.)
Reference to the analog inputs technical specifications
For further information on analog Input configuration options, refer to the following technical
specifications:
● Range: "Measurement ranges of the analog inputs for voltage and current (SB and SM)"
(Page 624)
● Rejection: "Sample time and update times for the analog inputs" (Page 623)
● Smoothing: "Step response of the analog inputs" (Page 623)
