1.5 Programming software
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
23
1.5
Programming software
STEP7
-Micro/WIN

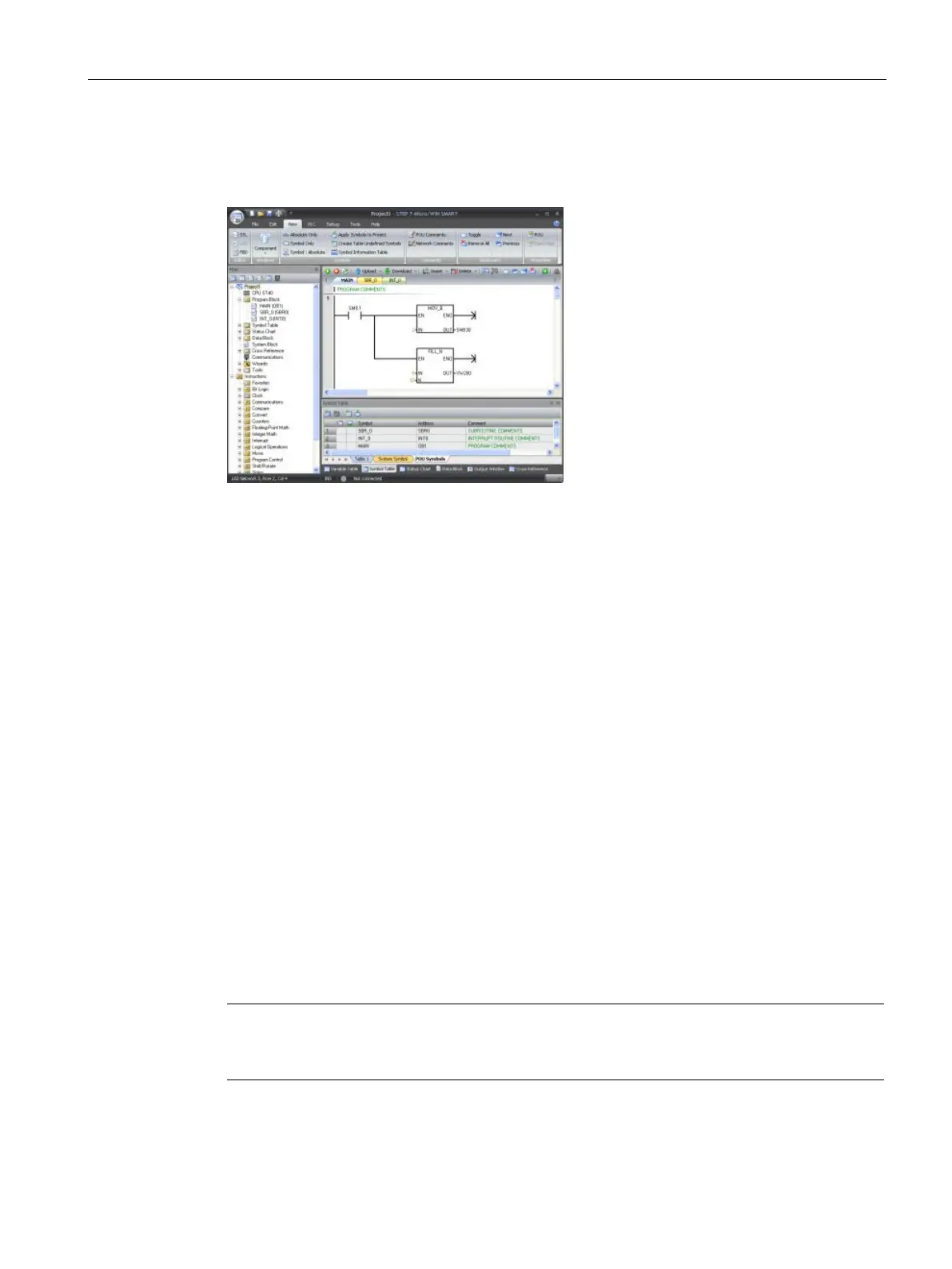

SMART provides a
user
-friendly environment to develop,
edit, and monitor the logic needed to
control your application.
At the top is a quick access
toolbar for
frequent tasks, followed by menus for
all common functions. At the left is the
project tree and navigation bar for
easy access to components and i
n-
structions. The program editor and
other components that you open o
c-
cupy the remainder of the us
er inter-
face.
STEP7
-Micro/WIN SMART provides
three program editors (LAD, FBD, and
STL) for convenience and efficiency in
developing the control program for
your application.
To help you find the information you need, STEP7-Micro/WIN SMART provides an extensive
online help system.
Computer requirements
STEP 7-Micro/WIN SMART runs on a personal computer. Your computer should meet the
following minimum requirements:
● Operating system: Windows XP SP3 (32 bit only), Windows 7 (both 32 bit and 64 bits
supported)
● At least 350M bytes of free hard disk space
● Mouse (recommended)
Installing STEP 7-Micro/WIN SMART
Insert the STEP 7-Micro/WIN SMART CD into the CD-ROM drive of your computer or
contact your Siemens distributor or sales office to download STEP7-Micro/WIN SMART from
the customer support web site (Page 3). Installation starts automatically and prompts you
through the installation process. Refer to the Readme file for more information about
installing STEP 7-Micro/WIN SMART.
Note
To install STEP
7-Micro/WIN SMART on a Windows XP or Windows
7 operating system, you
must log in with Administrator privileges.

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
