Siemens Simatic S7 Series System Manual

PLC device configuration
6.1 Configuring the operation of the PLC system
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
139
6.1.13
Configuring the TC analog inputs

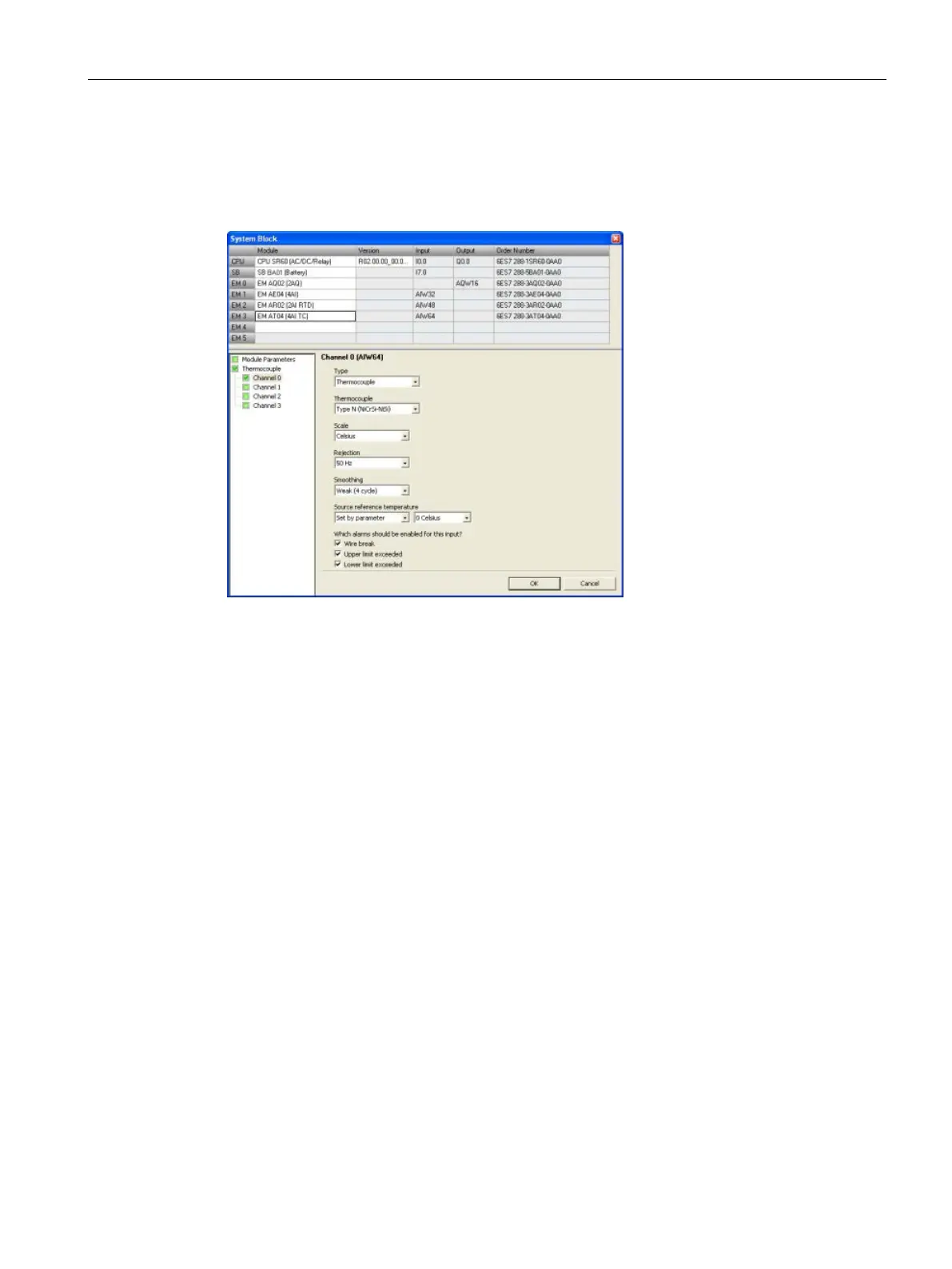

Click the TC (Thermocouple) analog input node of the system block (Page 115) dialog to
configure options for a TC analog input module that you have selected in the top section.
The TC analog expansion module measures the value of voltage connected to the module
inputs.
Thermocouple type configuration
For each TC analog input module channel, you configure the type, choosing one of the
following options:
● Thermocouple
● Voltage

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
