Siemens Simatic S7 Series System Manual

Open loop motion control
12.2 Using motion control
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
485
12.2
Using motion control
The motion control built into the CPU uses an Axis of Motion to control both the speed and
motion of a stepper motor or a servo motor.
Using the Axis of Motion requires expertise in the field of motion control. This chapter is not
meant to educate the novice in this subject. However, it provides fundamental information
that will help as you use the Motion wizard to configure the Axis of Motion for your
application.
12.2.1
Maximum and start/stop speeds

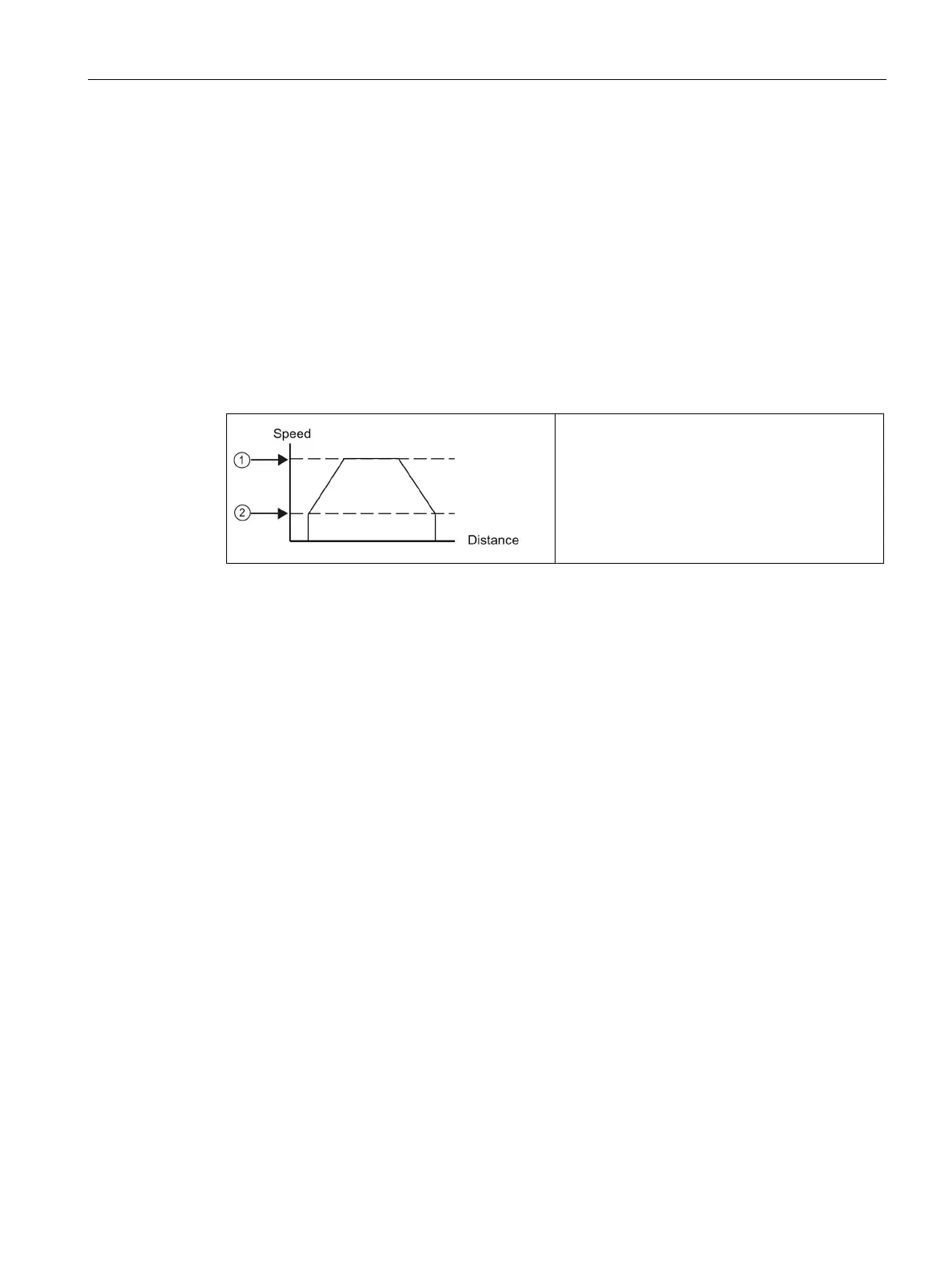

The Motion wizard prompts you for the maximum
speed (MAX_SPEED) and Start/Stop Speed
(SS_SPEED) for your application.
①
MAX_SPEED
② SS_SPEED
● MAX_SPEED: Enter the value for the optimum operating speed of your application within
the torque capability of your motor. The torque required to drive the load is determined by
friction, inertia, and the acceleration/deceleration times.
● The Motion wizard calculates and displays the minimum speed that can be controlled by
the Axis of Motion based upon the MAX_SPEED that you specify.
● SS_SPEED: Enter a value within the capability of your motor to drive your load at low
speeds. If the SS_SPEED value is too low, the motor and load could vibrate or move in
short jumps at the beginning and end of travel. If the SS_SPEED value is too high, the
motor could lose pulses on start up, and the load could overdrive the motor when
attempting to stop.

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
