Communication
8.5 PROFIBUS
S7-200 SMART
394 System Manual, 09/2015, A5E03822230-AC
LAD/FBD
Description
STL

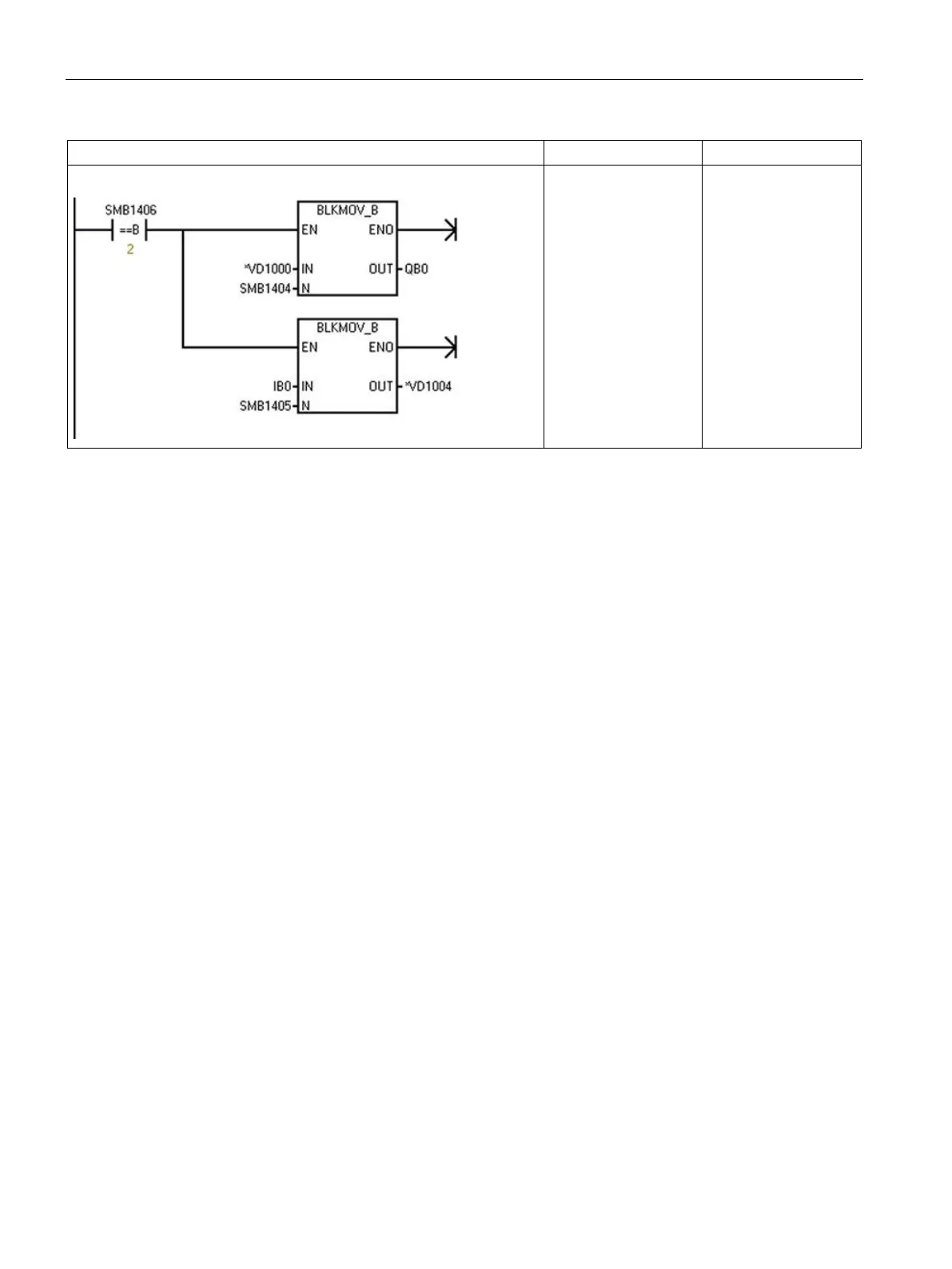

Network 3:
Transfer Master out-
puts to CPU outputs.
Copy CPU inputs to
the Master inputs. If in
data exchange mode:
1. Copy Master out-
puts to CPU out-
puts.
2. Copy CPU inputs
to Master inputs.
LDB= SMB224, 2
BMB *VD1000, QB0,
VB1008
BMB IB0, *VD1004,
VB1009
8.5.1.14
Reference to the EM DP01 PROFIBUS DP module technical specifications
For further information on the EM DP01 PROFIBUS DP module, refer to the
"EM DP01 PROFIBUS DP module" (Page 648) technical specifications.
