8.5 PROFIBUS
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
393

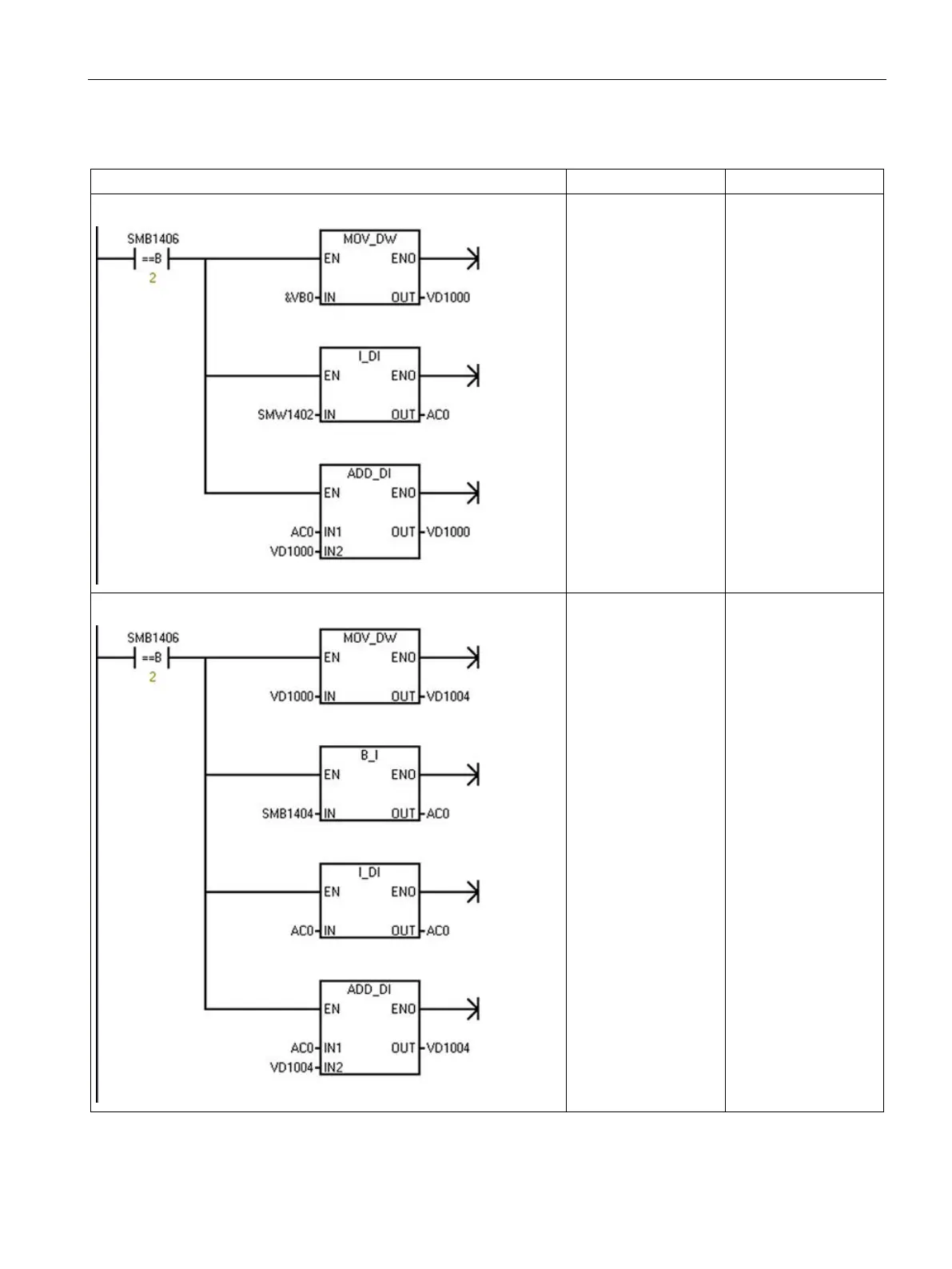

Table 8- 12 Example: Configuring DP communications to an S7-200 SMART CPU
LAD/FBD
Description
STL
Network 1:
Calculate the Output
data pointer. If in data
exchange mode:
1. Output buffer is an
offset from VB0.
2. Convert V memory
offset to double in-
teger.
3. Add to VB0 ad-
dress to get output
data pointer.
LDB= SMB224, 2
MOVD &VB0, VD1000
ITD SMW226, AC0
+D AC0, VD1000
Network 2:
Calculate the Input
data pointer. If in data
exchange mode:
1. Copy the output
data pointer.
2. Get the number of
output bytes.
3. Add to output data
pointer to get start-
ing input data
pointer.
LDB= SMB224, 2
MOVD VD1000,
VD1004
BTI SMB228, AC0
ITD AC0, AC0
+D AC0, VD1004
