Technical specifications
A.10 EM DP01 PROFIBUS DP module
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
651
A.10.3
EM DP01 PROFIBUS DP module wiring diagram

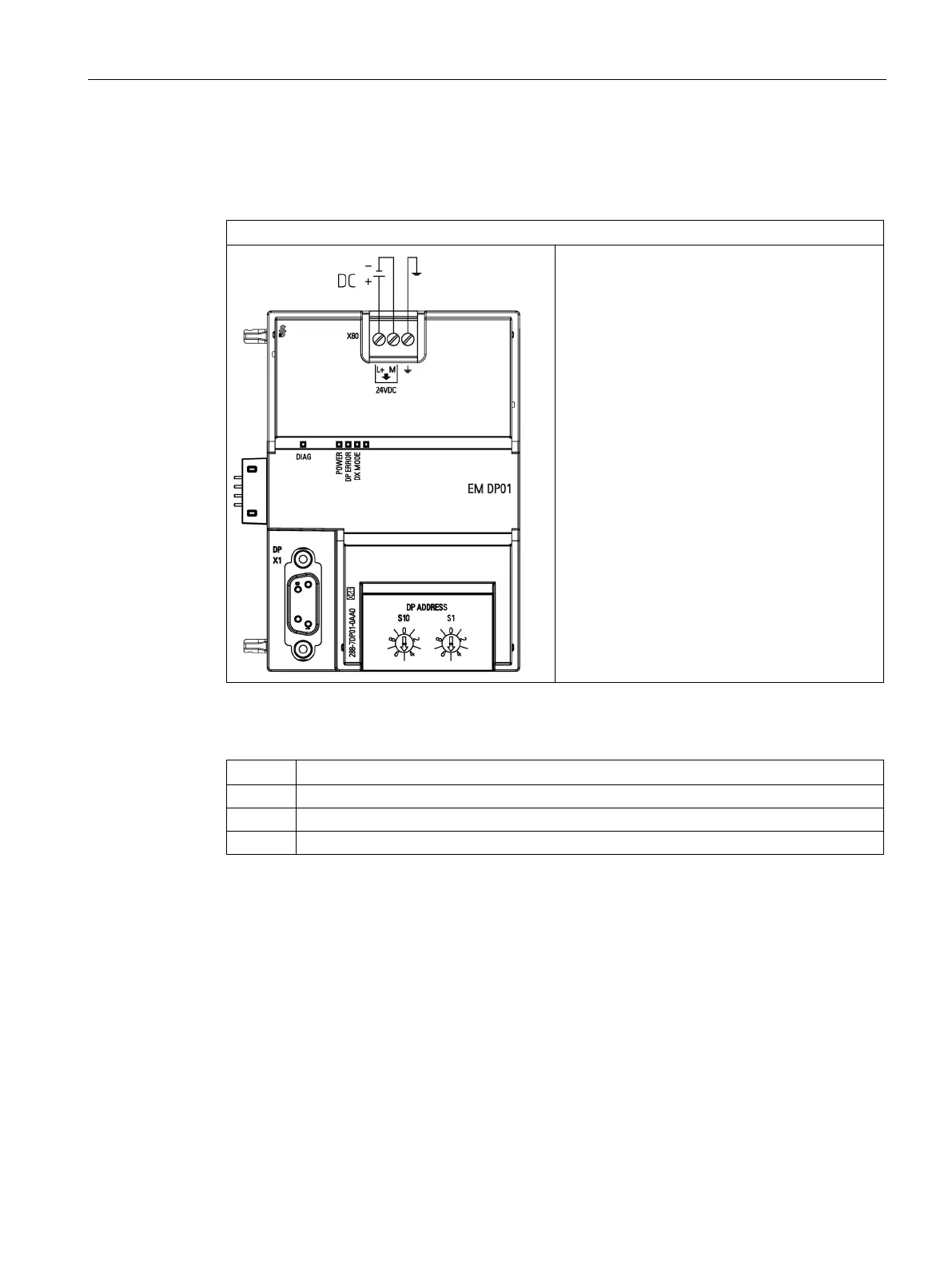

Table A- 152 Wiring diagram for the EM DP01 PROFIBUS DP module (6ES7 288-7DP01-0AA0
EM DP01 PROFIBUS DP module (6ES7 288-7DP01-0AA0)
Table A- 153 Connector pin locations for EM DP01 PROFIBUS DP module (6ES7 288-7DP01-0AA0)
Pin
X80
1
L+ / 24 V DC
2
M / 24 V DC
3
Functional Earth
