Technical specifications
A.3 Digital inputs and outputs expansion modules (EMs)
S7-200 SMART
604 System Manual, 09/2015, A5E03822230-AC

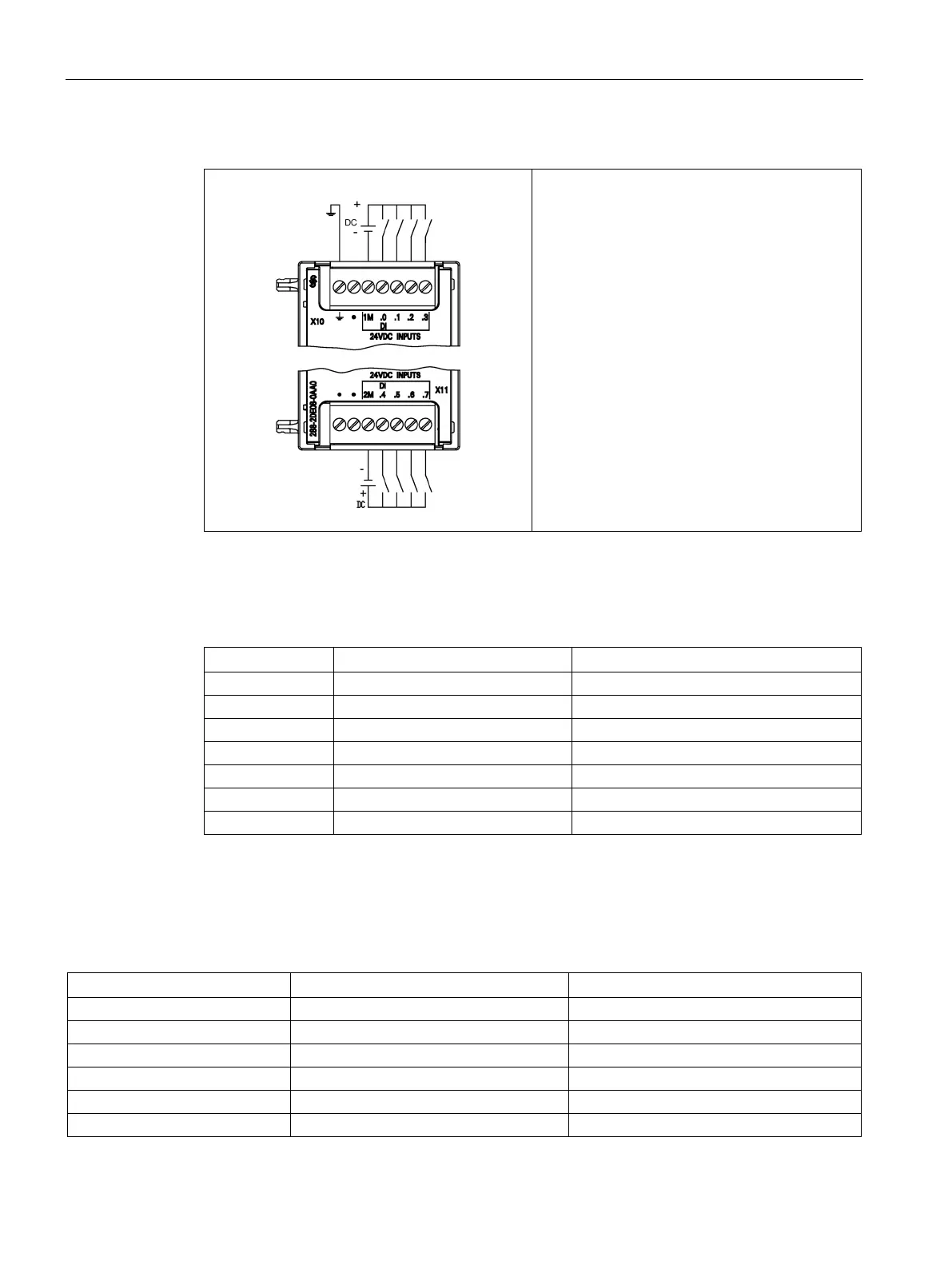

Table A- 67 Wiring diagram for the EM DE08 Digital 8 x Input (6ES7 288-2DE08-0AA0)
Table A- 68 Connector pin locations for EM DE08 Digital 8 x Input (6ES7 288-2DE08-0AA0)
Pin
X10
X11
1
Functional Earth
No connection
2
No connection
No connection
3
1M
2M
4
DI a.0
DI a.4
5
DI a.1
DI a.5
6
DI a.2
DI a.6
7
DI a.3
DI a.7
A.3.2
EM DT08 and EM DR08 digital output specifications
Table A- 69 General specifications
Model
EM Digital 8 x Outputs (EM DT08)
EM Digital Output 8 x Relay (EM DR08)
Article number
6ES7 288-2DT08-0AA0
6ES7 288-2DR08-0AA0
Dimensions W x H x D (mm)
45 x 100 x 81
45 x 100 x 81
Weight
147 grams
166.3 grams
Power dissipation
1.5 W
4.5 W
Current consumption (SM Bus)
120 mA
120 mA
Current consumption (24 V DC)
--
11 mA / Relay coil used
