Open loop motion control
12.9 Monitoring the Axis of Motion
S7-200 SMART
542 System Manual, 09/2015, A5E03822230-AC

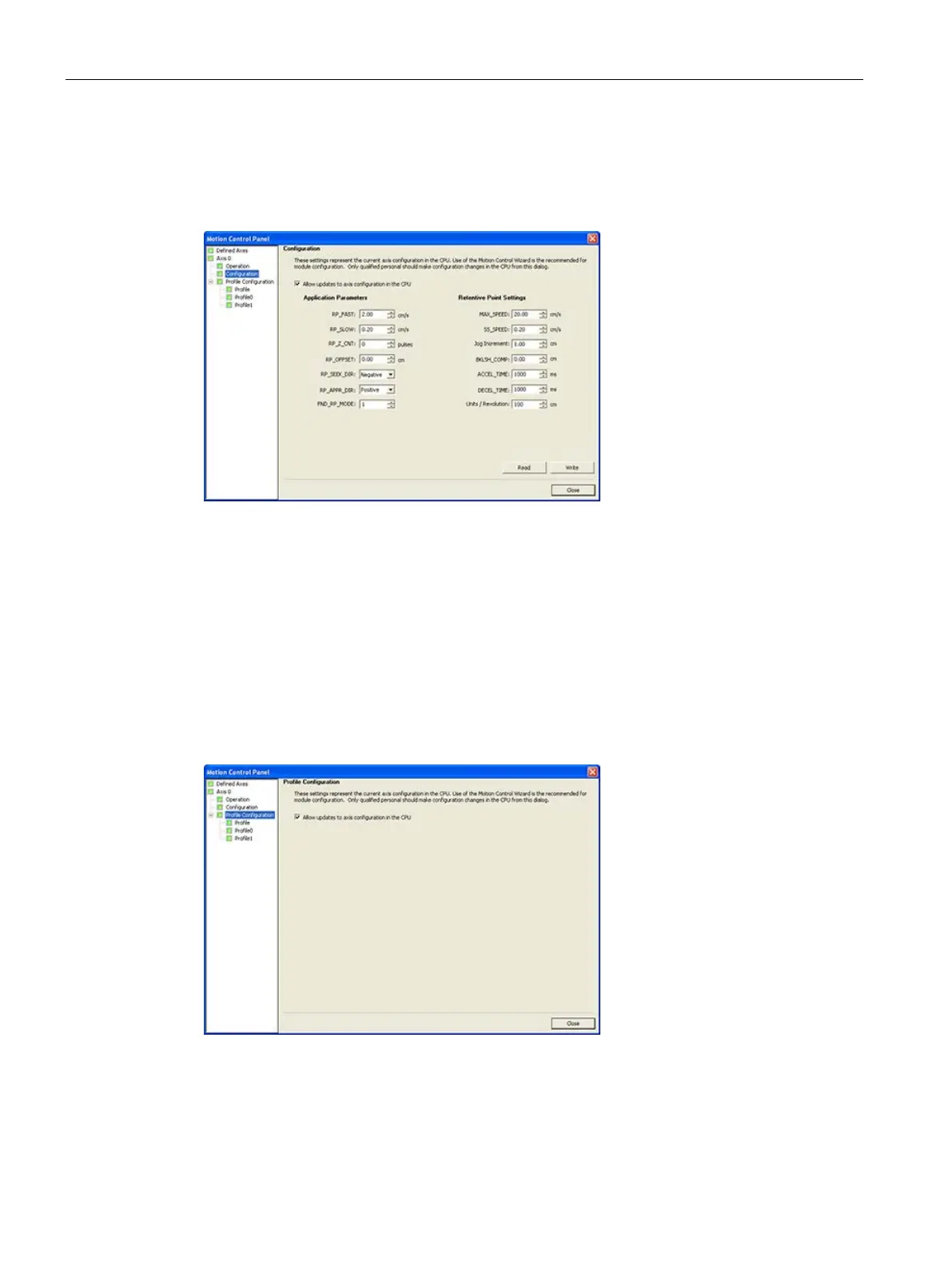

12.9.2
Displaying and modifying the configuration of the Axis of Motion
In the Configuration node, you can view and modify the configuration settings for the Axis of
Motion that is stored in the data block of the CPU.
After you modify the configuration settings, you simply click the write button to send the data
values to the CPU. These data values are not saved in your STEP 7-Micro/WIN SMART
project. You must manually make changes to your project that reflects the final values of
these fields.
12.9.3
Displaying the profile configuration for the Axis of Motion
In the Profile Configuration node, you can view the configuration of each profile for the Axis
of Motion.
