Open loop motion control
12.9 Monitoring the Axis of Motion
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
543

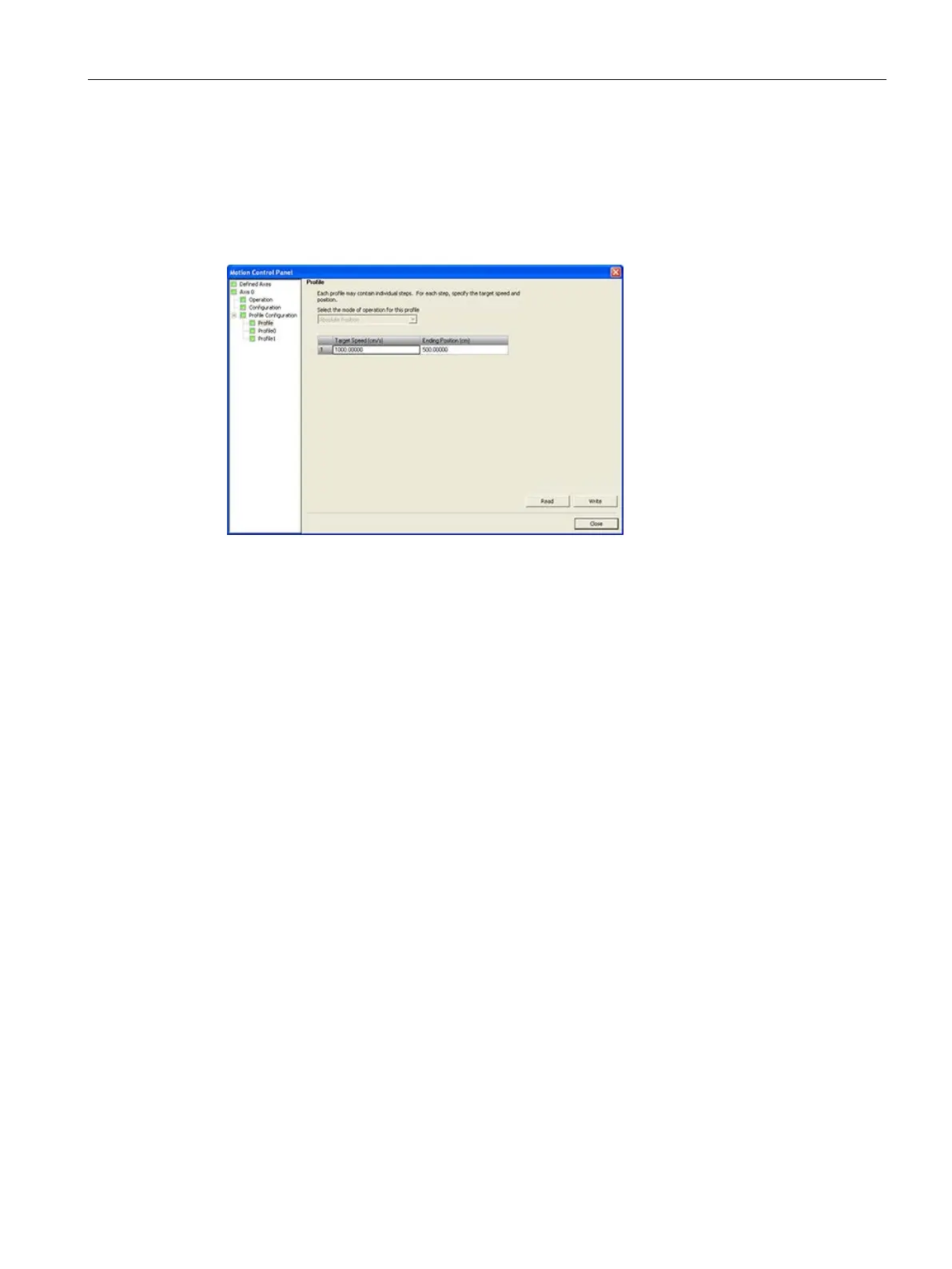

Click each profile to view its mode of operation and data values.
Some data values of the profile can be modified in this dialog. After you modify the
configuration settings, you simply click the write button to send the data values to the CPU.
These data values are not saved in your STEP 7-Micro/WIN SMART project. You must
manually make changes to your project that reflects the final values of these fields.

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
