PLC device configuration
6.1 Configuring the operation of the PLC system
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
141
Smoothing
You can also configure the module to smooth the thermocouple analog input signal over a
configured number of cycles, thus presenting an averaged value to the program logic. You
have four choices for the smoothing algorithm:
● None
● Weak
● Medium
● Strong
Source reference temperature
You configure a source reference temperature for each TC analog input module channel,
choosing one of the following options:
● Set by parameter
● Internal reference
Alarm configuration
You select whether to enable or disable the following alarms for the selected channel of the
selected TC analog input module:
● Wire break
● Upper limit exceeded
● Lower limit exceeded

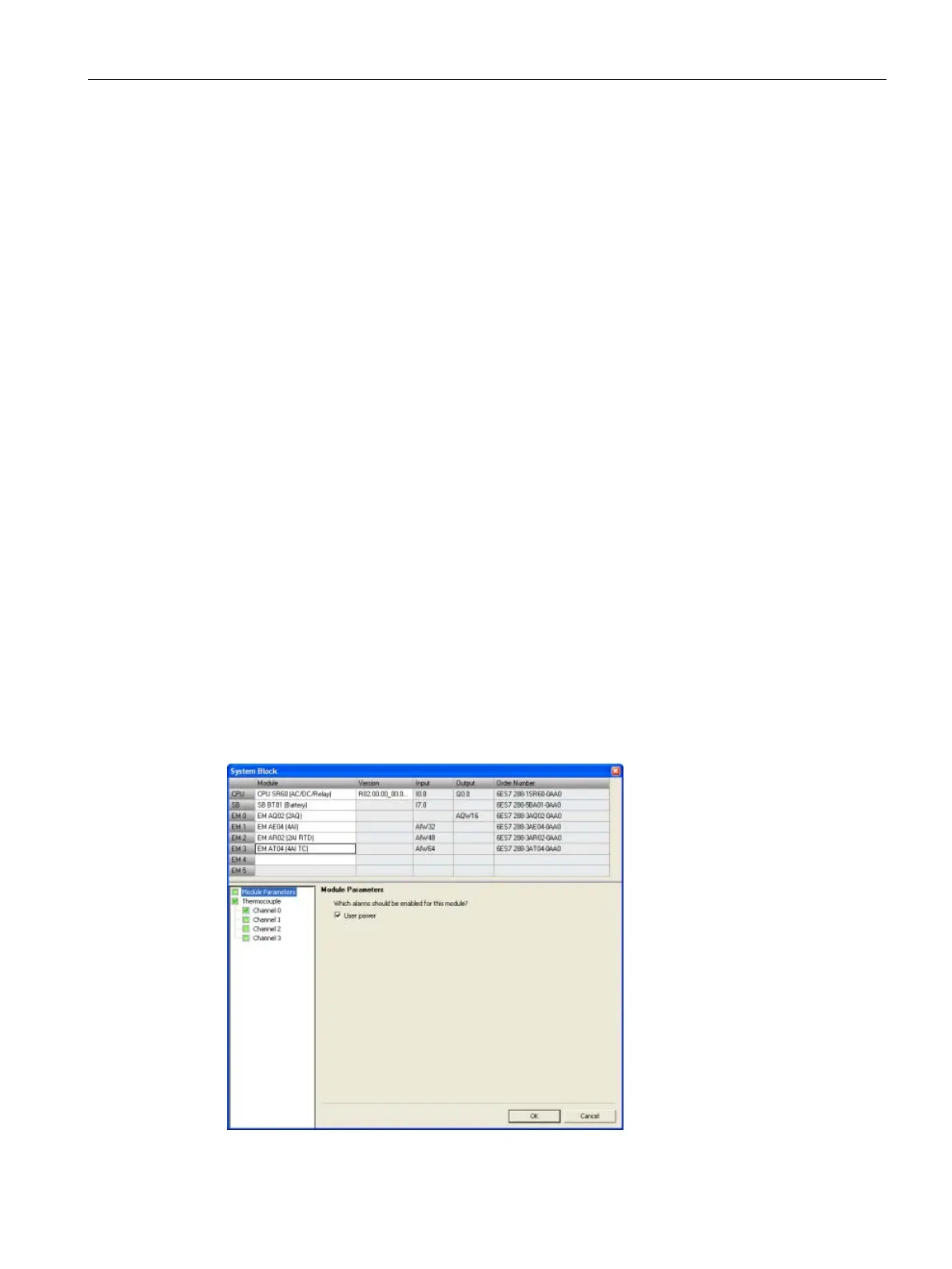

● User power (Configured in the system block "Module Parameters" node; see the figure
below.)

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
