Siemens Simatic S7 Series System Manual

Program instructions

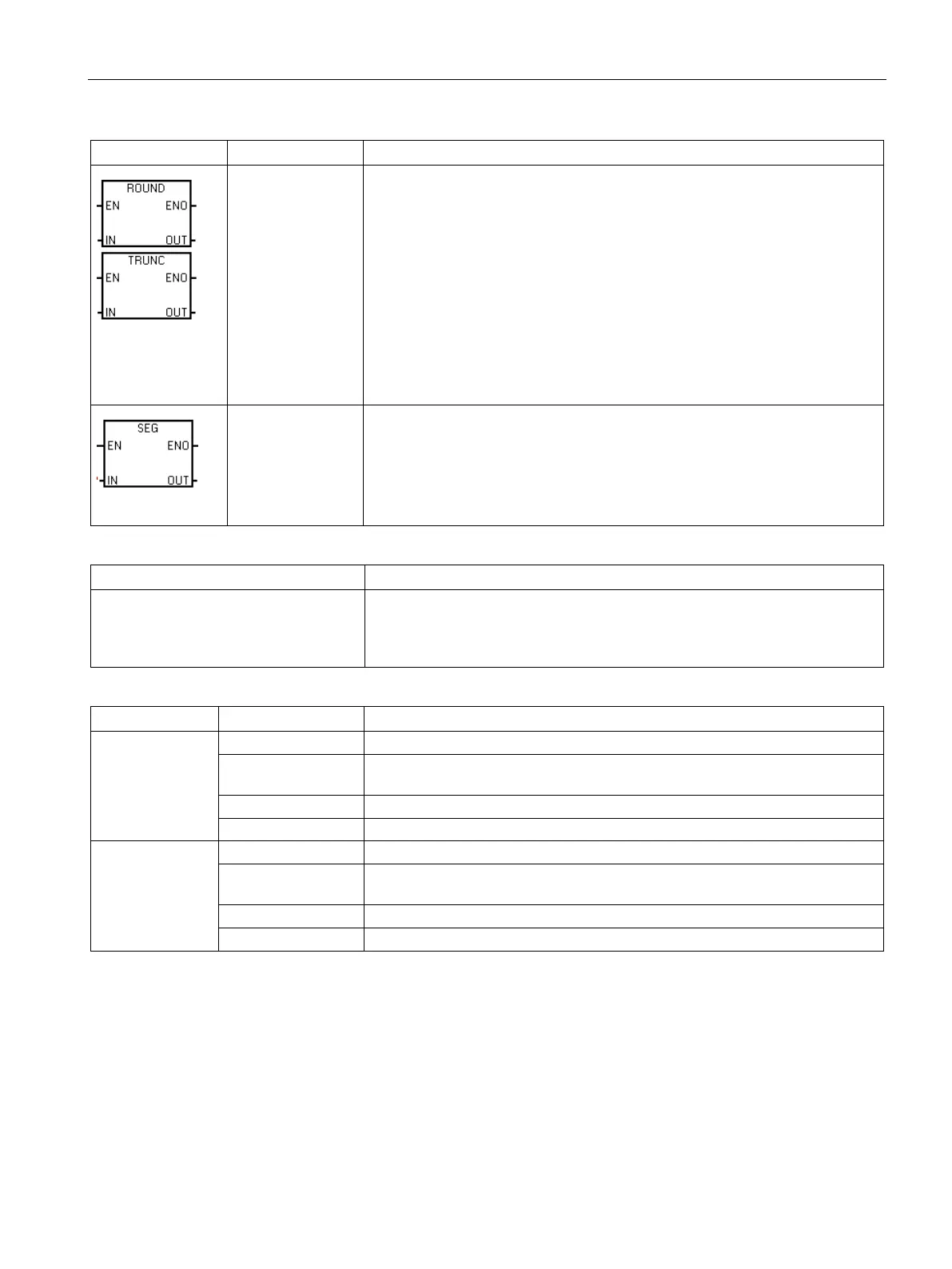

7.5 Convert
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
199
LAD / FBD
STL
Description
ROUND IN, OUT
TRUNC IN, OUT
Round
:
Convert the 32-bit real-number value IN to a double integer value and place the
rounded result at the address assigned to OUT. If the fraction portion is 0.5 or
greater, the number is rounded up.
Truncate
:
Convert the 32-bit real-number value IN into a double integer value and place
the result at the address assigned to OUT. Only the whole number portion of
the real number is converted, and the fraction is discarded.
Note:
If the value that you are converting is not a valid real number or is too
large to be represented in the output, then the overflow bit is set and the output
is not affected.
SEG IN, OUT
SEG:
To illuminate the segments of a seven-segment display, the Segment instruc-
tion converts the character byte specified by IN to generate a bit pattern byte at
the address assigned to OUT.
The illuminated segments represent the character in the least significant digit of
the input byte.
Non-fatal error conditions with ENO = 0
SM bits affected
• 0006H Indirect address
• SM1.1 Overflow
• SM1.6 Invalid BCD
• SM1.1 Overflow
• SM1.6 Invalid BCD
Input / output
Data type
Operand
IN
BYTE
IB, QB, VB, MB, SMB, SB, LB, AC, *VD, *LD, *AC, Constant
WORD (BCD_I,
I_BCD), INT
IW, QW, VW, MW, SMW, SW, T, C, LW, AIW, AC, *VD, *LD, *AC, Constant
DINT
ID, QD, VD, MD, SMD, SD, LD, HC, AC, *VD, *LD, *AC, Constant
REAL ID, QD, VD, MD, SMD, SD, LD, AC, *VD, *LD, *AC, Constant
OUT
BYTE
IB, QB, VB, MB, SMB, SB, LB, AC, *VD, *LD, *AC
WORD (BCD_I,
I_BCD)
IW, QW, VW, MW, SMW, SW, T, C, LW, AC, *VD, *LD, *AC
INT (B_I, DI_I)
IW, QW, VW, MW, SMW, SW, T, C, LW, AC,, AQW, *VD, *LD, *AC
DINT, REAL
ID, QD, VD, MD, SMD, SD, LD, AC, *VD, *LD, *AC
