Program instructions
7.8 Math
S7-200 SMART
260 System Manual, 09/2015, A5E03822230-AC
SM1.1 indicates overflow errors and illegal values. If SM1.1 is set, then the status of SM1.0
and SM1.2 is not valid and the original input operands are not altered. If SM1.1 and SM1.3
are not set, then the math operation has completed with a valid result and SM1.0 and SM1.2
contain valid status. If SM1.3 is set during a divide operation, then the other math status bits
are left unchanged.
Input / output
Data Type
Operand
IN1, IN2
INT
IW, QW, VW, MW, SMW, SW, T, C, LW, AC, AIW, *VD, *AC, *LD, Constant
DINT ID, QD, VD, MD, SMD, SD, LD, AC, HC, *VD, *LD, *AC, Constant
REAL
1
ID, QD, VD, MD, SMD, SD, LD, AC, *VD, *LD, *AC, Constant
OUT INT IW, QW, VW, MW, SMW, SW, LW, T, C, AC, *VD, *AC, *LD
DINT, REAL
ID, QD, VD, MD, SMD, SD, LD, AC, *VD, *LD, *AC
1
Real (or floating-point) numbers are represented in the format described in the ANSI/IEEE 754-1985 standard (single-
precision). Refer to that standard for more information.

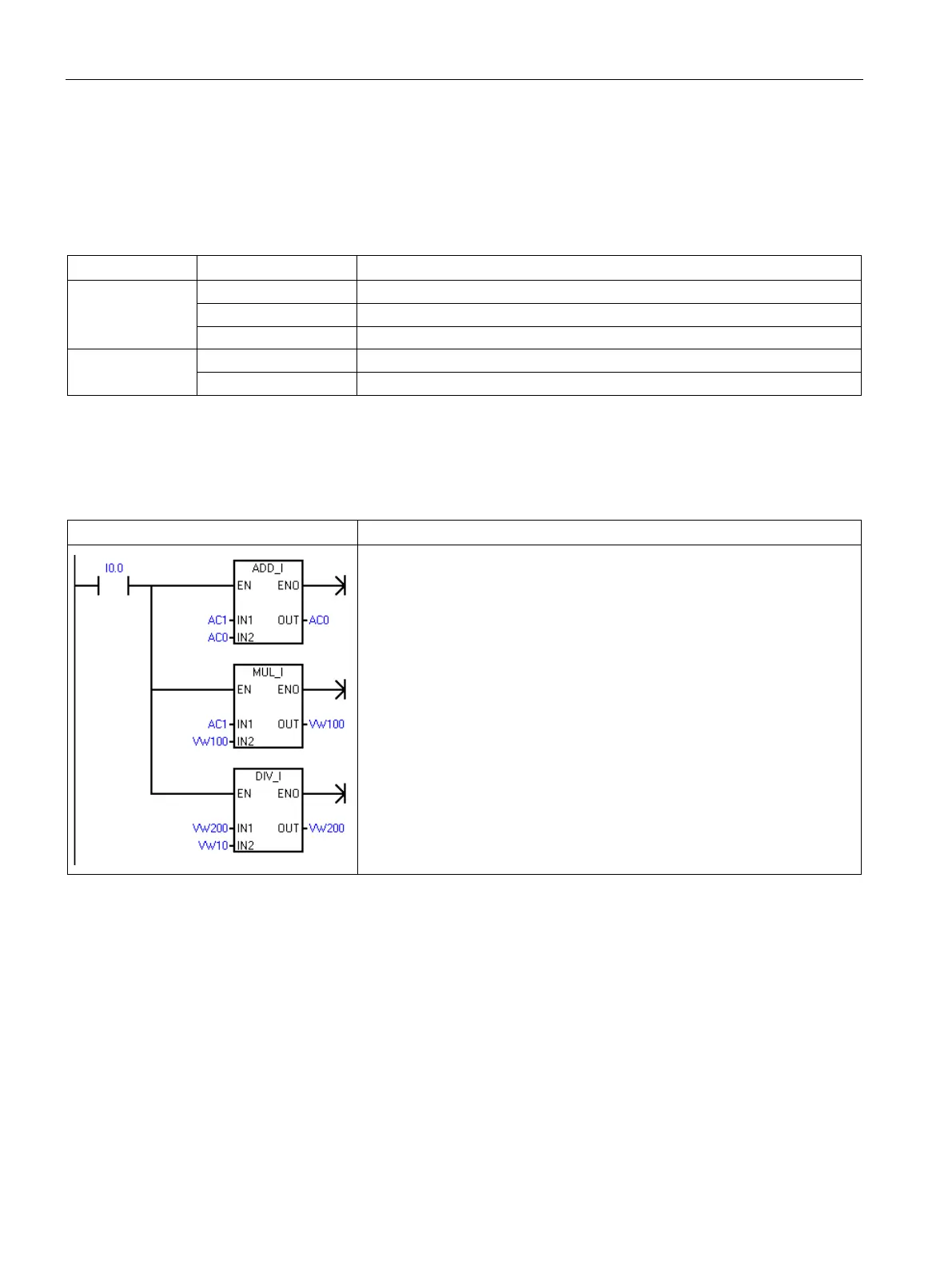

Example: Integer math instructions
LAD
STL
Network
LD I0.0
+I AC1, AC0
*I AC1, VW100
/I VW10, VW200

Siemens Simatic S7 Series Specifications

General

CPU	Varies by model (e.g., S7-300, S7-400, S7-1200, S7-1500)
Communication Interfaces	PROFIBUS, PROFINET, Ethernet, MPI
Programming	TIA Portal, STEP 7
Programming Languages	LAD, FBD, STL, SCL, GRAPH
I/O Modules	Digital, Analog, Specialty modules available
Operating Temperature	0°C to 60°C (standard models)
Mounting	DIN rail mounting
Operating Voltage	24V DC or 120/230V AC (varies by model)
Protection Class	IP20 (standard models)
Memory	Varies depending on the S7 model. Includes work memory (RAM) for program execution, load memory (EEPROM or Flash) for program storage, and system memory for operating system functions. Memory sizes range from kilobytes to megabytes.
