7.13 Program control
S7-200 SMART
310 System Manual, 09/2015, A5E03822230-AC

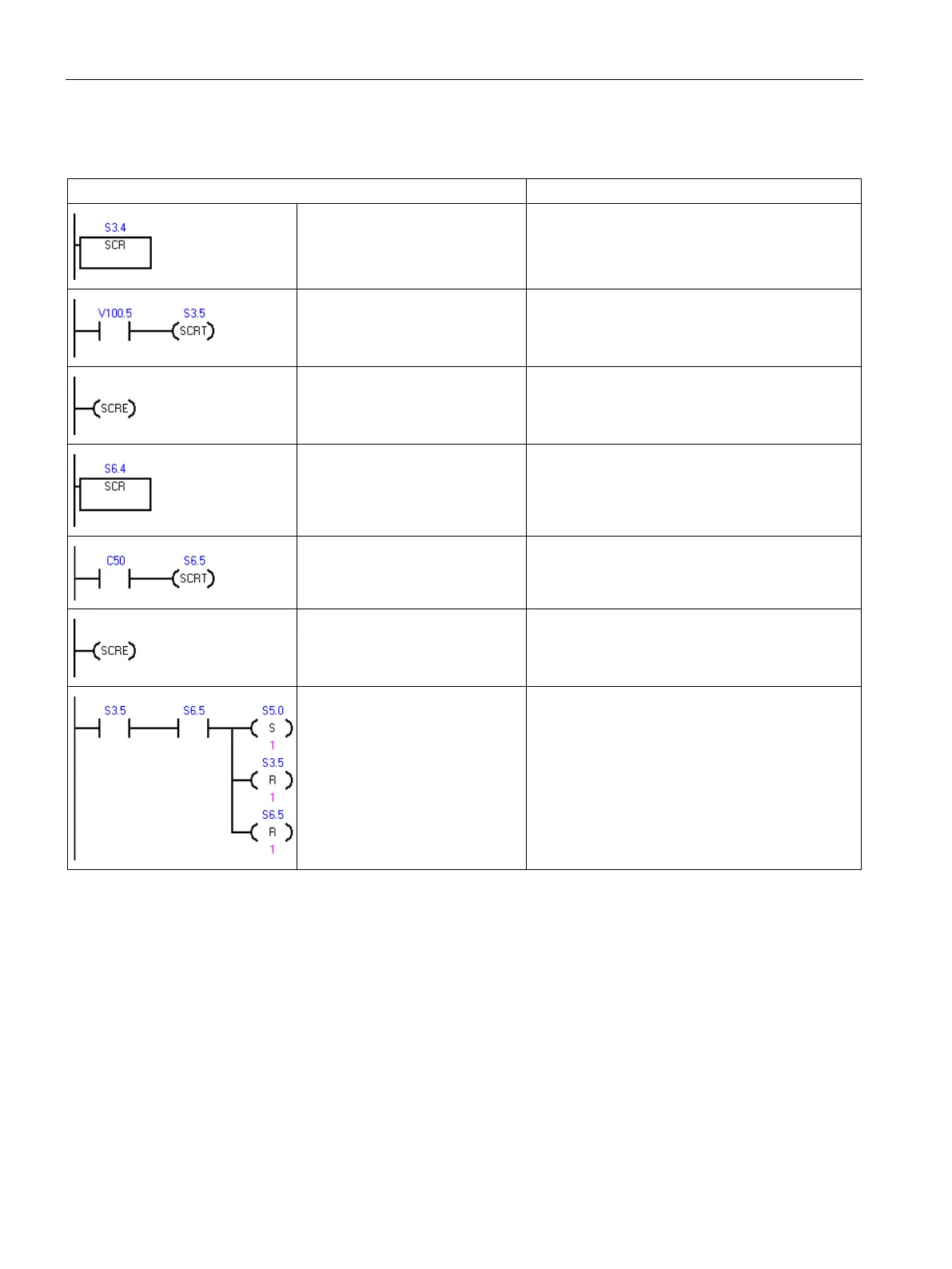

Example: SCR convergent flow control
LAD
STL
Beginning of state L control region
Network 1
LSCR S3.4
Transition to State L'
Network 2
LD V100.5
SCRT S3.5
End of SCR region for state L
Network 3
SCRE
Beginning of state M control re-
gion
Network 4
LSCR S6.4
Transition to state M'
Network 5
LD C50
SCRT S6.5
End of SCR region for state M
Network 6
SCRE
When both State L' and State M'
are activated:
• Enable State N (S5.0)
• Reset State L' (S3.5)
• Reset State M' (S6.5)
Network 7
LD S3.5
A S6.5
S S5.0, 1
R S3.5, 1
R S6.5, 1
