Siemens Simatic S7 Series System Manual

Program instructions
7.16 Table
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
327

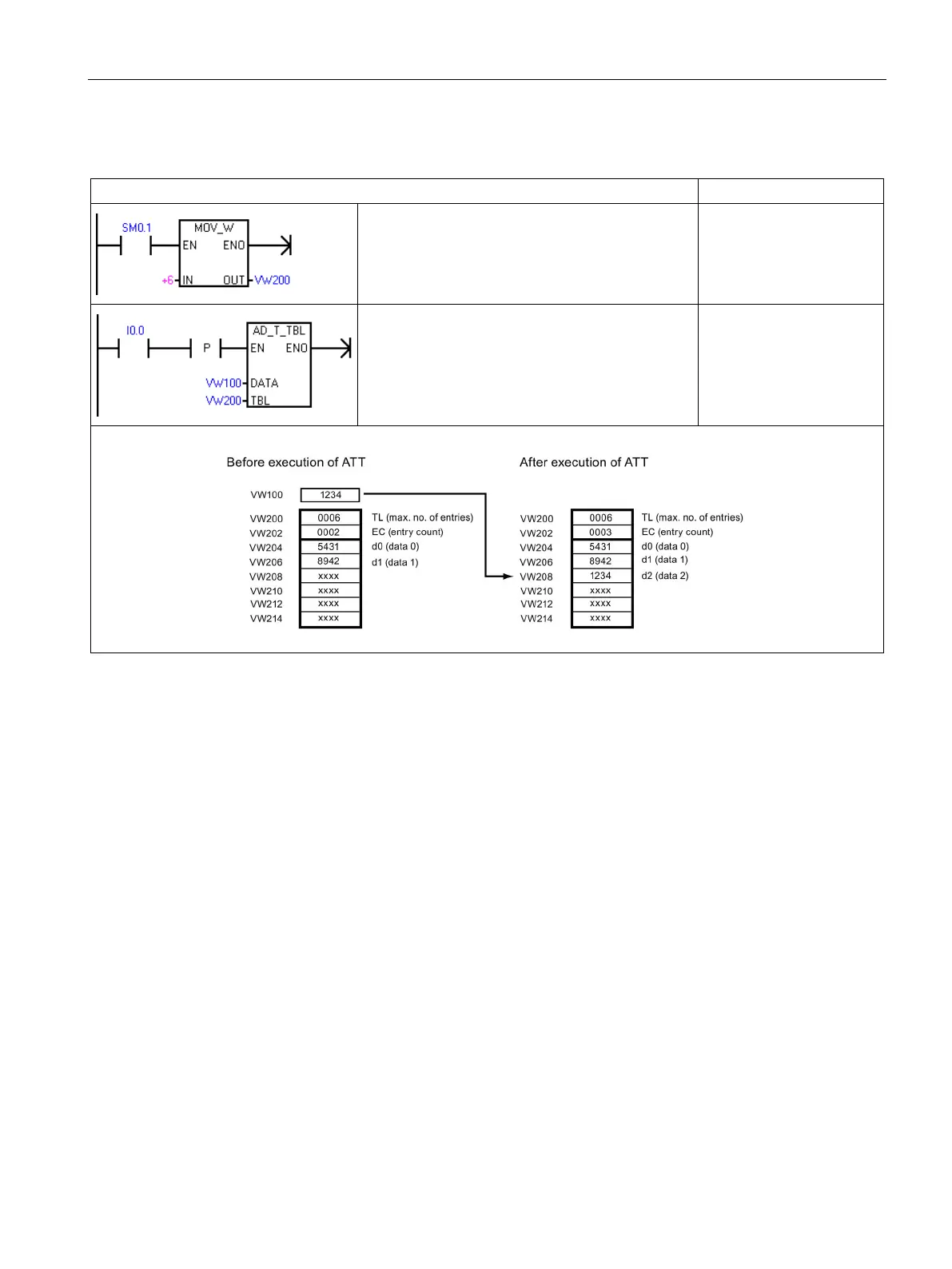

Example: Add to Table instruction
LAD
STL
On the first scan only, load the maximum table
length 6 to VW200.
Network 1
LD SM0.1
MOVW +6, VW200
When I0.0 makes a transition to 1, add a third data
value (from VW100) to the table at VW200. Two
data entries were previously stored in the table
which can hold up to six entries.
Network 2
LD I0.0
ATT VW100, VW200
