Technical specifications
A.3 Digital inputs and outputs expansion modules (EMs)
S7-200 SMART
606 System Manual, 09/2015, A5E03822230-AC

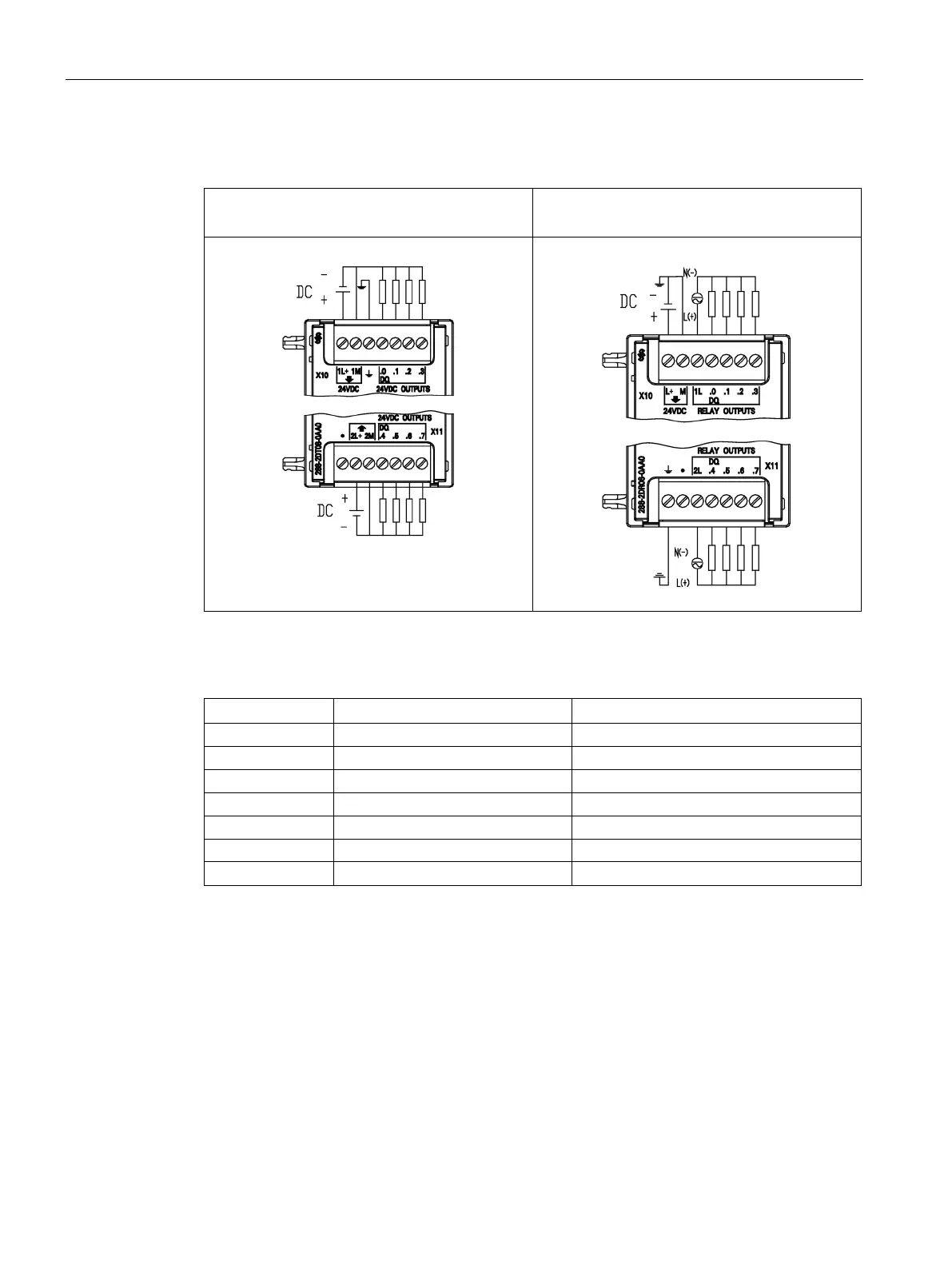

Table A- 71 Wiring diagrams for the EM DT08 Digital 8 x Outputs (6ES7 288-2DT08-0AA0) and EM
DR08 Digital 8 x Outputs x Relay (6ES7 288-2DR08-0AA0)
EM DT08 Digital 8 x Outputs
(6ES7 288-2DT08-0AA0)
EM DR08 Digital 8 x Outputs x Relay
(6ES7 288-2DR08-0AA0)
Table A- 72 Connector pin locations for EM DT08 Digital 8 x Outputs (6ES7 288-2DT08-0AA0
Pin
X10
X11
1
1L+ / 24 V DC
No connection
2
1M / 24 V DC
2L+ / 24 V DC
3
Functional Earth
2M / 24 V DC
4
DQ a.0
DQ a.4
5
DQ a.1
DQ a.5
6 DQ a.2 DQ a.6
7
DQ a.3
DQ a.7
