Programming concepts
5.4 Data block (DB) editor
S7-200 SMART
System Manual, 09/2015, A5E03822230-AC
99

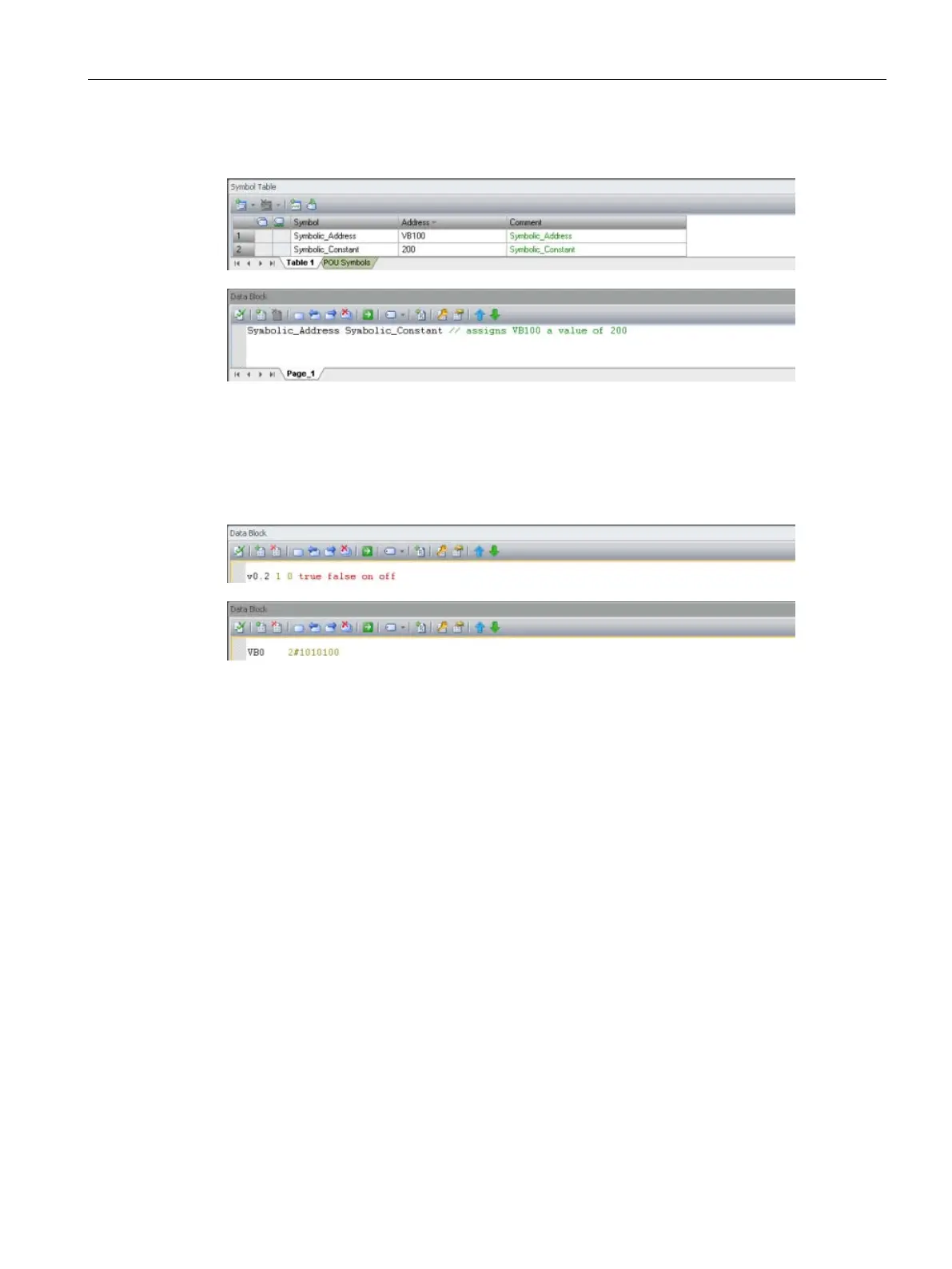

Example: Symbolic address and symbolic number assignment
Example: Alternate binary entry methods and resultant binary assignment
You can enter values of 1 or 0 for binary assignments, or "true", "false", "on" or "off" (in either
lower, upper, or mixed case). The data block editor interprets your entry and shows the
resultant binary assignment.
