CONVEYOR ENHANCEMENTS
Wire Belt Splicing Steps
2-9317-600-00-0 Aquastorm™ Series Options Guide 6-127

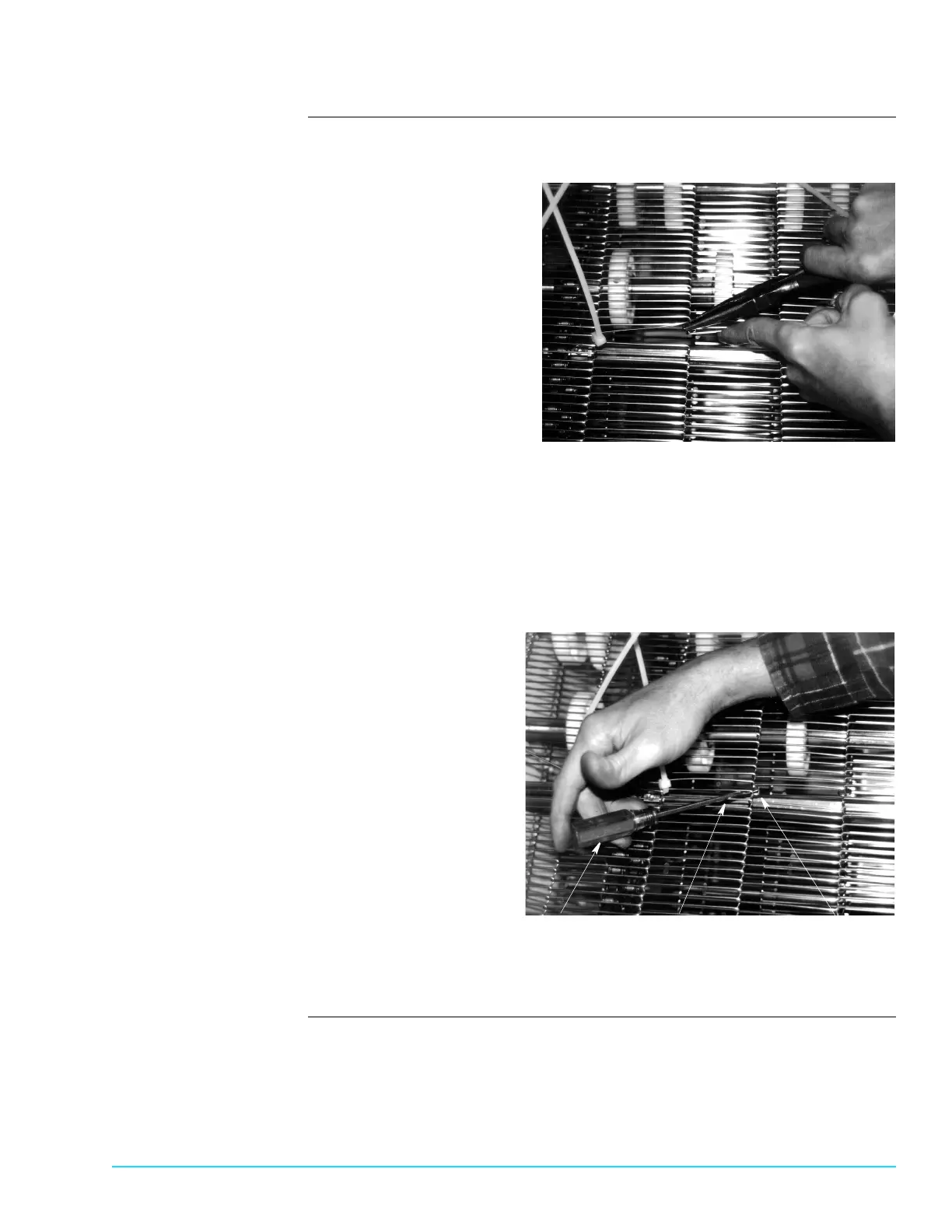

5. Use a pair of needle nose pliers to grasp one (1) end of the splicing link. Insert
the loop end over the belt link being spliced.
When the loop end of the splicing link is properly inserted, the loop end of the
splicing link extends below the wire belt.
6. Use a small flat head screwdriver.
7. Insert the screwdriver under the wire belt link, opposite the side already
looped.
8. Insert the tip of the screwdriver into the splicing link loop and apply down-
ward pressure on the loop by pulling the screwdriver up.
9. Leave the screwdriver tip inserted in the belt linking loop.
10.Continue to apply pressure on the handle of the screwdriver.
Pull Up on
Screwdriver
Handle
Insert
Screwdriver
Here
Screwdriver
Tip in Splicing
Link Loop
