CONVEYOR ENHANCEMENTS
Wire Belt Splicing Steps
6-128 Aquastorm™ Series Options Guide Rev. 1
6
11.To complete the splice, press the open end of the belt linking loop on the
splicing link onto the wire belt link where the screwdriver was first inserted.
12.Repeat Step 4. through Step 11. to connect the opposite end of the belt link-
ing loop and any other linking loops.
13.Cut and remove plastic wire ties previously used to hold belt sections
together.

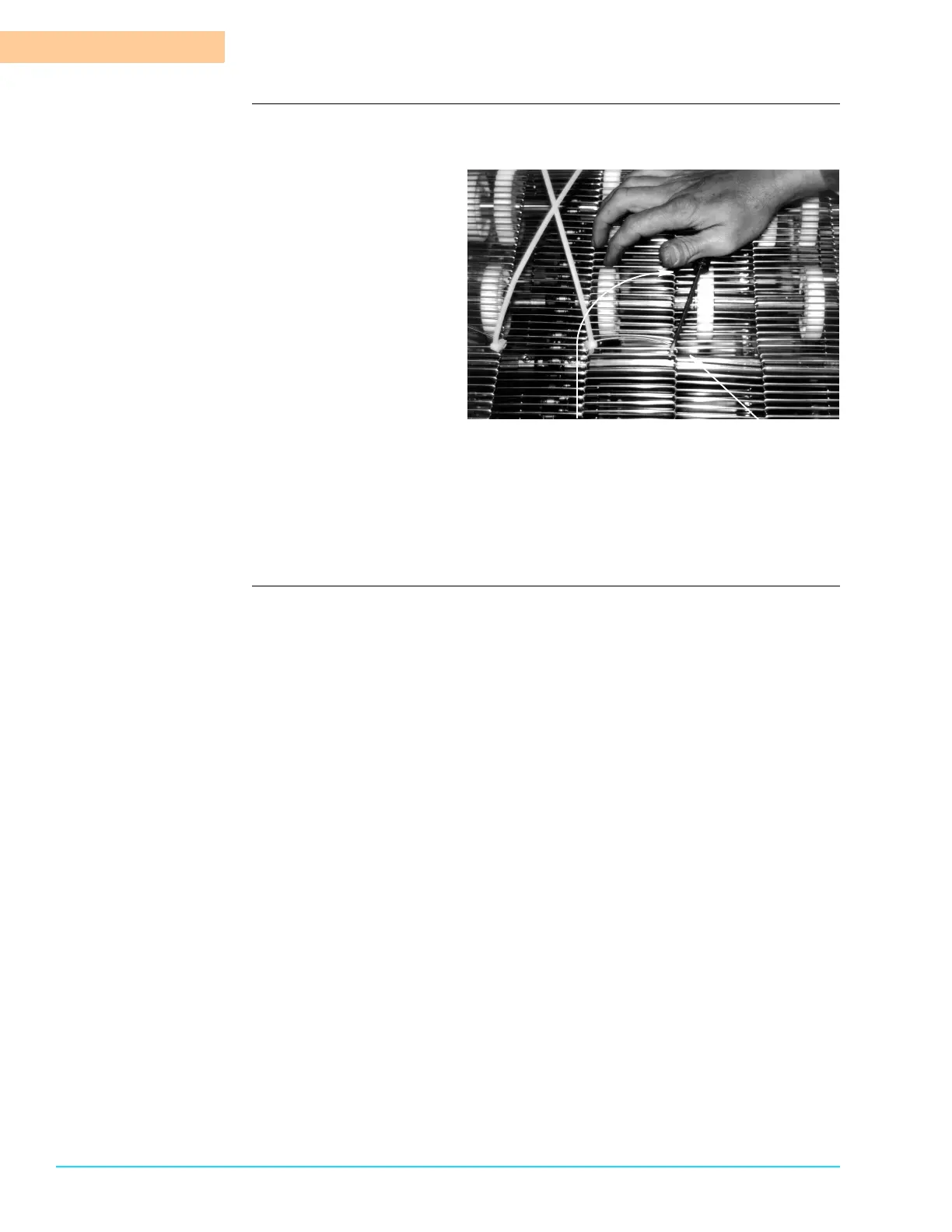

Screwdriver
Handle
Direction
Catch Wire
Belt Link Here
