DRYER ADD-ON MODULES
Install Dryer Module
14-262 Aquastorm™ Series Options Guide Rev. 1
14

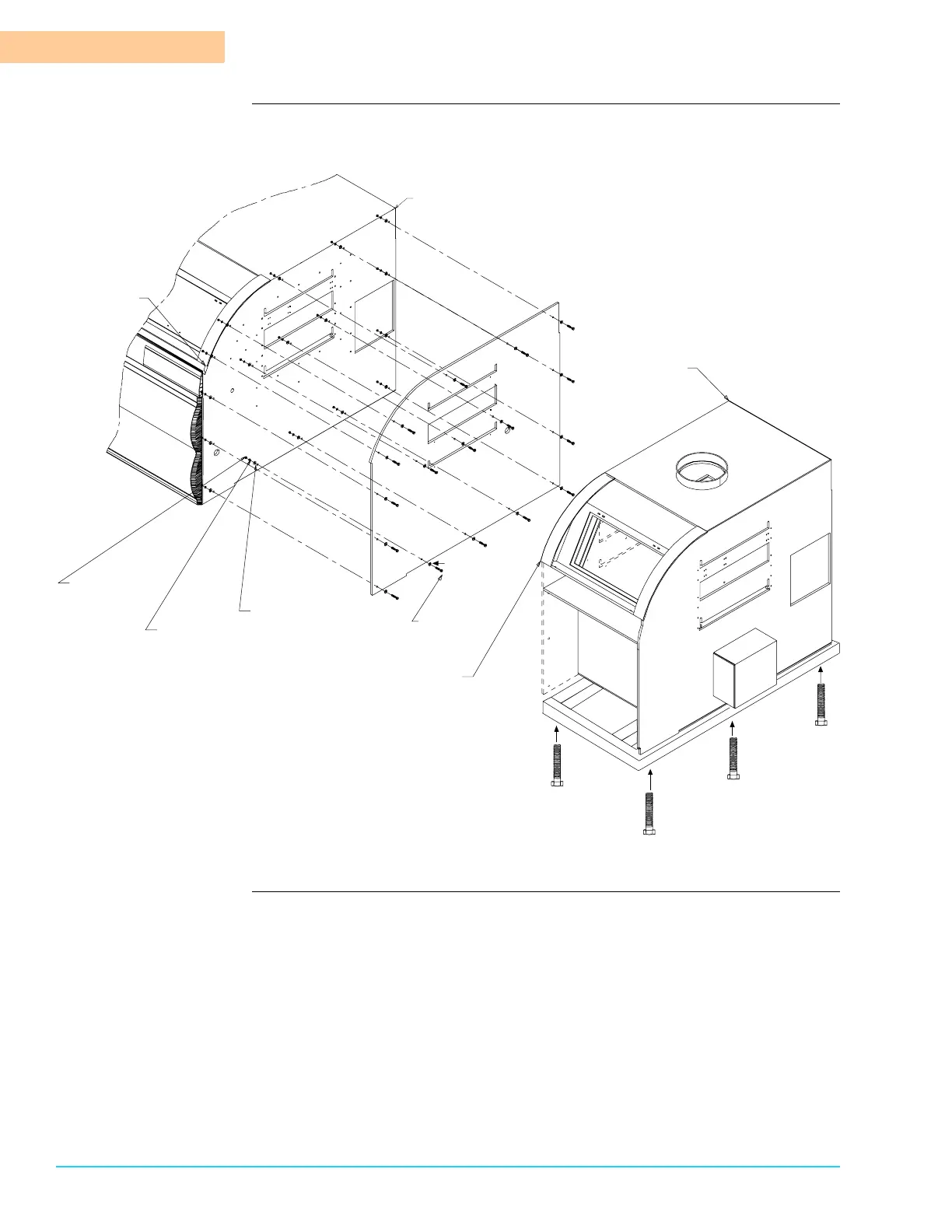

Drawing Figure 14–5 shows the steps for bolting on a single add-on dryer to the end of an
Aquastorm™ system.
Figure 14–5
M8 Hex Nut
M8 Lock Washer
M8 Flat Washer
M8 x 50 Hex
Head Bolt
M8 Flat
Washer
Bolt Thru Dryer Entrance Bulkhead
and Cabinet Exit Bulkhead using M8
Hardware (17 Sets)
Aluminum
Rail/Front
Alignment
Point
Rear Alignment
Point
Front
Alignment
Point
Rear Alignment
Point
