DRYER MODIFICATIONS
Configuration
15-286 Aquastorm™ Series Options Guide Rev. 1
15

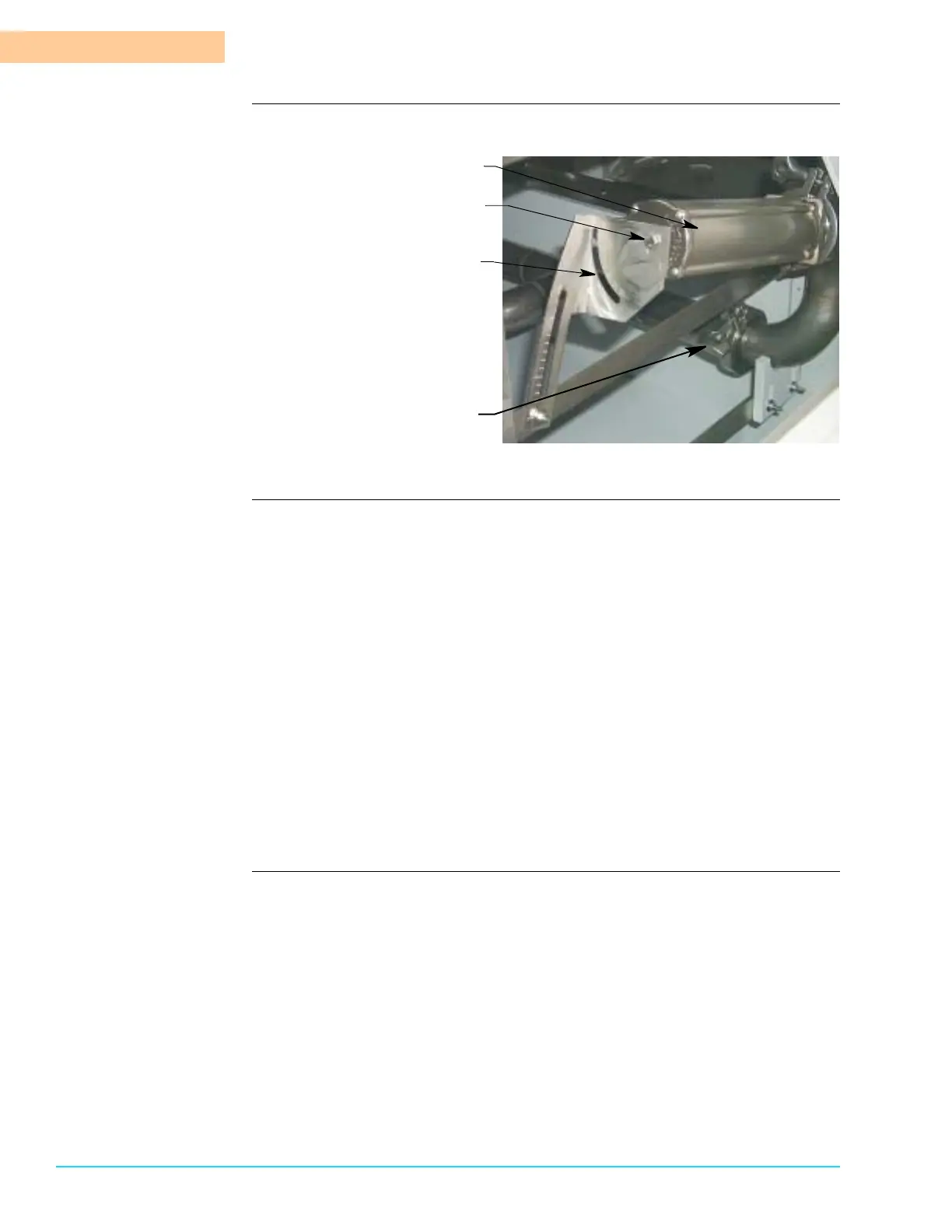

Photograph Figure 15–11 shows the airknife direction adjustment bracket.
Figure 15–11
Procedure Use the following steps to adjust the SCAT airknife direction:
1. Ensure system power is Off.
2. Open Dryer #1 or optional Dryer #3 window and remove the internal glass.
Set it aside in a safe place.
3. Use the 8 mm hex head wrench to loosen the M5 flathead bolt holding the
airknife direction adjustment bracket in place.
4. Loosen the plumbing line quick release clamp to allow for the adjustment.
5. Slowly turn the airknife up or down the direction adjustment bracket until the
desired angle is reached.
6. Use the 8 mm hex head wrench to tighten the M5 flathead bolt and hold the
airknife direction adjustment bracket in place.
7. Tighten the plumbing line quick release clamp loosened in Step 4.
8. Replace the internal glass cover in Dryer #1 or optional Dryer #3 and close
the dryer module window.
9. If necessary, adjust the rear SCAT airknife using the procedure on page 287.
SCAT Airknife
Airknife Direction
Adjustment Bracket
M5 Flathead Bolt
Quick Clamp
To Next Page
