DRYER MODIFICATIONS
Configuration
2-9317-600-00-0 Aquastorm™ Series Options Guide 15-287

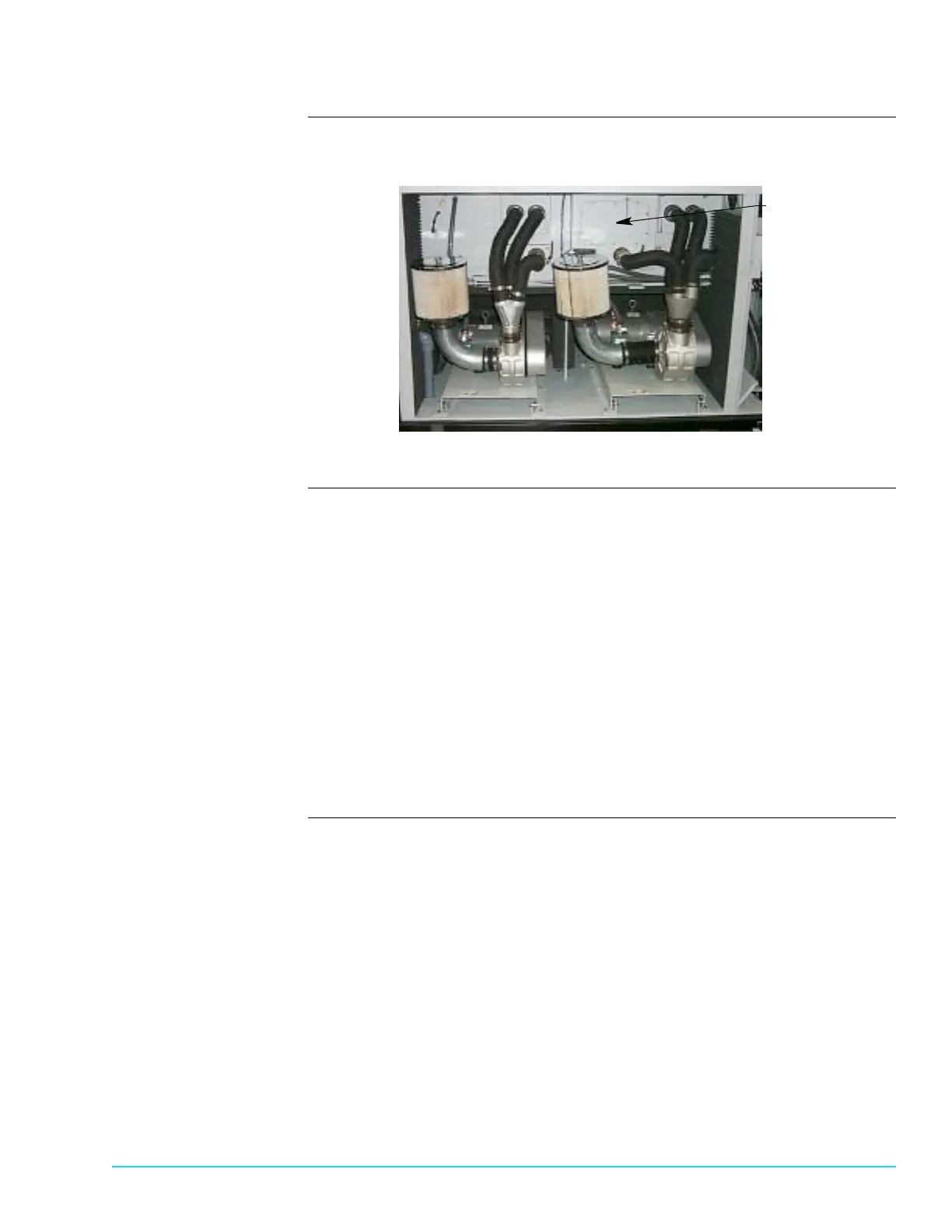

Photograph Figure 15–12 shows the rear blower section and identifies the SCAT access door
location.
Figure 15–12
Procedure Use the following steps to access the rear SCAT airknife for vertical adjustment:
1. Ensure system power is Off.
2. Remove system rear access panels to access the rear blower section.
3. Use a Phillips screwdriver to remove the SCAT access door. Set the door and
screws aside in a safe place.
4. For vertical adjustments follow the vertical adjustment procedure on page
285.
5. For airknife angle adjustments follow the angle adjustment procedure on page
286.
6. Use a Phillips screwdriver to replace the SCAT access door.
7. Replace system rear access panels.
8. Resume system operation. For detailed information refer to the Aquastorm
200™ or Aquastorm 100™ Programming and Operations Guide.
