BLOWER ENHANCEMENTS
Remove/Replace the Blower Belt
16-324 Aquastorm™ Series Options Guide Rev. 1
16

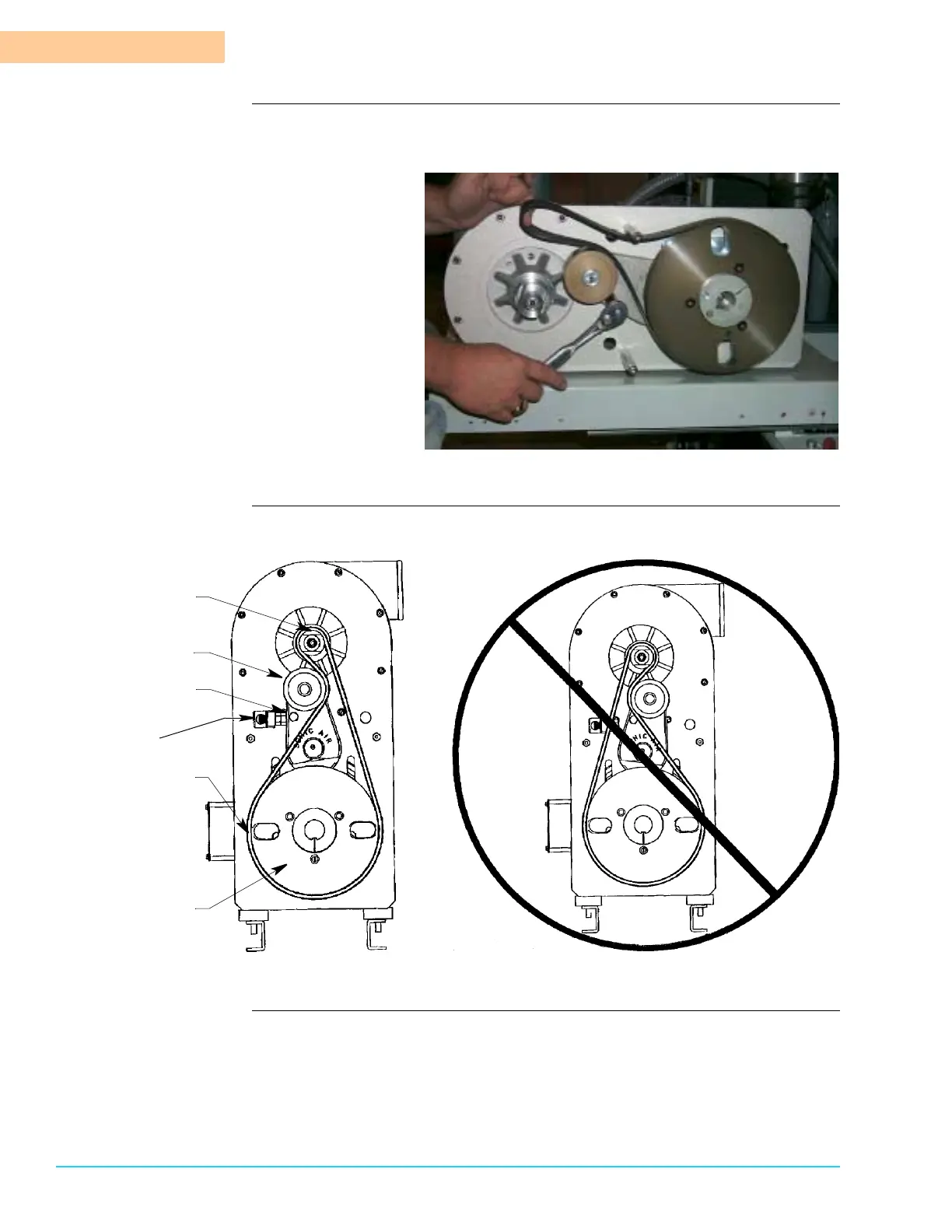

Photograph Figure 16–15 shows the belt looped around the large wheel and threaded
between the pin and smaller wheel.
Figure 16–15
Diagrams Figure 16–16 shows correct and incorrect belt installation configurations.
Figure 16–16
Bumper
(Model 100 Only)
Spring Load
Belt Tensioner
Blower Pulley
Motor Pulley
Belt
Bolt for
Socket Wrench
