SUMP PUMP
Sump Pump Installation
17-332 Aquastorm™ Series Options Guide Rev. 1
17

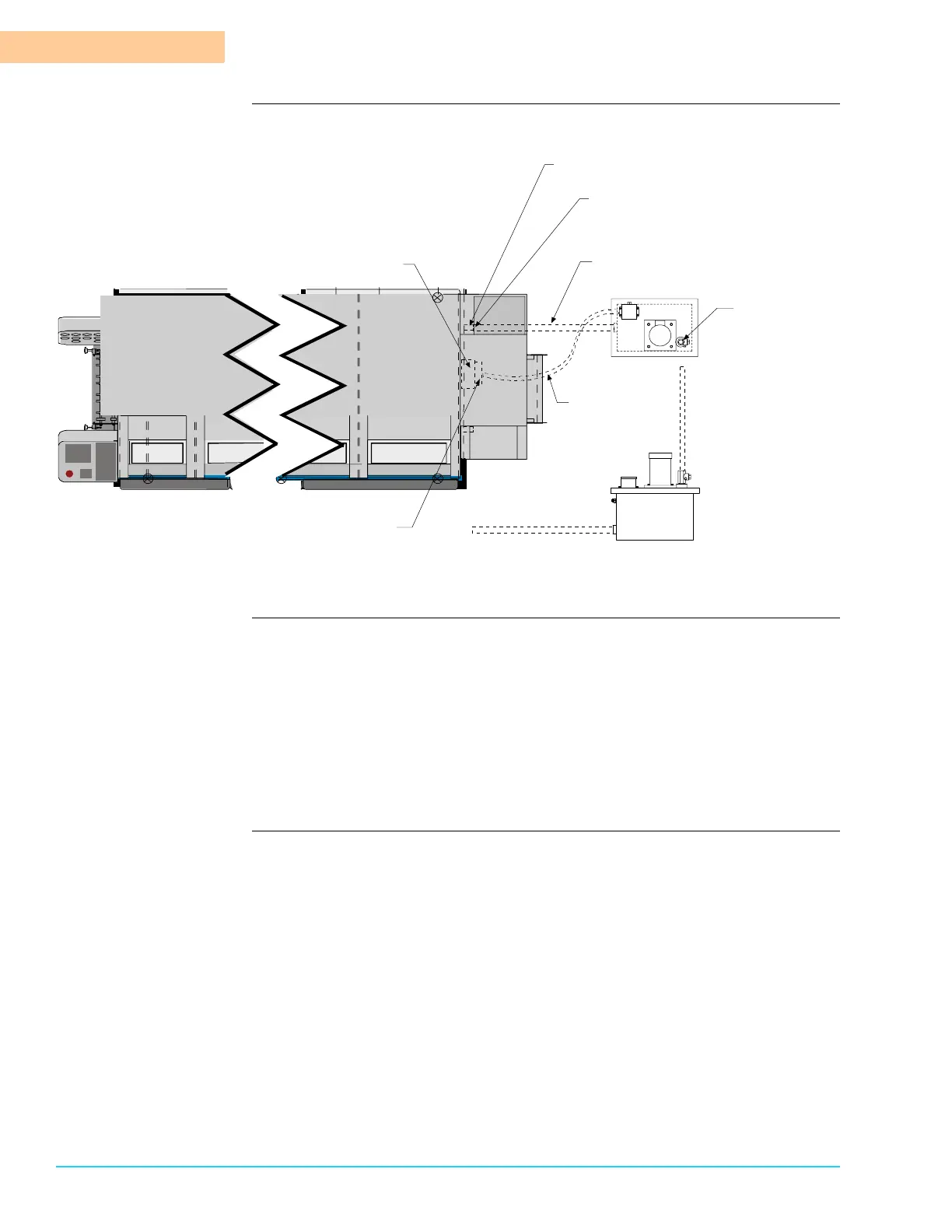

Diagram Figure 17–2 shows the sump pump installation reference drawing.
Figure 17–2
Tools required Use the following tools and supplies to install the sump pump:
• One (1) 1½ in. CPVC drain pipe maximum length of 610 cm (20 in.)
• Lengths of 1 in. facility drain pipe
•Teflon
©
Tape
• CPVC Cement and Solvent
• Channel lock pliers
• Pipe wrench
Connect Sump Inlet (1
1
/
2
in. NPTF)
to Aquastorm System™ standard
1
1
/
2
" NPTM drain at cabinet exit end
1
1
/
2
in. CPVC drain from system
to Sump (Customer Supplied)
Connect Sump Outlet
to 1.0 in. NPTF Facility
Drain (Customer
Supplied plumbing)
Sump Outlet
1.0 in. NPTF
Sump Side View
Receptacle
Install a Union or coupling Here
Connector
Cable
Connect Plug #PG26 from
Sump into Sump receptacle at
exit end of cabinet labeled PG26
To Next Page
