CONVEYOR ENHANCEMENTS
Inlet Conveyor Extension Installation
2-9317-600-00-0 Aquastorm™ Series Options Guide 6-81

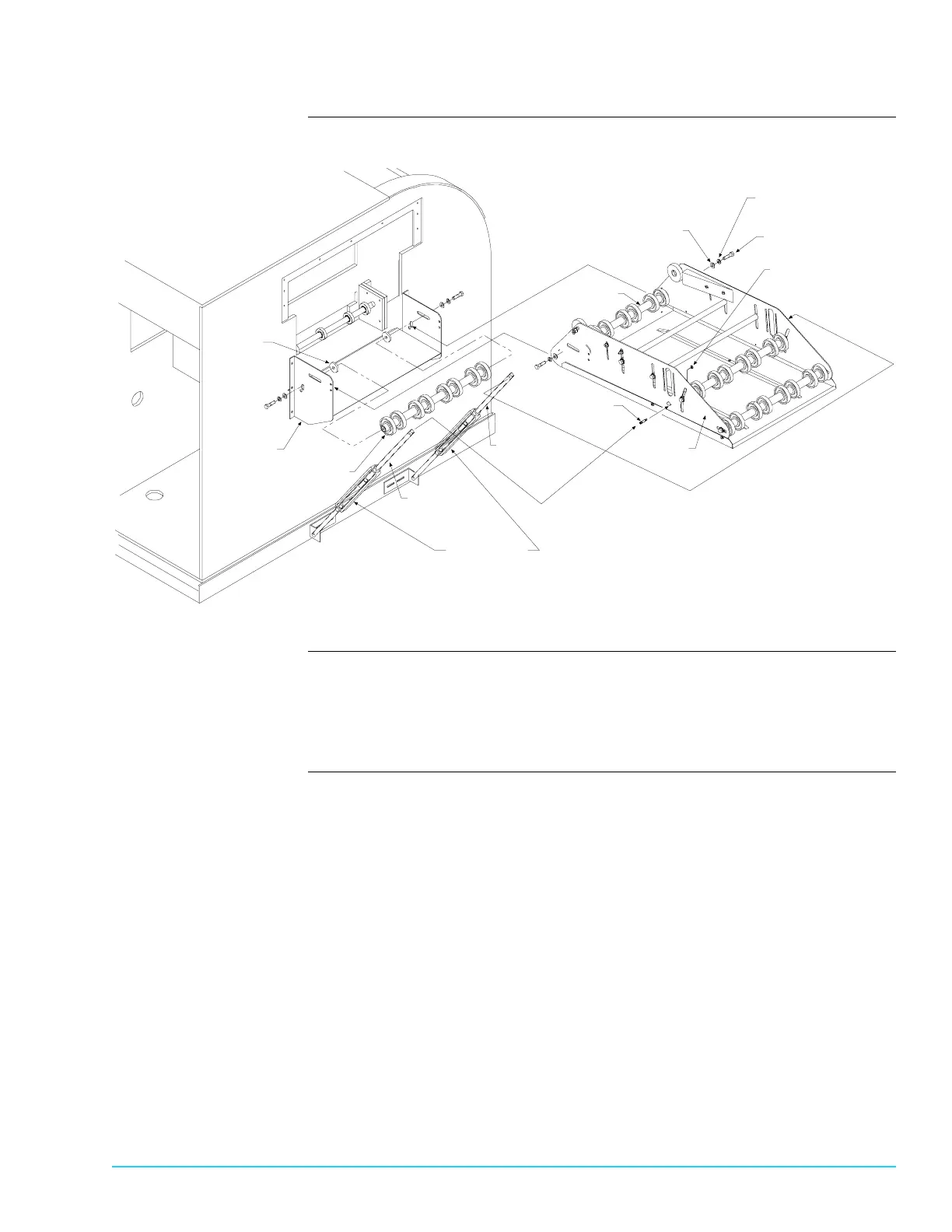

Diagram Figure 6–3 shows the inlet conveyor extension installation drawing
Figure 6–3
Tools Use the following tools to install the inlet conveyor extension:
• 8 mm Box Wrench
• 13 mm Box Wrench
• 5 mm Allen Wrench
M8 x 40 SST
Hex Head Bolt
M8 SST Split
Lock Washer
M8 SST
Flat Washer
Idler Shaft
Assembly
Conveyor
Bracket
Spacer
8 x M6 x 20
Socket Head
Shoulder Bolt
M5 SST Hex Nut
Idler Shaft
Assembly
Left and Right
Turnbuckles
Right Threaded
Height Adjust Rod
Left Threaded
Height Adjust Rod
Side Plate
