Topcon Pocket-3D - Page 116

Data Menu
Pocket-3D Reference Guide
3-6
3. On the Surface(s) dialog box (Figure 3-9), select the surface to
import from the list. Then press Next.

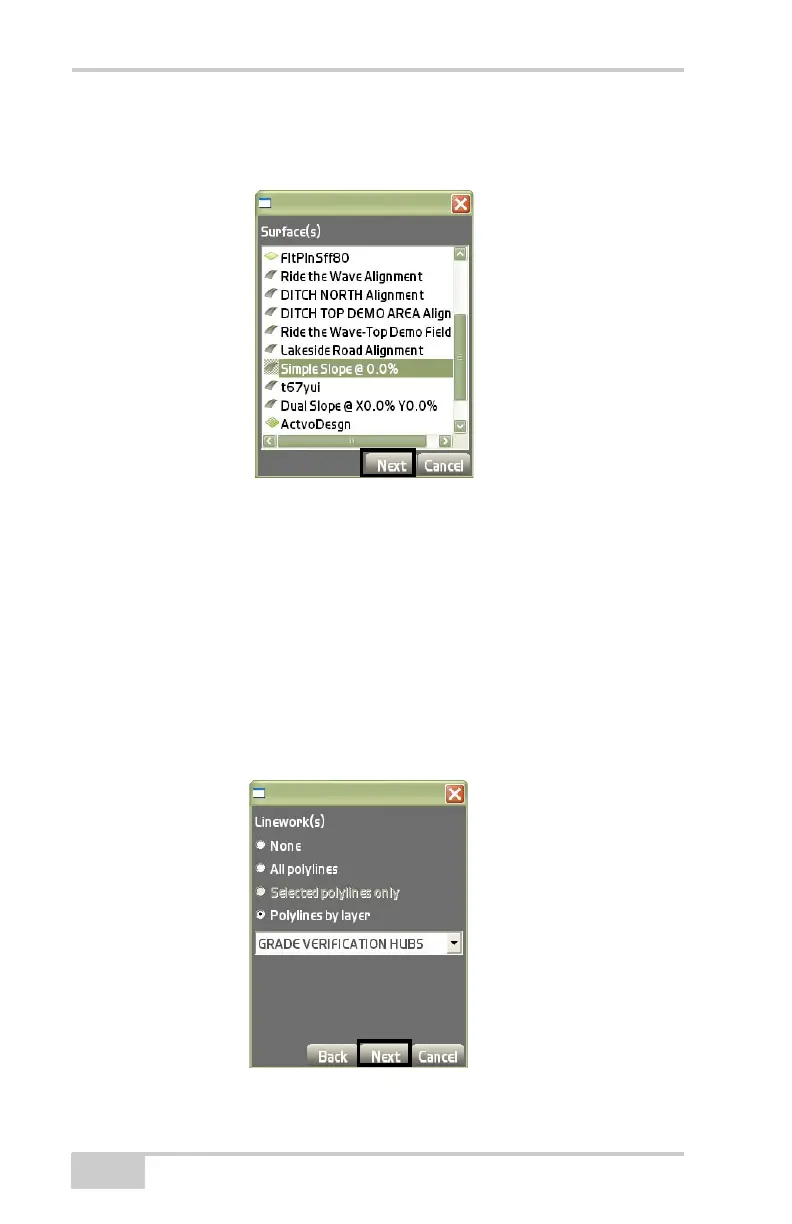

Figure 3-9. Select a Surface File to Import
4. On the Linework(s) dialog box (Figure 3-10), select one of the
following, then press Next:
• None – enable to display no polylines.
• All polylines – enable to display all polylines in the project.
• Selected polylines only – available only if polylines are
highlighted (selected) on the main screen.
• Polylines by layer – enable to select a layer to import from
the drop-down list.
Figure 3-10. Select Lineworks for the Project
