Digital Operator Fn013
& Σ-7-Series Digital Oper-
ator Operating Manual
(Manual No.: SIEP
S800001 33)
SigmaWin+ Setup - Multiturn Limit
Setting
Ä
‘Operating Procedure’
page 236
Use the following procedure to adjust the multiturn limit setting.
1.
Click the Servo Drive Button in the workspace of the Main Window of the Sig-
maWin+.
2. Select Multiturn Limit Setting in the Menu Dialog Box.
ð
The Multiturn Limit Setting Dialog Box will be displayed.
3. Click the Continue Button.

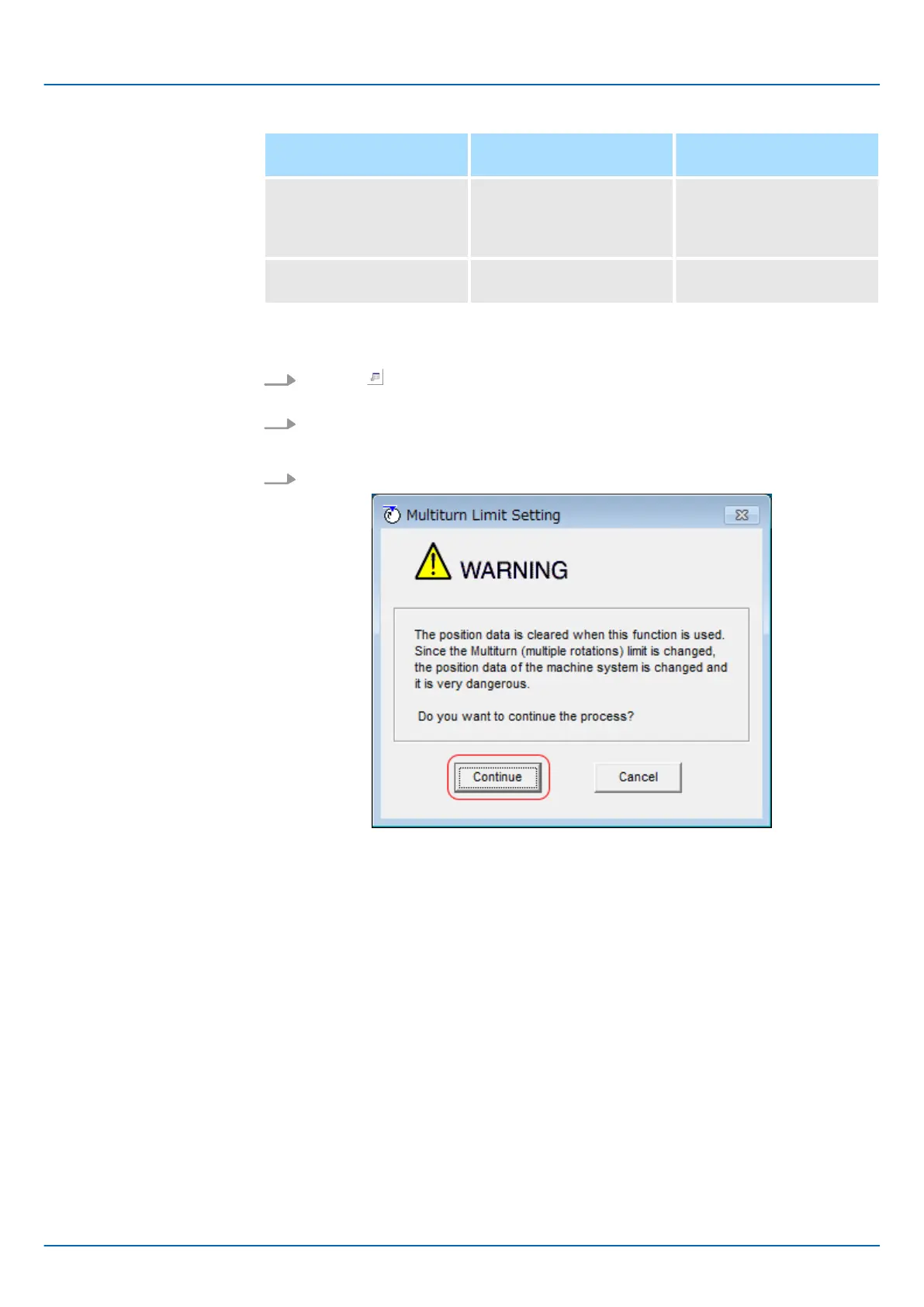

Fig. 173: Multiturn Limit Setting - Warning
ð
Click the Cancel Button to cancel setting the multiturn limit. The Main Window
will return.
Operating Procedure
Sigma-7 Series SERVOPACKs
Application Functions
Absolute Encoders > Multiturn Limit Disagreement Alarm (A.CC0)
