15. Click the Writing Results Button.

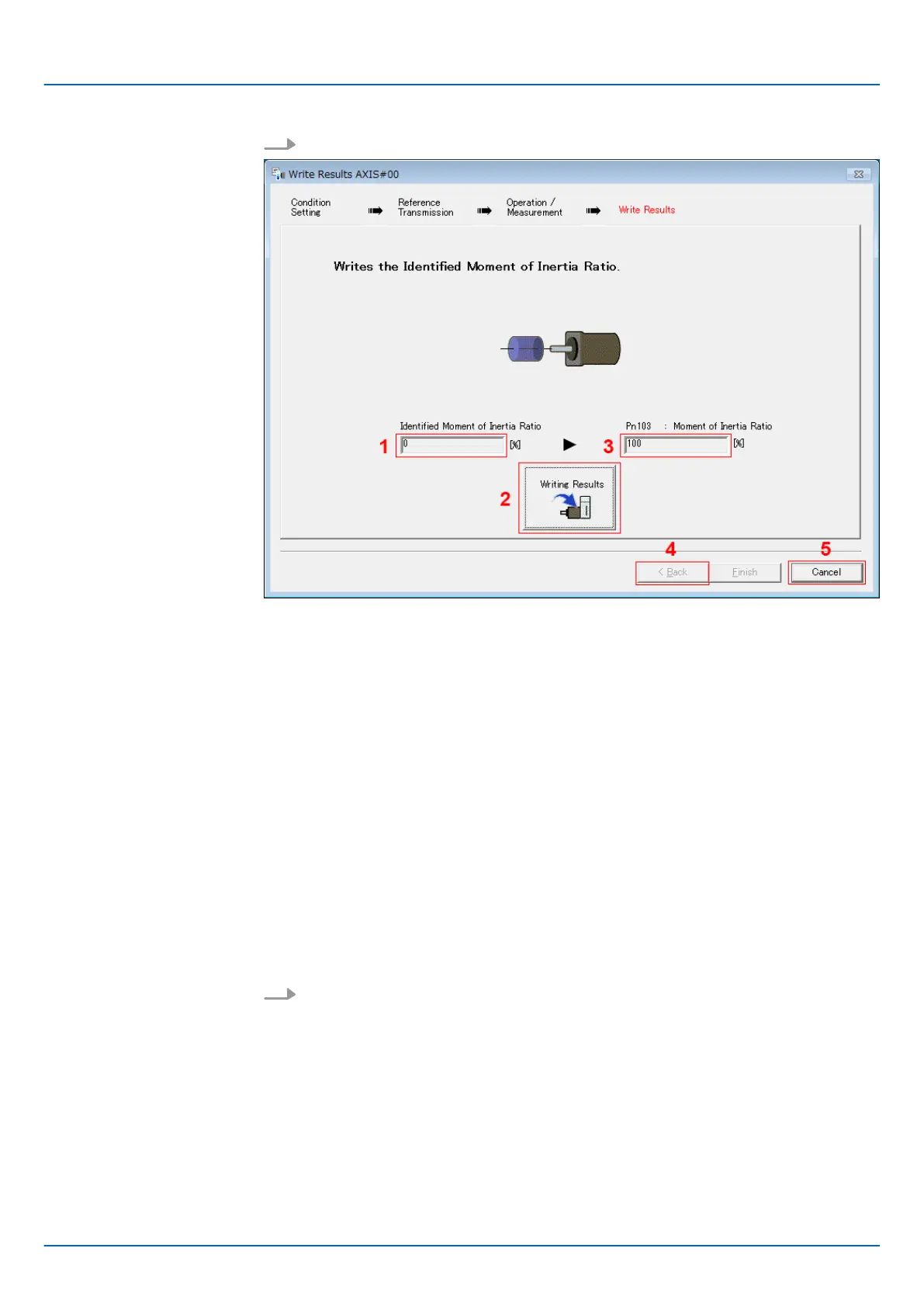

Fig. 235: Tuning - Write Results AXIS#00
ð
1 - Identified Moment of Inertia Ratio Box
The moment of inertia ratio that was found with operation and measurements is
displayed here.
2 - Writing Results Button
If you click this button, Pn103 (Moment of Inertia Ratio) in the SERVOPACK is
set to the value that is displayed for the identified moment of inertia ratio.
3 - Pn103: Moment of Inertia Ratio Box
The value that is set for the parameter is displayed here.
After you click the Writing Results Button, the value that was found with opera-
tion and measurements will be displayed as the new setting.
4 - Back Button
This button is disabled.
5 - Cancel Button
This button will return you to the Tuning Dialog Box.
16. Confirm that the Identified Moment of Inertia Ratio Box and the Pn103: Moment
of Inertia Ratio Box show the same value and then click the Finish Button.
Sigma-7 Series SERVOPACKs
Tuning
Estimating the Moment of Inertia > Operating Procedure
