Imager Preferences
105
Image Cropping
Parameter # 301
SSI # F0h 2Dh
Scan the Enable Image Cropping barcode to crop a captured image to the pixel addresses set in Crop to Pixel
Addresses on page 105. Scan Disable Image Cropping to present the full 1280 x 800 pixels.
Crop to Pixel Addresses
Parameter # 315
SSI # F4h F0h 3Bh (Top)
Parameter # 316
SSI # F4h F0h 3Ch (Left)
Parameter # 317
SSI # F4h F0h 3Dh (Bottom)
Parameter # 318
SSI # F4h F0h 3Eh (Right)
If you enabled Image Cropping, set the pixel addresses from (0,0) to (1279 x 799) to crop to.
Columns are numbered from 0 to 1279, rows from 0 to 799. Specify values for Top, Left, Bottom, and Right, where
Top and Bottom correspond to row pixel addresses, and Left and Right correspond to column pixel addresses. For
example, for a 4 row x 8 column image in the extreme bottom-right section of the image, set the following values:
Top = 796, Bottom = 799, Left = 1272, Right = 1279
To set the pixel addresses, scan each of the following barcodes, and then scan four numeric barcodes from
Numeric Barcodes representing the value. Leading zeros are required. For example, to crop the top pixel address
to 3, scan 0, 0, 0, 3. The defaults are:
Top = 0, Bottom = 799, Left = 0, Right = 1279

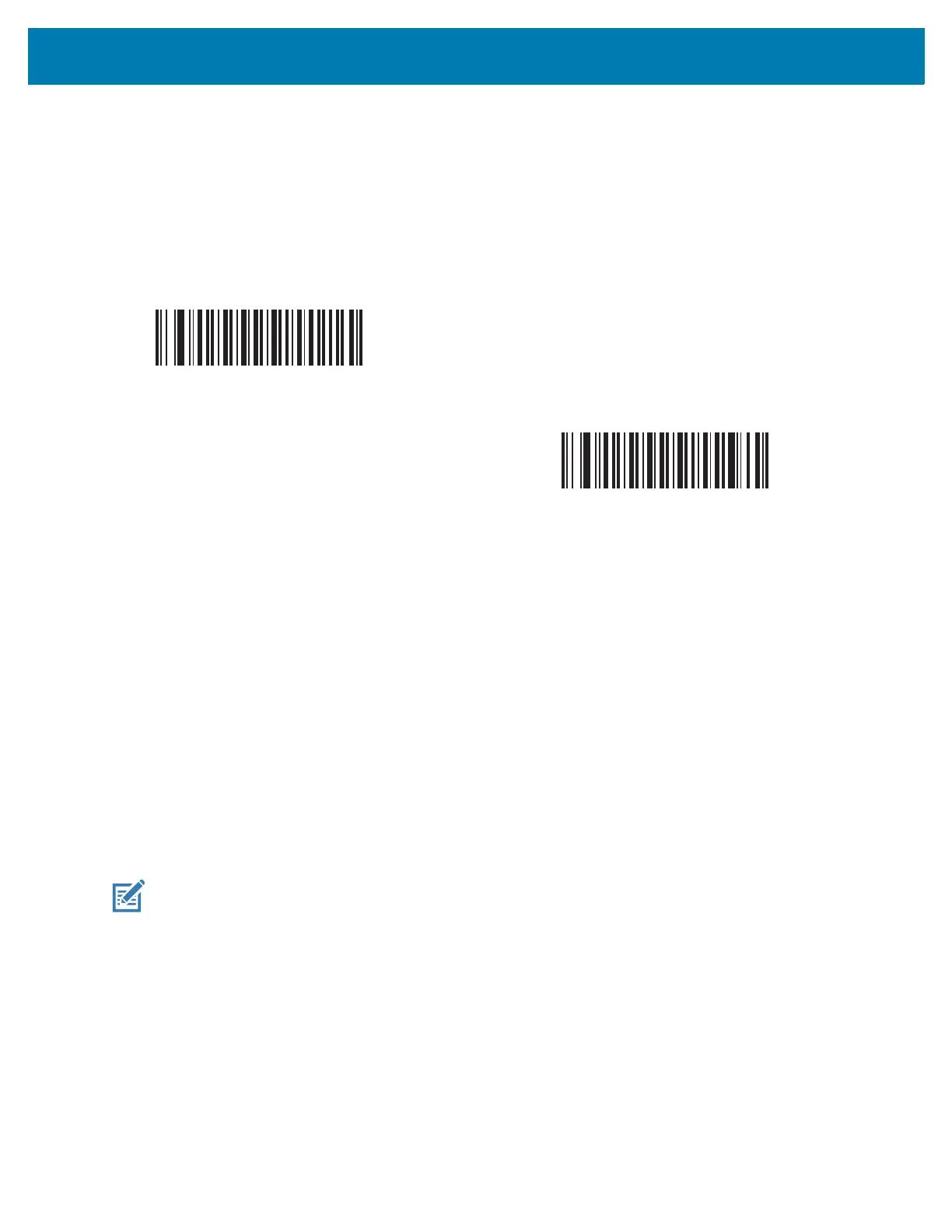

Enable Image Cropping
(1)
*Disable Image Cropping
(Use Full 1280 x 800 Pixels)
(0)
NOTE: The imager has a cropping resolution of 4 pixels. Setting the cropping area to less than 4 pixels (after
resolution adjustment, see Image Size (Number of Pixels) on page 107) transfers the entire image.
