Getting Started
30
Features

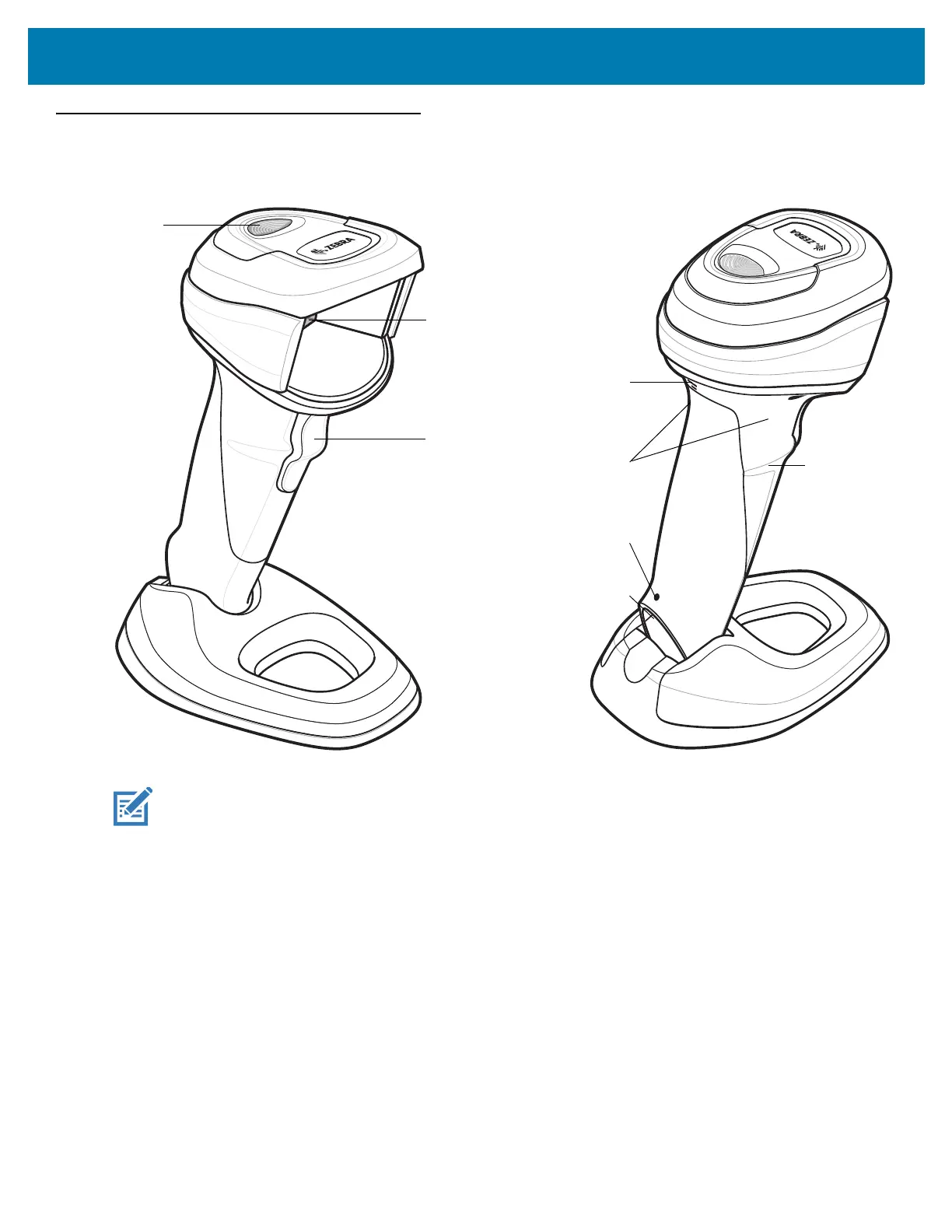

Figure 2
Parts of the Scanner
Scan
Window
Trigger
Speaker
Interface Cable
Port
Hand-held Touch
Zones
(Toggle
Between
Hand-held and
Hands-free Modes)
LED
Cable release
opening
(pinhole)
Finger
Ridge
NOTE
:
The hand-held touch zones a
re touc
h sensitive areas th
at enable the scanner to determine
if it is sitting
on the counter
or picked
up by
the user. To
activate the
touch
zones, fingers must
be placed in
the zone
above the finger ridges on both
sides of the scanner. See
F
igure 11 on page 43
for p
roper finger
placement.
29
31
